LIFT BLOCK ASSY погрузчика на сжиженном газе Hyundai 25/30/33LF-7
LIFT BLOCK ASSY погрузчика на сжиженном газе Hyundai 25/30/33LF-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3A50
Наименование:LIFT BLOCK ASSY
Версия:2014. 4.30 REV.14D

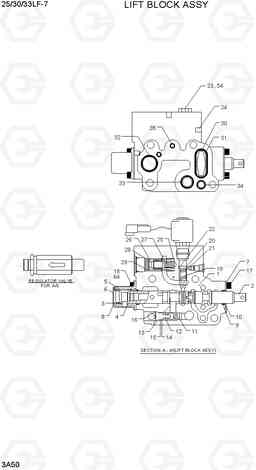

LIFT BLOCK ASSY 25/30/33LF-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | @ | BLOCK-LIFT | 1 | ||
| * | XKAU-00245 | REGULATOR(INCL 25~29) | 1 |
NOT AVAILABLE,33L
|
|
| * | XKAU-00492 | FLOW REGULATOR V/V | 1 |
FOR A/S,33L
|
|
| * | XKAU-00385 | REGULATOR | 1 |
INCL 25~29,25/30L
|
|
| K | XKAU-00291 | лифт блок комплект | 1 |
SEE 3A20
|
|
| K | XKAU-00284 | лифт блок комплект золь | 1 |
SEE 3A20
|
|
| K | XKAU-00308 | лифт блок комплект | 1 |
SEE 3A30
|
|
| K | XKAU-00297 | лифт блок комплект | 1 |
SEE 3A40
|
|
| K | XKAU-00238 | лифт блок комплект золь | 1 |
SEE 3A40
|
|
| K1 | @ | BLOCK-LIFT | 1 | ||
| K10 | @ | RING-BACK UP | 2 | ||
| K11 | @ | INLET-POPPET | 1 | ||
| K12 | @ | SPRING-CHECK | 1 | ||
| K13 | @ | SEAT-CONTROL | 1 | ||
| K14 | @ | O-RING | 1 | ||
| K15 | @ | RING-BACK UP | 1 | ||
| K16 | @ | RING-STOP | 1 | ||
| K2 | @ | SPOOL-LIFT | 1 | ||
| K24 | @ | PLUG | 1 | ||
| K25 | @ | SLEEVE-REG | 1 | ||
| K26 | @ | PISTON-REG | 1 | ||
| K27 | @ | SPRING-REG | 1 | ||
| K28 | @ | RING-SNAP | 1 | ||
| K29 | @ | RING-SNAP | 1 | ||
| K3 | @ | PLUG-LOCK | 1 | ||
| K30 | @ | O-RING | 1 | ||
| K31 | @ | CAGE | 1 | ||
| K32 | @ | O-RING | 1 | ||
| K33 | @ | O-RING | 1 | ||
| K34 | @ | O-RING | 1 | ||
| K35 | @ | O-RING | 4 | ||
| K4 | @ | O-RING | 1 | ||
| K5 | @ | SPRING-RETURN | 1 | ||
| K54 | @ | O-RING | 1 | ||
| K6 | @ | SEAT-SPRING | 2 | ||
| K64 | @ | SCREW-SET | 1 | ||
| K9 | @ | O-RING | 2 | ||
| N17 | XKAU-00251 | Болт | 2 | ||
| N18 | XKAU-00252 | Болт | 2 | ||
| N19 | XKAU-00253 | проверка тарелка | 1 | ||
| N20 | XKAU-00254 | Шайба | 1 | ||
| N21 | XKAU-00255 | Пружина | 1 | ||
| N22 | XKAU-00256 | Кольцо стопорное | 1 | ||
| N23 | XKAU-00074 | заглушка | 1 | ||
| N7 | XKAU-00249 | Пластина | 2 | ||
| N8 | XKAU-00250 | CAP | 1 | ||
| NK | XKAU-00274 | лифт блок комплект золь | 1 |
SEE 3A30
|
