STEERING UNIT погрузчика электрического Hyundai 35B/40B/45B/50B-7
STEERING UNIT погрузчика электрического Hyundai 35B/40B/45B/50B-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3110
Наименование:STEERING UNIT
Версия:

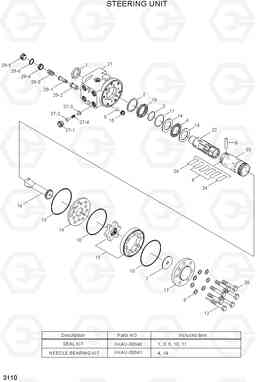

STEERING UNIT 35B/40B/45B/50B-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31HD-04000 | рулевой узел (LS) | 1 | ||
| 12 | @ | ROLLED SCREW | 1 | ||
| 13 | @ | GEROTOR SET | 1 | ||
| 15 | @ | SCREW-BORE | 1 | ||
| 17 | @ | CAP-END | 1 | ||
| 18 | @ | BUSHING-GLAND | 1 | ||
| 19 | @ | PLATE | 1 | ||
| 2 | @ | SEAL-RETAINING | 1 | ||
| 20 | @ | CAP SCREW | 6 | ||
| 21 | @ | HOUSING | 1 | ||
| 22 | @ | SPOOL | 1 | ||
| 23 | @ | SLEEVE | 1 | ||
| 24 | @ | SPRING-PLATE | 2 | ||
| 27 | @ | P-PORT CHECK VALVE | 1 | ||
| 27-1 | @ | PLUG | 1 | ||
| 27-2 | @ | POPPET | 1 | ||
| 27-3 | @ | SPRING SEAT | 1 | ||
| 27-4 | @ | SPRING | 1 | ||
| 29 | @ | RELIEF VALVE | 1 | ||
| 29-1 | @ | SPOOL | 1 | ||
| 29-2 | @ | BUSHING | 1 | ||
| 29-3 | @ | SPRING | 1 | ||
| 29-4 | @ | SPRING SEAT | 1 | ||
| 29-5 | @ | PLUG | 1 | ||
| 29-6 | @ | O-RING | 1 | ||
| 5 | @ | BALL | 1 | ||
| 6 | @ | PIN | 1 | ||
| 7 | @ | SPACER | 1 | ||
| 8 | @ | SPRING-CENTERING | 4 | ||
| K | XKAU-00040 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| K10 | XKAU-00010 | Кольцо уплотнительное (О-кольцо) | 3 | ||
| K11 | XKAU-00011 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| N16 | XKAU-00079 | DRIVE | 1 | ||
| NK1 | XKAU-00075 | Кольцо | 1 | ||
| NK3 | XKAU-00003 | Уплотнительная крышка | 1 | ||
| NK9 | XKAU-00009 | Шайба | 7 | ||
| NS14 | XKAU-00047 | кольцо подшипника | 2 | ||
| S | XKAU-00041 | NEEDLE BEARING KIT | 1 |
SEE ILLUST
|
|
| S4 | XKAU-00004 | Подшипник | 1 |
