OUTER PANEL 2 погрузчика дизельного Hyundai 35/40/45D-9A,50DA-9A
OUTER PANEL 2 погрузчика дизельного Hyundai 35/40/45D-9A,50DA-9A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6030
Наименование:OUTER PANEL 2
Версия:2014. 6.30 REV.14F

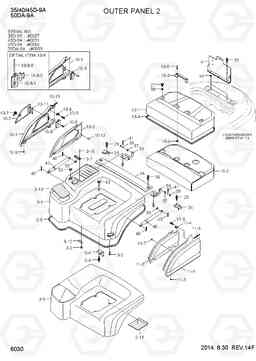

OUTER PANEL 2 35/40/45D-9A,50DA-9A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | 79FV-10303 | SIDE COVER ASSY-RH | 1 |
35D-9A
|
|
| 10 | 79FV-10305 | SIDE COVER ASSY-RH | 1 |
35D-9A
|
|
| 10 | 79FV-10303 | SIDE COVER ASSY-RH | 1 |
40D-9A
|
|
| 10 | 79FV-10305 | SIDE COVER ASSY-RH | 1 |
40D-9A
|
|
| 10 | 79FV-10303 | SIDE COVER ASSY-RH | 1 |
45D-9A
|
|
| 10 | 79FV-10305 | SIDE COVER ASSY-RH | 1 |
45D-9A
|
|
| 10 | 79FV-10303 | SIDE COVER ASSY-RH | 1 |
50DA-9A
|
|
| 10 | 79FV-10305 | SIDE COVER ASSY-RH | 1 |
50DA-9A
|
|
| 10-1 | 79FV-11161 | SIDE COVER WA-RH | 1 |
35D-9A
|
|
| 10-1 | 79FV-11162 | SIDE COVER WA-RH | 1 |
35D-9A
|
|
| 10-1 | 79FV-11161 | SIDE COVER WA-RH | 1 |
40D-9A
|
|
| 10-1 | 79FV-11162 | SIDE COVER WA-RH | 1 |
40D-9A
|
|
| 10-1 | 79FV-11161 | SIDE COVER WA-RH | 1 |
45D-9A
|
|
| 10-1 | 79FV-11162 | SIDE COVER WA-RH | 1 |
45D-9A
|
|
| 10-1 | 79FV-11161 | SIDE COVER WA-RH | 1 |
50DA-9A
|
|
| 10-1 | 79FV-11162 | SIDE COVER WA-RH | 1 |
50DA-9A
|
|
| 10-10 | S791-016100 | GROMMET-PLATE | 1 |
35D-9A
|
|
| 10-10 | S791-016100 | GROMMET-PLATE | 1 |
40D-9A
|
|
| 10-10 | S791-016100 | GROMMET-PLATE | 1 |
45D-9A
|
|
| 10-10 | S791-016100 | GROMMET-PLATE | 1 |
50DA-9A
|
|
| 10-11 | 79FV-90010 | Шайба | 1 |
35D-9A
|
|
| 10-11 | 79FV-90010 | Шайба | 1 |
40D-9A
|
|
| 10-11 | 79FV-90010 | Шайба | 1 |
45D-9A
|
|
| 10-11 | 79FV-90010 | Шайба | 1 |
50DA-9A
|
|
| 10-12 | 77HN-51580 | Болт | 9 |
35D-9A
|
|
| 10-12 | 77HN-51580 | Болт | 9 |
40D-9A
|
|
| 10-12 | 77HN-51580 | Болт | 9 |
45D-9A
|
|
| 10-12 | 77HN-51580 | Болт | 9 |
50DA-9A
|
|
| 10-2 | 79FV-11150 | SIDE COVER-FUEL | 1 | ||
| 10-3 | 79FV-10791 | SPONGE | 1 | ||
| 10-4 | 77HN-19230 | HOLDER | 1 | ||
| 10-5 | S035-051526 | Болт | 2 | ||
| 10-6 | FAC0700770 | Уплотнительная втулка | 2 | ||
| 10-7 | 79FV-10980 | KEY-LOCK | 1 | ||
| 10-8 | 79FV-10671 | HINGE ASSY | 1 |
35D-9A
|
|
| 10-8 | 79FV-10672 | HINGE ASSY | 1 |
35D-9A
|
|
| 10-8 | 79FV-10671 | HINGE ASSY | 1 |
40D-9A
|
|
| 10-8 | 79FV-10672 | HINGE ASSY | 1 |
40D-9A
|
|
| 10-8 | 79FV-10671 | HINGE ASSY | 1 |
45D-9A
|
|
| 10-8 | 79FV-10672 | HINGE ASSY | 1 |
45D-9A
|
|
| 10-8 | 79FV-10671 | HINGE ASSY | 1 |
50DA-9A
|
|
| 10-8 | 79FV-10672 | HINGE ASSY | 1 |
50DA-9A
|
|
| 10-9 | S035-061526 | Болт | 4 | ||
| 11 | 79FV-10313 | SIDE COVER ASSY-LH | 1 |
35D-9A
|
|
| 11 | 79FV-10315 | SIDE COVER ASSY-LH | 1 |
35D-9A
|
|
| 11 | 79FV-10313 | SIDE COVER ASSY-LH | 1 |
40D-9A
|
|
| 11 | 79FV-10315 | SIDE COVER ASSY-LH | 1 |
40D-9A
|
|
| 11 | 79FV-10313 | SIDE COVER ASSY-LH | 1 |
45D-9A
|
|
| 11 | 79FV-10315 | SIDE COVER ASSY-LH | 1 |
45D-9A
|
|
| 11 | 79FV-10313 | SIDE COVER ASSY-LH | 1 |
50DA-9A
|
|
| 11 | 79FV-10315 | SIDE COVER ASSY-LH | 1 |
50DA-9A
|
|
| 11-1 | 79FV-11171 | SIDE COVER WA-LH | 1 |
35D-9A
|
|
| 11-1 | 79FV-11172 | SIDE COVER WA-LH | 1 |
35D-9A
|
|
| 11-1 | 79FV-11171 | SIDE COVER WA-LH | 1 |
40D-9A
|
|
| 11-1 | 79FV-11172 | SIDE COVER WA-LH | 1 |
40D-9A
|
|
| 11-1 | 79FV-11171 | SIDE COVER WA-LH | 1 |
45D-9A
|
|
| 11-1 | 79FV-11172 | SIDE COVER WA-LH | 1 |
45D-9A
|
|
| 11-1 | 79FV-11171 | SIDE COVER WA-LH | 1 |
50DA-9A
|
|
| 11-1 | 79FV-11172 | SIDE COVER WA-LH | 1 |
50DA-9A
|
|
| 11-2 | 79FV-10781 | SPONGE | 1 | ||
| 11-3 | FAC0700770 | Уплотнительная втулка | 2 | ||
| 11-4 | 77HN-19270 | HOLDER | 1 | ||
| 11-5 | S035-051526 | Болт | 2 | ||
| 11-6 | S791-016100 | GROMMET-PLATE | 1 |
35D-9A
|
|
| 11-6 | S791-016100 | GROMMET-PLATE | 1 |
40D-9A
|
|
| 11-6 | S791-016100 | GROMMET-PLATE | 1 |
45D-9A
|
|
| 11-6 | S791-016100 | GROMMET-PLATE | 1 |
50DA-9A
|
|
| 11-7 | 77HN-51580 | Болт | 9 |
35D-9A
|
|
| 11-7 | 77HN-51580 | Болт | 9 |
40D-9A
|
|
| 11-7 | 77HN-51580 | Болт | 9 |
45D-9A
|
|
| 11-7 | 77HN-51580 | Болт | 9 |
50DA-9A
|
|
| 13 | 79FV-10012 | SUB BONNET ASSY | 1 | ||
| 13-1 | 79FV-10121 | SUB BONNET | 1 | ||
| 13-2 | 71FQ-10650 | Ручка в сборе | 1 | ||
| 13-3 | S773-026500 | Уплотнитель | 1 | ||
| 13-4 | S161-060256 | Болт | 2 | ||
| 13-5 | S205-06100B | Гайка | 2 | ||
| 13-6 | 79FV-10771 | SPONGE | 1 | ||
| 14 | 79FV-30052 | CROSS BEAM | 1 | ||
| 23 | 79FV-10991 | BRACKET-HOLDER | 1 | ||
| 24 | 79FV-11131 | BRACKET-HOLDER(LH) | 1 | ||
| 27 | FBC0900110-01 | KNOB | 2 | ||
| 29 | S035-062026 | Болт | 4 | ||
| 3 | 79FV-10204 | BONNET ASSY | 1 | ||
| 3-1 | 79FV-10212 | BONNET | 1 | ||
| 3-10 | 9055000309 | RIVET | 2 | ||
| 3-11 | 79FV-19290 | SPONGE | 1 | ||
| 3-12 | F12100190 | CUSHION | 1 | ||
| 3-13 | 79FV-19410 | SPONGE | 1 | ||
| 3-2 | 73U2-40550 | BUMPER-SPRING | 1 | ||
| 3-3 | S132-051656 | SCREW-W/WASHER | 2 | ||
| 3-4 | 79FV-10241 | STRIKER | 1 | ||
| 3-5 | S772-042000 | Уплотнитель | 1 | ||
| 3-6 | S035-081526 | Болт | 2 | ||
| 3-7 | 71FH-10181 | Скоба (хомут) | 1 | ||
| 3-9 | 79FV-10841 | SPONGE | 1 | ||
| 32 | S035-082526 | Болт | 2 |
KOREA
|
|
| 36 | S035-081526 | Болт | 4 | ||
| 37 | S403-12200B | Плоская шайба | 2 | ||
| 38 | 71FE-10170 | резинок | 2 | ||
| 39 | S491-120702 | Палец | 2 | ||
| 4 | 79FV-19300 | PLATE-LICENSE | 1 |
KOREA
|
|
| 40 | S501-100002 | контактный самоблокирующиеся | 4 | ||
| 41 | S501-120002 | контактный самоблокирующиеся | 2 | ||
| 43 | S880-140030 | Уплотнительная втулка | 1 | ||
| 44 | 71B1-31210 | CAP | 2 |
W/O KOREA
|
|
| 46 | 71FG-10070 | GAS SPRING | 1 | ||
| 47 | 77HN-10260 | газовая пружина в сборе | 1 | ||
| 50 | 79FV-10193 | HINGE BRACKET-LH | 1 | ||
| 51 | 79FV-10183 | HINGE BRACKET-RH | 1 | ||
| 52 | S661-260300 | Крышка резиновая | 1 | ||
| 55 | S403-08200B | Плоская шайба | 4 |
