Каталог запчастей
-
Hyundai
-
35/40/45D-7E,50D-7AE
- FORK & EXT FORK (C-III, BOLZONI)

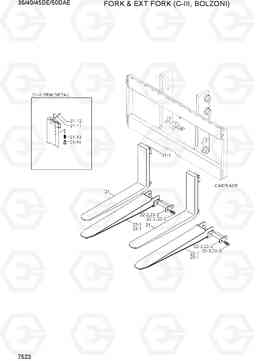

FORK & EXT FORK (C-III, BOLZONI) погрузчика дизельного Hyundai 35/40/45D-7E,50D-7AE
FORK & EXT FORK (C-III, BOLZONI) погрузчика дизельного Hyundai 35/40/45D-7E,50D-7AE со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7523
Наименование:FORK & EXT FORK (C-III, BOLZONI)
Версия:
FORK & EXT FORK (C-III, BOLZONI) 35/40/45D-7E,50D-7AE
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 21 | S173896-02G | FORK ASSY(1070) | 2 |
3.5TON
|
|
| 21 | S173896-03G | FORK ASSY(1220) | 2 |
3.5TON
|
|
| 21 | S173896-04G | FORK ASSY(1370) | 2 |
3.5TON
|
|
| 21 | S173896-05G | FORK ASSY(1520) | 2 |
3.5TON
|
|
| 21 | S173896-06G | FORK ASSY(1670) | 2 |
3.5TON
|
|
| 21 | S173896-07G | FORK ASSY(1820) | 2 |
3.5TON
|
|
| 21 | S173896-11G | FORK ASSY(1970) | 2 |
3.5TON
|
|
| 21 | S173896-12G | FORK ASSY(2120) | 2 |
3.5TON
|
|
| 21 | S173896-13G | FORK ASSY(2400) | 2 |
3.5TON
|
|
| 21 | F13710010G | FORK ASSY(1070) | 2 |
4.0/4.5TON
|
|
| 21 | F13710020G | FORK ASSY(1220) | 2 |
4.0/4.5TON,S
|
|
| 21 | F13710030G | FORK ASSY(1370) | 2 |
4.0/4.5TON
|
|
| 21 | F13710040G | FORK ASSY(1520) | 2 |
4.0/4.5TON
|
|
| 21 | F13710050G | FORK ASSY(1670) | 2 |
4.0/4.5TON
|
|
| 21 | F13710060G | FORK ASSY(1820) | 2 |
4.0/4.5TON
|
|
| 21 | F13710065G | FORK ASSY(1970) | 2 |
4.0/4.5TON
|
|
| 21 | F13710070G | FORK ASSY(2120) | 2 |
4.0/4.5TON
|
|
| 21 | F13710080G | FORK ASSY(2400) | 2 |
4.0/4.5TON
|
|
| 21-1 | H300 | PIN KIT | 1 | ||
| 22 | 69FV-83010 | доб вилка в сборе (1600L) | 2 |
3.5TON
|
|
| 22 | 69FV-83020 | доб вилка в сборе (1800L) | 2 |
3.5TON
|
|
| 22 | 69FV-83030 | доб вилка в сборе (2000L) | 2 |
3.5TON
|
|
| 22-1 | 69FV-83100 | доб вилка (1600L) | 1 |
3.5TON
|
|
| 22-1 | 69FV-83200 | доб вилка (1800L) | 1 |
3.5TON
|
|
| 22-1 | 69FV-83300 | доб вилка (2000L) | 1 |
3.5TON
|
|
| 22-2 | 69FG-83500 | LOCKING PIN | 1 |
3.5TON
|
|
| 22-3 | S037-102022 | Болт | 1 |
3.5TON
|
|
| 23 | 69FV-84010 | доб вилка в сборе (1800L) | 2 |
4.0/4.5TON
|
|
| 23 | 69FV-84020 | доб вилка в сборе (2000L) | 2 |
4.0/4.5TON
|
|
| 23 | 69FV-84030 | доб вилка в сборе (2200L) | 2 |
4.0/4.5TON
|
|
| 23-1 | 69FV-84100 | доб вилка (1800L) | 1 |
4.0/4.5TON
|
|
| 23-1 | 69FV-84200 | доб вилка (2000L) | 1 |
4.0/4.5TON
|
|
| 23-1 | 69FV-84300 | доб вилка (2200L) | 1 |
4.0/4.5TON
|
|
| 23-2 | 69FV-84500 | LOCKING PIN | 1 |
4.0/4.5TON
|
|
| 23-3 | S037-102022 | Болт | 1 |
4.0/4.5TON
|
|
| N21-11 | H501 | KNOB | 1 | ||
| N21-12 | H502 | SPRING PIN | 1 | ||
| N21-13 | H503 | Пружина | 1 | ||
| N21-14 | H505 | Палец | 1 |
