Каталог запчастей
-
Hyundai
-
35/40/45/50L-7A
- O.H.G TOTAL SUB ASSY
O.H.G TOTAL SUB ASSY погрузчика на сжиженном газе Hyundai 35/40/45/50L-7A
O.H.G TOTAL SUB ASSY погрузчика на сжиженном газе Hyundai 35/40/45/50L-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6050
Наименование:O.H.G TOTAL SUB ASSY
Версия:2014. 7.31 REV.14G

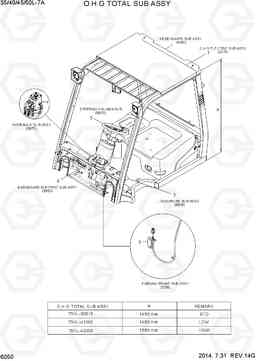

O.H.G TOTAL SUB ASSY 35/40/45/50L-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 75HL-30011 | o.h.g. Общая югу сборе | 1 |
35,SEE ILLUST
|
|
| * | 75HL-30012 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-30013 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-30014 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-30015 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-30011 | o.h.g. Общая югу сборе | 1 |
40,SEE ILLUST
|
|
| * | 75HL-30012 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-30013 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-30014 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-30015 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-30011 | o.h.g. Общая югу сборе | 1 |
45,SEE ILLUST
|
|
| * | 75HL-30012 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-30013 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-30014 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-30015 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-30011 | o.h.g. Общая югу сборе | 1 |
50,SEE ILLUST
|
|
| * | 75HL-30012 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-30013 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-30014 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-30015 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-41001 | o.h.g. Общая югу сборе | 1 |
35,SEE ILLUST
|
|
| * | 75HL-41002 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-41003 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-41004 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-41005 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-41001 | o.h.g. Общая югу сборе | 1 |
40,SEE ILLUST
|
|
| * | 75HL-41002 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-41003 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-41004 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-41005 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-41001 | o.h.g. Общая югу сборе | 1 |
45,SEE ILLUST
|
|
| * | 75HL-41002 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-41003 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-41004 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-41005 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-41001 | o.h.g. Общая югу сборе | 1 |
50,SEE ILLUST
|
|
| * | 75HL-41002 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-41003 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-41004 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-41005 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-42001 | o.h.g. Общая югу сборе | 1 |
35,SEE ILLUST
|
|
| * | 75HL-42002 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-42003 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-42004 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-42005 | O.H.G. TOTAL SUB ASSY | 1 |
35,SEE ILLUST
|
|
| * | 75HL-42001 | o.h.g. Общая югу сборе | 1 |
40,SEE ILLUST
|
|
| * | 75HL-42002 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-42003 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-42004 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-42005 | O.H.G. TOTAL SUB ASSY | 1 |
40,SEE ILLUST
|
|
| * | 75HL-42001 | o.h.g. Общая югу сборе | 1 |
45,SEE ILLUST
|
|
| * | 75HL-42002 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-42003 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-42004 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-42005 | O.H.G. TOTAL SUB ASSY | 1 |
45,SEE ILLUST
|
|
| * | 75HL-42001 | o.h.g. Общая югу сборе | 1 |
50,SEE ILLUST
|
|
| * | 75HL-42002 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-42003 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-42004 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| * | 75HL-42005 | O.H.G. TOTAL SUB ASSY | 1 |
50,SEE ILLUST
|
|
| 1 | @ | HEAD GUARD SUB ASSY | 1 |
SEE 6060
|
|
| 2 | @ | DASHBOARD SUB ASSY | 1 |
SEE 6035
|
|
| 3 | @ | STEERING COLUMN ASSY | 1 |
SEE 5030
|
|
| 4 | @ | STEERING SUB ASSY | 1 |
SEE 3075
|
|
| 5 | @ | PARKING BRAKE SUB ASSY | 1 |
SEE 5050
|
|
| 6 | @ | DASHBOARD ELEC SUB | 1 |
SEE 2050
|
|
| 7 | @ | ELEC SUB ASSY-OHG | 1 |
SEE 2070
|
