CABLE(NON-UL,UL-ES) погрузчика электрического Hyundai 40/45/50B-9
CABLE(NON-UL,UL-ES) погрузчика электрического Hyundai 40/45/50B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1040
Наименование:CABLE(NON-UL,UL-ES)
Версия:2013. 10.31 REV.13K

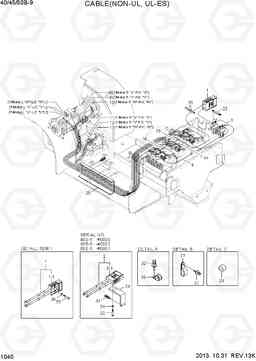

CABLE(NON-UL,UL-ES) 40/45/50B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 21B3-96012 | CABLE-BATTERY | 1 |
40B-9
|
|
| 1 | 21B3-96013 | BATTERY CABLE | 1 |
40B-9
|
|
| 1 | 21B3-96012 | CABLE-BATTERY | 1 |
45B-9
|
|
| 1 | 21B3-96013 | BATTERY CABLE | 1 |
45B-9
|
|
| 1 | 21B3-96012 | CABLE-BATTERY | 1 |
50B-9
|
|
| 1 | 21B3-96013 | BATTERY CABLE | 1 |
50B-9
|
|
| 1-1 | 21FH-81080 | Разъем sbe320 | 1 | ||
| 10 | 21B3-96111 | CABLE | 1 | ||
| 11 | 21B3-96121 | CABLE | 1 | ||
| 12 | 21B3-96131 | CABLE | 1 | ||
| 13 | 21B3-96141 | CABLE | 1 | ||
| 14 | 21B3-96151 | CABLE | 1 |
NON-UL,UL-E
|
|
| 15 | 21B3-96161 | CABLE | 1 | ||
| 16 | 21B3-96180 | CABLE | 1 | ||
| 2 | 21B3-96172 | CABLE-BATTERY | 1 |
NON-SBR,40B-9
|
|
| 2 | 21B3-96172 | CABLE-BATTERY | 1 |
NON-SBR,45B-9
|
|
| 2 | 21B3-96172 | CABLE-BATTERY | 1 |
NON-SBR,50B-9
|
|
| 2-1 | 21FH-81080 | Разъем sbe320 | 1 |
40B-9
|
|
| 2-1 | 21FH-81080 | Разъем sbe320 | 1 |
45B-9
|
|
| 2-1 | 21FH-81080 | Разъем sbe320 | 1 |
50B-9
|
|
| 22 | 21B3-92110 | BUSBAR | 1 |
40B-9
|
|
| 22 | 21B3-92320 | BUSBAR | 1 |
40B-9
|
|
| 22 | 21B3-92110 | BUSBAR | 1 |
45B-9
|
|
| 22 | 21B3-92320 | BUSBAR | 1 |
45B-9
|
|
| 22 | 21B3-92110 | BUSBAR | 1 |
50B-9
|
|
| 22 | 21B3-92320 | BUSBAR | 1 |
50B-9
|
|
| 24 | 21B3-92040 | BRACKET-CONNECTOR | 1 |
NON-SBR,40
|
|
| 24 | 21B3-92040 | BRACKET-CONNECTOR | 1 |
NON-SBR,45
|
|
| 24 | 21B3-92040 | BRACKET-CONNECTOR | 1 |
NON-SBR,50
|
|
| 25 | 21B3-92191 | COVER-CABLE | 1 |
40B-9
|
|
| 25 | 21B3-92192 | COVER-CABLE | 1 |
40B-9
|
|
| 25 | 21B3-92191 | COVER-CABLE | 1 |
45B-9
|
|
| 25 | 21B3-92192 | COVER-CABLE | 1 |
45B-9
|
|
| 25 | 21B3-92191 | COVER-CABLE | 1 |
50B-9
|
|
| 25 | 21B3-92192 | COVER-CABLE | 1 |
50B-9
|
|
| 26 | 31L7-10220 | Зажим трубки | 2 | ||
| 27 | 35HH-20090 | Зажим | 2 | ||
| 28 | 21B3-92150 | FILTER-TOROID | 9 |
CE OPTION
|
|
| 3 | 21B3-96041 | CABLE | 1 |
NON-UL,UL-E,40
|
|
| 3 | 21B3-96042 | CABLE | 1 |
NON-UL,E,ES,40
|
|
| 3 | 21B3-96041 | CABLE | 1 |
NON-UL,UL-E,45
|
|
| 3 | 21B3-96042 | CABLE | 1 |
NON-UL,E,ES,45
|
|
| 3 | 21B3-96041 | CABLE | 1 |
NON-UL,UL-E,50
|
|
| 3 | 21B3-96042 | CABLE | 1 |
NON-UL,E,ES,50
|
|
| 31 | S035-082026 | Болт | 5 |
40B-9
|
|
| 31 | S035-082026 | Болт | 3 |
40B-9
|
|
| 31 | S035-082026 | Болт | 5 |
45B-9
|
|
| 31 | S035-082026 | Болт | 3 |
45B-9
|
|
| 31 | S035-082026 | Болт | 5 |
50B-9
|
|
| 31 | S035-082026 | Болт | 3 |
50B-9
|
|
| 32 | S037-121526 | Болт | 2 | ||
| 33 | S161-060406 | Винт с крестообразным шлицем | 4 | ||
| 34 | S411-060006 | Шайба пружинная | 4 | ||
| 35 | S791-030010 | GROMMET-PLATE | 1 |
40B-9
|
|
| 35 | S791-030010 | GROMMET-PLATE | 2 |
40B-9
|
|
| 35 | S791-030010 | GROMMET-PLATE | 1 |
45B-9
|
|
| 35 | S791-030010 | GROMMET-PLATE | 2 |
45B-9
|
|
| 35 | S791-030010 | GROMMET-PLATE | 1 |
50B-9
|
|
| 35 | S791-030010 | GROMMET-PLATE | 2 |
50B-9
|
|
| 4 | 21B3-96051 | CABLE | 1 |
NON-UL,UL-E,ES
|
|
| 5 | 21B3-96061 | CABLE | 1 | ||
| 6 | 21B3-96071 | CABLE | 1 | ||
| 7 | 21B3-96081 | CABLE | 1 | ||
| 8 | 21B3-96091 | CABLE | 1 | ||
| 9 | 21B3-96101 | CABLE | 1 |
