FORK & EXTENSION FORK (BOLZONI) погрузчика дизельного Hyundai 50/60/70D-7E ACE
FORK & EXTENSION FORK (BOLZONI) погрузчика дизельного Hyundai 50/60/70D-7E ACE со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7525
Наименование:FORK & EXTENSION FORK (BOLZONI)
Версия:

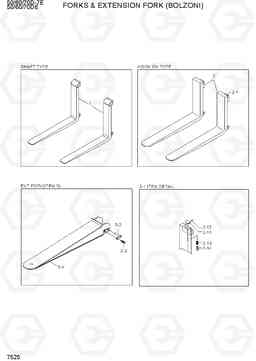

FORK & EXTENSION FORK (BOLZONI) 50/60/70D-7E ACE
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 61F8-70010G | FORK ASSY(STD.1200) | 2 |
5TON,SHAFT
|
|
| 1 | 61F8-70020G | FORK ASSY(1350) | 2 |
5TON,SHAFT
|
|
| 1 | 61F8-70030G | FORK ASSY(1500) | 2 |
5TON,SHAFT
|
|
| 1 | 61F8-70040G | FORK ASSY(1800) | 2 |
5TON,SHAFT
|
|
| 1 | 61F8-70050G | FORK ASSY(2000) | 2 |
5TON,SHAFT
|
|
| 1 | 61F8-70070G | FORK ASSY(2400) | 2 |
5TON,SHAFT
|
|
| 1 | 61F8-70100G | FORK ASSY(STD.1200) | 2 |
6~7TON,SHAFT
|
|
| 1 | 61F8-70110G | FORK ASSY(1350) | 2 |
6~7TON,SHAFT
|
|
| 1 | 61F8-70121G | FORK ASSY(1500) | 2 |
6~7TON,SHAFT,70T
|
|
| 1 | 61F8-70131G | FORK ASSY(1800) | 2 |
6~7TON,SHAFT,70T
|
|
| 1 | 61F8-70141G | FORK ASSY(2000) | 2 |
6~7TON,SHAFT,70T
|
|
| 1 | 61F8-70161G | FORK ASSY(2400) | 2 |
6~7TON,SHAFT,70T
|
|
| 2 | F14710011G | FORK ASSY(1200) | 2 |
5TON,HOOK
|
|
| 2 | F14710051G | FORK ASSY(1350) | 2 |
5TON,HOOK
|
|
| 2 | F14710021G | FORK ASSY(1500) | 2 |
5TON,HOOK
|
|
| 2 | F14710031G | FORK ASSY(1800) | 2 |
5TON,HOOK
|
|
| 2 | 61FQ-50050G | FORK ASSY(2000) | 2 |
5TON,HOOK
|
|
| 2 | 61FQ-50060G | FORK ASSY(2400) | 2 |
5TON,HOOK
|
|
| 2 | F14710111G | FORK ASSY(STD,1200) | 2 |
6~7TON,HOOK
|
|
| 2 | F14710171G | FORK ASSY(1350) | 2 |
6~7TON,HOOK
|
|
| 2 | F14710121G | FORK ASSY(1500) | 2 |
6~7TON,HOOK
|
|
| 2 | F14710131G | FORK ASSY(1800) | 2 |
6~7TON,HOOK
|
|
| 2 | F14710151G | FORK ASSY(2000) | 2 |
6~7TON,HOOK
|
|
| 2 | F14710161G | FORK ASSY(2400) | 2 |
6~7TON,HOOK
|
|
| 2-1 | H400 | PIN KIT | 1 | ||
| 2-13 | H506 | Пружина | 1 | ||
| 2-14 | H507 | Палец | 1 | ||
| 3 | 69FQ-85010 | доб вилка в сборе (1800L) | 2 |
5TON
|
|
| 3 | 69FQ-85020 | доб вилка в сборе (2000L) | 2 |
5TON
|
|
| 3 | 69FQ-85030 | доб вилка в сборе (2200L) | 2 |
5TON
|
|
| 3 | 69FQ-85040 | доб вилка в сборе (2300l) | 2 |
5TON
|
|
| 3 | 69FQ-87010 | доб вилка в сборе (1800L) | 2 |
6~7TON,SHAFT
|
|
| 3 | 69FQ-87020 | доб вилка в сборе (2000L) | 2 |
6~7TON,SHAFT
|
|
| 3 | 69FQ-89030 | доб вилка в сборе (2200L) | 2 |
6~7TON,SHAFT,70T
|
|
| 3 | 69FQ-89040 | доб вилка в сборе (2300l) | 2 |
6~7TON,SHAFT,70T
|
|
| 3 | 69FQ-88010 | доб вилка в сборе (1800L) | 2 |
6~7TON,HOOK
|
|
| 3 | 69FQ-88020 | доб вилка в сборе (2200L) | 2 |
6~7TON,HOOK
|
|
| 3 | 69FQ-88030 | доб вилка в сборе (2000L) | 2 |
6~7TON,HOOK
|
|
| 3 | 69FQ-88040 | доб вилка в сборе (2300l) | 2 |
6~7TON,HOOK
|
|
| 3-2 | 69FV-84500 | LOCKING PIN | 1 |
5TON
|
|
| 3-2 | 69FQ-87500 | LOCKING PIN | 1 |
6~7TON,SHAFT
|
|
| 3-2 | 69FV-84500 | LOCKING PIN | 1 |
6~7TON,HOOK
|
|
| 3-3 | S037-102022 | Болт | 1 |
5TON
|
|
| 3-3 | S037-102022 | Болт | 1 |
6~7TON,SHAFT
|
|
| 3-3 | S037-102022 | Болт | 1 |
6~7TON,HOOK
|
|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| N2-11 | H501 | KNOB | 1 | ||
| N2-12 | H502 | SPRING PIN | 1 | ||
| N3-1 | 69FQ-85100 | доб вилка (1800L) | 1 |
5TON
|
|
| N3-1 | 69FQ-85200 | доб вилка (2000L) | 1 |
5TON
|
|
| N3-1 | 69FQ-85300 | доб вилка (2200L) | 1 |
5TON
|
|
| N3-1 | 69FQ-85400 | доб вилка (2300l) | 1 |
5TON
|
|
| N3-1 | 69FQ-87100 | доб вилка (1800L) | 1 |
6~7TON,SHAFT
|
|
| N3-1 | 69FQ-87200 | доб вилка (2000L) | 1 |
6~7TON,SHAFT
|
|
| N3-1 | 69FQ-89300 | Вилка расширение | 1 |
6~7TON,SHAFT,70T
|
|
| N3-1 | 69FQ-89400 | Вилка расширение | 1 |
6~7TON,SHAFT,70T
|
|
| N3-1 | 69FQ-88100 | доб вилка (1800L) | 1 |
6~7TON,HOOK
|
|
| N3-1 | 69FQ-88300 | доб вилка (2000L) | 1 |
6~7TON,HOOK
|
|
| N3-1 | 69FQ-88200 | доб вилка (2200L) | 1 |
6~7TON,HOOK
|
|
| N3-1 | 69FQ-88400 | доб вилка (2300l) | 1 |
6~7TON,HOOK
|
