Гидронасос (основной насос) погрузчика дизельного Hyundai 50/60/70DS-7E
Гидронасос (основной насос) погрузчика дизельного Hyundai 50/60/70DS-7E со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3A10
Наименование:HYDRAULIC PUMP
Версия:

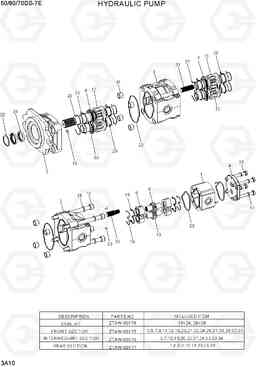

HYDRAULIC PUMP 50/60/70DS-7E
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| F | ZTAW-00175 | FRONT SECTION | 1 | ||
| I | ZTAW-00176 | Int. раздел | 1 | ||
| K | ZTAW-00178 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 | ||
| R | ZTAW-00177 | REAR SECTION | 1 | ||
| * | 31FQ-01100 | гидрокси насос | 1 | ||
| 14 | ZTAW-00173 | Болт | 4 | ||
| 15 | ZTAW-00174 | Болт | 4 | ||
| 18 | ZTAW-00038 | Шайба | 4 | ||
| F11 | @ | SHAFT-DRIVE | 1 | ||
| F12 | @ | GEAR-DRIVEN | 2 | ||
| F16 | @ | SCREW-GRUB | 1 | ||
| F25 | @ | RING | 1 | ||
| F29 | @ | BEARING-SLEEVE | 7 | ||
| F3 | @ | BODY | 1 | ||
| F30 | @ | BEARING-SLEEVE | 1 | ||
| F31 | @ | HUB | 1 | ||
| F34 | @ | BUSHING-STEEL | 8 | ||
| F5 | @ | COVER-FRONT | 1 | ||
| F7 | @ | PLATE-THRUST | 3 | ||
| F8 | @ | PLATE-THRUST | 1 | ||
| I13 | @ | SHAFT-DRIVE | 1 | ||
| I2 | @ | BODY | 1 | ||
| I32 | @ | HUB | 1 | ||
| I33 | @ | PIN-DOWEL | 4 | ||
| K19 | @ | SEAL | 2 | ||
| K20 | @ | SEAL | 3 | ||
| K21 | @ | SEAL | 1 | ||
| K22 | @ | STANDARD SEAL | 2 | ||
| K23 | @ | SEAL | 2 | ||
| K24 | @ | SEAL-SHAFT | 2 | ||
| K26 | @ | RING-BACK UP | 2 | ||
| K27 | @ | ANTIEXTRUSION | 3 | ||
| K28 | @ | ANTIEXTRUSION | 1 | ||
| N17 | ZTAW-00014 | Шайба | 4 | ||
| R1 | @ | BODY | 1 | ||
| R10 | @ | GEAR-DRIVEN | 1 | ||
| R4 | @ | COVER-REAR | 1 | ||
| R6 | @ | PLATE-THRUST | 2 | ||
| R9 | @ | GEAR-DRIVE | 1 |
