Каталог запчастей
-
Hyundai
-
DX20/25/30
- ELECTRIC PARTS 1
ELECTRIC PARTS 1 погрузчика дизельного Hyundai DX20/25/30
ELECTRIC PARTS 1 погрузчика дизельного Hyundai DX20/25/30 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8010
Наименование:ELECTRIC PARTS 1
Версия:

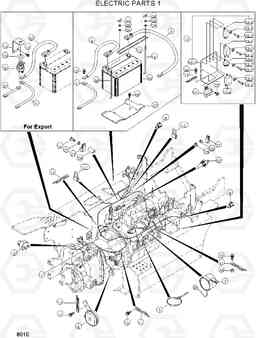

ELECTRIC PARTS 1 DX20/25/30
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 21FA-10021 | Электропроводка на раму | 1 | ||
| 1-1 | S849-110000 | FUSIBLE LINK | 1 | ||
| 1-2 | S849-180000 | FUSIBLE LINK | 1 | ||
| 10 | 21E6-20270 | Батарея аккумуляторная | 1 | ||
| 11 | S593-000902 | клип жгут | 5 | ||
| 13 | 21FA-20110 | RELAY BOARD ASS'Y | 1 |
DX20
|
|
| 13 | 21FA-20110 | RELAY BOARD ASS'Y | 1 |
DX20
|
|
| 13 | 21FA-20110 | RELAY BOARD ASS'Y | 1 |
DX25
|
|
| 13 | 21FA-20110 | RELAY BOARD ASS'Y | 1 |
DX25
|
|
| 13 | 21FA-20110 | RELAY BOARD ASS'Y | 1 |
DX30
|
|
| 13 | 21FA-20110 | RELAY BOARD ASS'Y | 1 |
DX30
|
|
| 13-1 | 21FA-20120 | RELAY BOARD PLATE | 1 |
DX20
|
|
| 13-1 | 21FA-20120 | RELAY BOARD PLATE | 1 |
DX20
|
|
| 13-1 | 21FA-20120 | RELAY BOARD PLATE | 1 |
DX25
|
|
| 13-1 | 21FA-20120 | RELAY BOARD PLATE | 1 |
DX25
|
|
| 13-1 | 21FA-20120 | RELAY BOARD PLATE | 1 |
DX30
|
|
| 13-1 | 21FA-20120 | RELAY BOARD PLATE | 1 |
DX30
|
|
| 13-2 | S161-060102 | SCREW-C/R RD | 6 | ||
| 13-3 | S411-060002 | Шайба пружинная | 6 | ||
| 13-4 | 21E3-0004 | RELAY-START | 1 | ||
| 13-5 | 21E3-0025 | Реле | 1 | ||
| 13-6 | 21E3-0011 | Реле | 3 | ||
| 13-7 | 21FA-20360 | FLASHER UNIT | 1 | ||
| 13-8 | 22S4-02130 | DECAL-START RELAY | 1 |
DX20
|
|
| 13-8 | 22S4-02130 | DECAL-START RELAY | 1 |
DX25
|
|
| 13-8 | 22S4-02130 | DECAL-START RELAY | 1 |
DX30
|
|
| 15 | 21FA-20300 | CLAMP BATTERY | 1 | ||
| 16 | 21FA-20320 | Щуп | 2 |
DX20
|
|
| 16 | 21FA-20320 | Щуп | 2 |
DX20
|
|
| 16 | 21FA-20320 | Щуп | 2 |
DX25
|
|
| 16 | 21FA-20320 | Щуп | 2 |
DX25
|
|
| 16 | 21FA-20320 | Щуп | 2 |
DX30
|
|
| 16 | 21FA-20320 | Щуп | 2 |
DX30
|
|
| 17 | 21FA-20292 | Скобы для аккумуляторов | 1 | ||
| 18 | S205-081002 | Гайка | 1 | ||
| 19 | S033-081526 | Болт | 5 | ||
| 2 | 21FA-10070 | BATTERY CABLE (+) | 1 |
DX20
|
|
| 2 | 21FA-10070 | BATTERY CABLE (+) | 1 |
DX20
|
|
| 2 | 21FA-10070 | BATTERY CABLE (+) | 1 |
DX25
|
|
| 2 | 21FA-10070 | BATTERY CABLE (+) | 1 |
DX25
|
|
| 2 | 21FA-10070 | BATTERY CABLE (+) | 1 |
DX30
|
|
| 2 | 21FA-10070 | BATTERY CABLE (+) | 1 |
DX30
|
|
| 20 | 21FA-20340 | Вставка | 1 | ||
| 21 | S541-200002 | Зажим трубки | 1 | ||
| 22 | S261-060002 | NUT-WING | 2 | ||
| 23 | S132-061546 | SCREW-W/WASHER | 1 | ||
| 24 | S403-062002 | Плоская шайба | 2 | ||
| 25 | S411-060002 | Шайба пружинная | 3 | ||
| 26 | S015-060302 | Болт с шестигранной головкой (под шестигранник) | 1 | ||
| 27 | S541-260002 | Зажим трубки | 1 | ||
| 28 | S411-050002 | Шайба пружинная | 1 | ||
| 29 | S205-051002 | Гайка | 1 | ||
| 3 | 20FA-10080 | BATTERY CABLE(-) | 1 |
STD
|
|
| 30 | 21L7-10500 | Выключатель массы (главный) | 1 |
OPT
|
|
| 31 | 23FA-10030 | CABLE(-) MASTER-EARTH | 1 |
OPT,DX30
|
|
| 31 | 21FA-10050 | EARTH STRIP E/G | 1 |
OPT,DX30
|
|
| 31 | 21FA-10050 | EARTH STRIP E/G | 1 |
OPT,DX20
|
|
| 31 | 21FA-10050 | EARTH STRIP E/G | 1 |
OPT,DX25
|
|
| 32 | 23FA-10050 | CABLE(-) BAT-MASTER | 1 |
OPT
|
|
| 33 | 21EN-00420 | Прокладка | 1 |
OPT
|
|
| 34 | 23FA-20060 | BRACKET-MASTER SW | 1 |
OPT,DX30
|
|
| 34 | 23FA-20060 | BRACKET-MASTER SW | 1 |
OPT,DX30
|
|
| 34 | 23FA-20060 | BRACKET-MASTER SW | 1 |
OPT,DX20
|
|
| 34 | 23FA-20060 | BRACKET-MASTER SW | 1 |
OPT,DX25
|
|
| 35 | S033-082026 | Болт | 2 | ||
| 36 | S033-081526 | Болт | 2 |
OPT
|
|
| 4 | 21FA-10050 | EARTH STRIP E/G | 1 | ||
| 5 | S551-035146 | вязальной проволоки | 5 | ||
| 6 | 21S4-01090 | HORN ASSY | 1 | ||
| 7 | 21FA-20570 | BUZZER-BACK UP | 1 | ||
| 8 | 21E9-06230 | CLAMP-QUICK | 2 | ||
| 9 | 20FA-20200 | BRAKE PRESS SWITCH | 1 | ||
| N12 | 21FA-20220 | SENDER WATER TEMP | 1 | ||
| N14 | 20FA-20060 | GLOW CONTROLLER | 1 |
