Каталог запчастей
-
Hyundai
-
HBF15/18III
- DECAL(FOR EXPORT,#0001-)

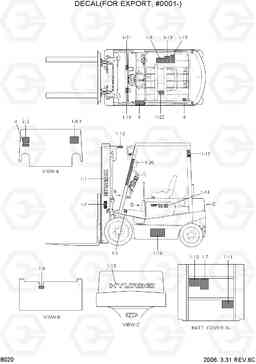

DECAL(FOR EXPORT,#0001-) погрузчика электрического Hyundai HBF15/18III
DECAL(FOR EXPORT,#0001-) погрузчика электрического Hyundai HBF15/18III со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8020
Наименование:DECAL(FOR EXPORT,#0001-)
Версия:2005. 3.31 REV.6C
DECAL(FOR EXPORT,#0001-) HBF15/18III
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | @ | DECAL(FOR DOMESTIC) | 1 | ||
| 1 | B71930111 | DECAL KIT(EXPORT) | 1 |
HBF15-3
|
|
| 1 | B71930112 | DECAL KIT(EXPORT) | 1 |
HBF15-3
|
|
| 1 | B71930131 | DECAL KIT(EXPORT) | 1 |
HBF18-3
|
|
| 1 | B71930132 | DECAL KIT(EXPORT) | 1 |
HBF18-3
|
|
| 1-1 | 2D2001130 | DECAL-HYUNDAI LOGO | 2 | ||
| 1-10 | 2D0100010 | DANGER-BAT HANDLING | 1 | ||
| 1-12 | 2D0300090 | Наклейка рука осторожность | 1 | ||
| 1-13 | 2D2001150 | HYUNDAI LOGO-CWT | 1 | ||
| 1-14 | B71930200 | DECAL,HBF15-3 | 2 |
HBF15-3
|
|
| 1-14 | B71930210 | DECAL,HBF18-3 | 2 |
HBF18-3
|
|
| 1-15 | B71930220 | DECAL-EQUIP,SPEC | 1 | ||
| 1-16 | B71930231 | DECAL-CIRCUIT DIAGRAM | 1 |
HBF15-3
|
|
| 1-16 | B71930232 | DECAL-DIRCUIT DIAGRAM | 1 |
HBF15-3
|
|
| 1-16 | B71930233 | DECAL-CIRCUIT DIAGRAM | 1 |
HBF15-3
|
|
| 1-16 | B71930234 | DECAL-CIRCUIT DIAGRAM | 1 |
HBF15-3
|
|
| 1-16 | B71930231 | DECAL-CIRCUIT DIAGRAM | 1 |
HBF18-3
|
|
| 1-16 | B71930232 | DECAL-DIRCUIT DIAGRAM | 1 |
HBF18-3
|
|
| 1-16 | B71930233 | DECAL-CIRCUIT DIAGRAM | 1 |
HBF18-3
|
|
| 1-16 | B71930234 | DECAL-CIRCUIT DIAGRAM | 1 |
HBF18-3
|
|
| 1-17 | B71930240 | DECAL-HANGER | 1 | ||
| 1-18 | 2D0300110 | Наклейка стояночного тормоза | 1 | ||
| 1-19 | 2D0500051 | CHART-MAINT,CHECK | 1 | ||
| 1-2 | 2D0200030 | DECAL-WARNING | 2 | ||
| 1-20 | 2D0200051 | Наклейка предупреждение | 1 | ||
| 1-21 | 2D0200060 | WARNING-BAT.CHARGE | 1 | ||
| 1-22 | 91N6-07112 | Наклейка пребывание исправить | 1 | ||
| 1-3 | 2D0201070 | DECAL-TIRE | 1 | ||
| 1-6 | 2D0300040 | CAUTION-EARTH LINE | 1 | ||
| 1-7 | 2D0300030 | CAUTION-BAT HANDLING | 1 | ||
| 1-8 | 2D0900060 | Безопасность предупреждение | 1 | ||
| 1-9 | B71930250 | DECAL-LOAD CAPACITY | 1 |
HBF15-3
|
|
| 1-9 | B71930260 | DECAL-LOAD CAPACITY | 1 |
HBF18-3
|
|
| 2 | 2D0900122 | MANUFA PLATE/CE | 1 |
HBF15-3
|
|
| 2 | 91FY-00181 | табличка экспорт CE | 1 |
HBF15-3
|
|
| 2 | 2D0900122 | MANUFA PLATE/CE | 1 |
HBF18-3
|
|
| 2 | 91FY-00181 | табличка экспорт CE | 1 |
HBF18-3
|
|
| 3 | 9055000309 | RIVET | 4 | ||
| 4 | 2D0700070 | Этикетка ул | 1 |
USA ONLY
|
|
| 5 | C25007096-01 | NON SLIP SHEET | 2 | ||
| 6 | Y2N6118 | DECAL-COLD(-35) | 1 | ||
| 7 | 2D0900150 | NAME PLATE-BATT | 1 |
HBF15-3,USA
|
|
| 7 | 2D0900150 | NAME PLATE-BATT | 1 |
HBF15-3,USA
|
|
| 7 | 2D0900150 | NAME PLATE-BATT | 1 |
HBF18-3,USA
|
|
| 7 | 2D0900150 | NAME PLATE-BATT | 1 |
HBF18-3,USA
|
|
| N1-11 | Y2N1601 | CAUTION-BAT.STOPPER | 1 |
