WHEEL BRAKE погрузчика электрического Hyundai HBF15(E)
WHEEL BRAKE погрузчика электрического Hyundai HBF15(E) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4080
Наименование:WHEEL BRAKE
Версия:2001.12.12 REV.2

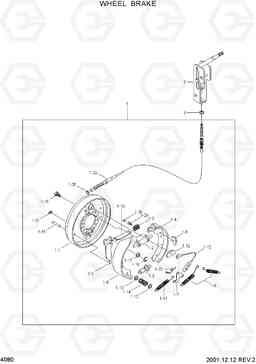

WHEEL BRAKE HBF15(E)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| 1 | 6600250400-01 | WHEEL BRAKE ASSY-LH | 1 | ||
| 1 | 6600250500-01 | WHEEL BRAKE ASSY-RH | 1 | ||
| 1-2 | 4401005952 | Гидроцилиндр подъема колеса | 2 | ||
| 1-22 | 4401005990 | PARKING CABLE-LH | 1 | ||
| 1-22 | 4401006090 | PARKING CABLE-RH | 1 | ||
| 1-4 | 4401005954 | PIN, SHOE & LINING ASSY-LH | 2 | ||
| 1-4 | 4401006054 | PIN, SHOE & LINING ASSY-RH | 2 | ||
| 1-6 | 4401005956 | ADJUSTER ASSY-LH | 1 | ||
| 1-6 | 4401006056 | ADJUSTER ASSY-RH | 1 | ||
| 2 | B11330010 | HAND BRAKE ASSY | 1 | ||
| 3 | S441-120002 | Шайба | 1 | ||
| N1-1 | @ | PLATE-BACK,LH | 1 | ||
| N1-1 | @ | PLATE-BACK,RH | 1 | ||
| N1-10 | @ | SPRING & CABLE ASSY | 2 | ||
| N1-11 | @ | SPRING | 2 | ||
| N1-12 | @ | PLATE | 2 | ||
| N1-13 | @ | CUP | 16 | ||
| N1-14 | @ | SPRING | 4 | ||
| N1-15 | @ | PIN | 4 | ||
| N1-16 | @ | THRUST | 2 | ||
| N1-17 | @ | WASHER-SPRING | 2 | ||
| N1-18 | @ | RETAINER | 2 | ||
| N1-19 | @ | BOLT & WASHER | 4 | ||
| N1-20 | @ | RING-SNAP | 2 | ||
| N1-21 | @ | COVER | 2 | ||
| N1-23 | @ | SPRING-ADJUSTER, LH | 1 | ||
| N1-23 | @ | SPRING-ADJUSTER, RH | 1 | ||
| N1-24 | @ | SCREW-BREATHER | 2 | ||
| N1-25 | @ | CAP-BREATHER | 2 | ||
| N1-3 | @ | SPRING | 2 | ||
| N1-5 | @ | LEVER-PARKING, LH | 1 | ||
| N1-5 | @ | LEVER-PARIKING, RH | 1 | ||
| N1-7 | @ | LEVER-ADJUSTER | 2 | ||
| N1-8 | @ | SPRING-RETURN | 4 | ||
| N1-9 | @ | GUIDE-CABLE | 2 |
