• Вращающийся ковш

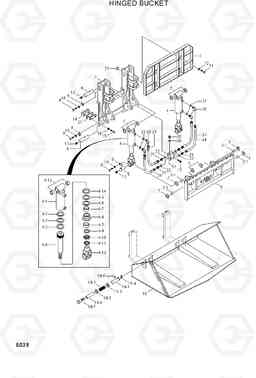

Вращающийся ковш погрузчика электрического Hyundai HBF15(E)

Код подсистемы:6039

Наименование:HINGED BUCKET

Версия:

HINGED BUCKET HBF15(E)

Поз.	Код	Наименование	Кол	Прим.
*	FMB0400210	Вращающийся ковш	1
N	@	NOT INDIVIDUALLY SUPPLIED	AR
N1	@	FRAME ASSY	6
N10	@	WASHER-SPRING	12
N11	@	BOLT-HEX	4
N12	@	WASHER-SPRING	4
N13	@	NIPPLE-GREASE	6
N14	@	HOOK-LOWER	2
N15	@	BOLT-WRENCH	4
N16	@	WASHER-SPRING	4
N17	@	MANIFOLD	1
N18	@	BOLT-WRENCH	2
N19	@	BUCKET ASSY	1
N19-1	@	PIN	1
N19-2	@	SPRING	1
N19-3	@	WASHER-PLAIN	2
N19-4	@	STOPPER-PLATE	1
N19-5	@	PIN-COCK	1
N19-6	@	TUBE	1
N19-7	@	BOLT-HEX	1
N2	@	CARRIAGE ASSY	1
N2-1	@	BUSHING-DU	2
N20	@	NIPPLE	4
N21	@	NIPPLE	4
N22	@	O-RING	6
N23	@	HOSE-HP	2
N24	@	HOSE-HP	2
N25	@	NIPPLE	2
N26	@	O-RING	2
N27	@	SHIM	1
N3	@	BACKREST ASSY	2
N4	@	CYLINDER ASSY	2
N4-1	@	TUBE ASSY	2
N4-10	@	NUT-LOCKING	2
N4-11	@	WASHER-LOCKING	2
N4-12	@	BUSHING-DU	4
N4-13	@	CLEVIS	2
N4-14	@	SPACER	2
N4-2	@	SEAL-SLIPPER	2
N4-3	@	RING-WEAR	2
N4-4	@	ROD & PISTON ASSY	2
N4-5	@	RING-BACK UP	2
N4-6	@	RING-BACK UP	2
N4-7	@	BUSH-DU	2
N4-8	@	U-PACKING	2
N4-9	@	WIPER-DUST	2
N5	@	PIN	2
N6	@	PIN	4
N7	@	SHIM	1
N8	@	PIN-STOPPER	6
N9	@	BOLT-HEX	12
