ELECTRIC 2 погрузчика электрического Hyundai HBF20/25II
ELECTRIC 2 погрузчика электрического Hyundai HBF20/25II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1020
Наименование:ELECTRIC 2
Версия:2007. 2.28 REV.7B

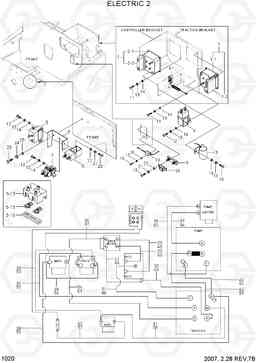

ELECTRIC 2 HBF20/25II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | B52860010 | CONTROLLER-DRIVE | 1 |
SEVCON
|
|
| 1-1 | 639/90002 | POWER FRAME TRACTION | 1 |
PP246M
|
|
| 1-2 | 662T46212 | LOGIC TRACTION | 1 |
662/17711
|
|
| 10 | 310007190 | FUSE BOX ASSY | 1 |
250V 15A,5A
|
|
| 11 | 201506020 | Болт с шестигранной головкой (под шестигранник) | 8 | ||
| 12 | 201506010 | Болт с шестигранной головкой (под шестигранник) | 6 | ||
| 13 | 233306000 | Шайба пружинная | 16 | ||
| 14 | 231106000 | Плоская шайба | 14 | ||
| 15 | 201506010 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 16 | 201304010 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 17 | 233304000 | Шайба пружинная | 2 | ||
| 18 | 231104000 | Плоская шайба | 2 | ||
| 19 | 201305015 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 2 | B52860020 | CONTROLLER-PUMP | 1 |
SEVCON
|
|
| 2-2 | 662P46512 | LOGIC PUMP | 1 |
662/17734
|
|
| 20 | 201305010 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 21 | 233305000 | Шайба пружинная | 4 | ||
| 22 | 231105000 | Плоская шайба | 4 | ||
| 23 | 201510015 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 24 | 233310000 | Шайба пружинная | 2 | ||
| 25 | 231110000 | Плоская шайба | 2 | ||
| 26 | 310007220 | FUSE-MAIN | 1 | ||
| 27 | B52810020 | CABLE | 1 |
FRMC-D/MOTOR
|
|
| 28 | B52810030 | CABLE | 1 |
MC2-D/MOTOR
|
|
| 29 | B52810040 | CABLE | 1 |
MC3-D/MOTOR
|
|
| 3 | 310008590-01 | HORN-BACK | 1 |
DC48V,HBF20-2
|
|
| 3 | 310008591 | HORN-BACK | 1 |
DC48V,HBF20-2
|
|
| 3 | 310008590-01 | HORN-BACK | 1 |
DC48V,HBF25-2
|
|
| 3 | 310008591 | HORN-BACK | 1 |
DC48V,HBF25-2
|
|
| 30 | B52810051 | CABLE | 1 |
MC4-T/MOTOR
|
|
| 31 | B52810061 | CABLE | 1 |
FRMC-T/C
|
|
| 31 | B52810062 | CABLE | 1 |
FRMC-T/C
|
|
| 32 | B52810071 | CABLE | 1 |
FRMC-T/C
|
|
| 32 | B52810072 | CABLE | 1 |
FRMC-T/C
|
|
| 33 | B52810081 | CABLE | 1 |
MCI-MC5
|
|
| 33 | B52810082 | CABLE | 1 |
MCI-MC5
|
|
| 34 | B52810091 | CABLE | 1 |
MC4-T/C
|
|
| 34 | B52810092 | CABLE | 1 |
MC4-T/C
|
|
| 35 | B52810111 | CABLE | 1 |
MC5-T/C
|
|
| 35 | B52810112 | CABLE | 1 |
MC5-T/C
|
|
| 36 | B52810120 | CABLE | 1 |
P/M-P/C
|
|
| 36 | B52810121 | CABLE | 1 |
P/M-P/C
|
|
| 37 | B52810130 | CABLE | 1 |
P/M-P/C
|
|
| 37 | B52810131 | CABLE | 1 |
P/M-P/C
|
|
| 38 | B52810151 | CABLE | 1 |
T/C-MC4
|
|
| 38 | B52810152 | CABLE | 1 |
T/C-MC4
|
|
| 39 | B52810161 | CABLE | 1 |
MC4-MC5
|
|
| 4 | 310005030 | MAG CONTACTOR ASSY | 1 |
SW200-7
|
|
| 4-1 | 21FH-29210 | KIT-CONTACT | 1 |
NOT SHOWN
|
|
| 40 | B52810172 | CABLE | 1 |
MC1-M/FUSE
|
|
| 41 | B52810181 | CABLE | 1 |
MC1-T/C
|
|
| 42 | B52810190 | CABLE | 1 |
T/C-P/C
|
|
| 42 | B52810191 | CABLE | 1 |
T/C-P/C
|
|
| 43 | B52810200 | CABLE | 1 |
T/C-P/C
|
|
| 44 | B52810320 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 44 | B52810320 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 45 | B52810330 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 45 | B52810330 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 46 | B52810340 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 46 | B52810340 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 47 | B52810350 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 47 | B52810350 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 48 | B52810360 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 48 | B52810360 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 49 | B52810370 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 49 | B52810370 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 5 | 310005190 | MAG CONTACTOR ASSY | 1 |
DC182-3
|
|
| 50 | B52810380 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 50 | B52810380 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 51 | B52810390 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 51 | B52810390 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 52 | B52810400 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 52 | B52810400 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 53 | B52810410 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 53 | B52810410 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 54 | B52810420 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 54 | B52810420 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 55 | B52810430 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 55 | B52810430 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 56 | B52810440 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 56 | B52810440 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 57 | B52810450 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 57 | B52810450 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 58 | B52810460 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 58 | B52810460 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 59 | B52810470 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 59 | B52810470 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 6 | 310005200 | MAG CONTACTOR ASS'Y | 1 |
SW200-281
|
|
| 6-1 | 21FH-29210 | KIT-CONTACT | 1 |
NOT SHOWN
|
|
| 60 | B52810480 | CABLE | 1 |
HBF20-2,EXP,UL
|
|
| 60 | B52810480 | CABLE | 1 |
HBF25-2,EXP,UL
|
|
| 61 | B71860070 | CAN-CALIBRATOR ASSY | 1 |
HBF20-2
|
|
| 61 | B71860070 | CAN-CALIBRATOR ASSY | 1 |
HBF25-2
|
|
| 7 | B52850030 | MAG CONTACTOR ASS'Y | 1 |
SW181B-284
|
|
| 7-1 | 21FH-29090 | KIT-CONTACT | 1 |
NOT SHWON
|
|
| 8 | B52110240 | BRACKET-M/C | 1 | ||
| 9 | B21830050 | пластина предохранитель | 1 | ||
| N2-1 | 639/90006 | POWER FRAME PUMP | 1 |
PP346M
|
|
| N5-1 | 21FH-29140 | KIT-CONTACT | 1 |
NOT SHOWN
|
|
| N5-13 | 2180-270 | TOP COVER ASSY | 1 | ||
| N5-15 | 2180-30 | MOVING CONTACT ASSY | 2 | ||
| N5-16 | 2180-325 | CLOSED FIX CONT ASSY | 1 |
