HARNESS погрузчика электрического Hyundai HBF20/25II
HARNESS погрузчика электрического Hyundai HBF20/25II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1030
Наименование:HARNESS
Версия:2004. 4.30 REV.5

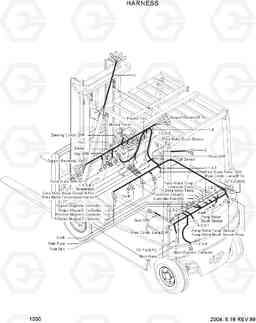

HARNESS HBF20/25II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | B52800012 | HARNESS-MAIN | 1 |
HBF20-2
|
|
| 1 | B52800013 | HARNESS-MAIN | 1 |
HBF20-2
|
|
| 1 | B52800014 | HARNESS-MAIN | 1 |
HBF20-2
|
|
| 1 | B52800015 | HARNESS-MAIN | 1 |
HBF20-2
|
|
| 1 | B52800012 | HARNESS-MAIN | 1 |
HBF25-2
|
|
| 1 | B52800013 | HARNESS-MAIN | 1 |
HBF25-2
|
|
| 1 | B52800014 | HARNESS-MAIN | 1 |
HBF25-2
|
|
| 1 | B52800015 | HARNESS-MAIN | 1 |
HBF25-2
|
|
| 1-1 | B71890010 | Диод | 2 |
HBF20-2
|
|
| 1-1 | B71890010 | Диод | 2 |
HBF25-2
|
|
| 1-2 | B71890020 | RESISTNACE | 2 |
HBF20-2
|
|
| 1-2 | B71890020 | RESISTNACE | 2 |
HBF25-2
|
|
| 1-3 | B71890020 | RESISTNACE | 2 |
HBF20-2
|
|
| 1-3 | B71890020 | RESISTNACE | 2 |
HBF25-2
|
|
| 1-4 | B71890040 | DIODE(WITH RESISTANCE) | 1 |
HBF20-2
|
|
| 1-4 | B71890040 | DIODE(WITH RESISTANCE) | 1 |
HBF25-2
|
|
| 2 | B51800040 | HARNESS-MICRO SWITCH | 1 | ||
| 3 | 310036040 | HARNESS-SUPPORT | 2 |
HBF20-2
|
|
| 3 | B52800020 | HARNESS-SUPPORT | 2 |
HBF20-2
|
|
| 3 | 310036040 | HARNESS-SUPPORT | 2 |
HBF25-2
|
|
| 3 | B52800020 | HARNESS-SUPPORT | 2 |
HBF25-2
|
|
| 4 | B52800030 | HARNESS-MAIN | 1 |
HBF20-2,EXP,UL
|
|
| 4 | B52800031 | HARNESS-MAIN | 1 |
HBF20-2,EXP,UL
|
|
| 4 | B52800032 | HARNESS-MAIN | 1 |
HBF20-2,EXP,UL
|
|
| 4 | B52800030 | HARNESS-MAIN | 1 |
HBF25-2,EXP,UL
|
|
| 4 | B52800031 | HARNESS-MAIN | 1 |
HBF25-2,EXP,UL
|
|
| 4 | B52800032 | HARNESS-MAIN | 1 |
HBF25-2,EXP,UL
|
|
| 4-1 | B71890010 | Диод | 1 |
HBF20-2,EXP,UL
|
|
| 4-1 | B71890010 | Диод | 1 |
HBF25-2,EXP,UL
|
|
| 4-2 | B71890020 | RESISTNACE | 2 |
HBF20-2,EXP,UL
|
|
| 4-2 | B71890020 | RESISTNACE | 2 |
HBF25-2,EXP,UL
|
|
| 4-3 | B71890030 | поглотитель перенапряжений | 2 |
HBF20-2,EXP,UL
|
|
| 4-3 | B71890030 | поглотитель перенапряжений | 2 |
HBF25-2,EXP,UL
|
|
| 4-4 | B71890040 | DIODE(WITH RESISTANCE) | 2 |
HBF20-2,EXP,UL
|
|
| 4-4 | B71890040 | DIODE(WITH RESISTANCE) | 2 |
HBF25-2,EXP,UL
|
