FREE LIFT CYLINDER(TF-MAST,HBF30/32-7) погрузчика электрического Hyundai HBF20/25/30/32-7
FREE LIFT CYLINDER(TF-MAST,HBF30/32-7) погрузчика электрического Hyundai HBF20/25/30/32-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7271
Наименование:FREE LIFT CYLINDER(TF-MAST,HBF30/32-7)
Версия:2012. 8.31 REV.12H

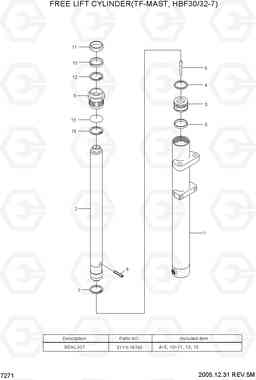

FREE LIFT CYLINDER(TF-MAST,HBF30/32-7) HBF20/25/30/32-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 33FG-07600 | FREE LIFT CYLINDER | 1 |
TF370,HBF30-7
|
|
| * | 33FG-07601 | FREE LIFT CYLINDER | 1 |
TF370,HBF30-7
|
|
| * | 33FG-07600 | FREE LIFT CYLINDER | 1 |
TF370,HBF32-7
|
|
| * | 33FG-07601 | FREE LIFT CYLINDER | 1 |
TF370,HBF32-7
|
|
| * | 33FG-07610 | FREE LIFT CYLINDER | 1 |
TF400,HBF30-7
|
|
| * | 33FG-07611 | FREE LIFT CYLINDER | 1 |
TF400,HBF30-7
|
|
| * | 33FG-07610 | FREE LIFT CYLINDER | 1 |
TF400,HBF32-7
|
|
| * | 33FG-07611 | FREE LIFT CYLINDER | 1 |
TF400,HBF32-7
|
|
| * | 33FG-07620 | FREE LIFT CYLINDER | 1 |
TF430,HBF30-7
|
|
| * | 33FG-07621 | FREE LIFT CYLINDER | 1 |
TF430,HBF30-7
|
|
| * | 33FG-07620 | FREE LIFT CYLINDER | 1 |
TF430,HBF32-7
|
|
| * | 33FG-07621 | FREE LIFT CYLINDER | 1 |
TF430,HBF32-7
|
|
| * | 33FG-07630 | Гидроцилиндр | 1 |
TF450,HBF30-7
|
|
| * | 33FG-07631 | FREE LIFT CYLINDER | 1 |
TF450,HBF30-7
|
|
| * | 33FG-07630 | Гидроцилиндр | 1 |
TF450,HBF32-7
|
|
| * | 33FG-07631 | FREE LIFT CYLINDER | 1 |
TF450,HBF32-7
|
|
| * | 33FG-07640 | FREE LIFT CYLINDER | 1 |
TF470,HBF30-7
|
|
| * | 33FG-07641 | FREE LIFT CYLINDER | 1 |
TF470,HBF30-7
|
|
| * | 33FG-07640 | FREE LIFT CYLINDER | 1 |
TF470,HBF32-7
|
|
| * | 33FG-07641 | FREE LIFT CYLINDER | 1 |
TF470,HBF32-7
|
|
| * | 33FG-07650 | FREE LIFT CYLINDER | 1 |
TF500,HBF30-7
|
|
| * | 33FG-07651 | FREE LIFT CYLINDER | 1 |
TF500,HBF30-7
|
|
| * | 33FG-07650 | FREE LIFT CYLINDER | 1 |
TF500,HBF32-7
|
|
| * | 33FG-07651 | FREE LIFT CYLINDER | 1 |
TF500,HBF32-7
|
|
| * | 33FG-07660 | FREE LIFT CYLINDER | 1 |
TF550,HBF30-7
|
|
| * | 33FG-07661 | FREE LIFT CYLINDER | 1 |
TF550,HBF30-7
|
|
| * | 33FG-07660 | FREE LIFT CYLINDER | 1 |
TF550,HBF32-7
|
|
| * | 33FG-07661 | FREE LIFT CYLINDER | 1 |
TF550,HBF32-7
|
|
| * | 33FG-07670 | FREE LIFT CYLINDER | 1 |
TF600,HBF30-7
|
|
| * | 33FG-07671 | FREE LIFT CYLINDER | 1 |
TF600,HBF30-7
|
|
| * | 33FG-07670 | FREE LIFT CYLINDER | 1 |
TF600,HBF32-7
|
|
| * | 33FG-07671 | FREE LIFT CYLINDER | 1 |
TF600,HBF32-7
|
|
| * | 33FG-07680 | FREE LIFT CYLINDER | 1 |
TF650,HBF30-7
|
|
| * | 33FG-07681 | FREE LIFT CYLINDER | 1 |
TF650,HBF30-7
|
|
| * | 33FG-07680 | FREE LIFT CYLINDER | 1 |
TF650,HBF32-7
|
|
| * | 33FG-07681 | FREE LIFT CYLINDER | 1 |
TF650,HBF32-7
|
|
| * | 33FG-07690 | FREE LIFT CYLINDER | 1 |
TF700,HBF30-7
|
|
| * | 33FG-07691 | FREE LIFT CYLINDER | 1 |
TF700,HBF30-7
|
|
| * | 33FG-07690 | FREE LIFT CYLINDER | 1 |
TF700,HBF32-7
|
|
| * | 33FG-07691 | FREE LIFT CYLINDER | 1 |
TF700,HBF32-7
|
|
| 1 | 31Y3-18540 | Гильза цилиндра атригера | 1 |
TF370
|
|
| 1 | 31Y3-18550 | Гильза цилиндра атригера | 1 |
TF400
|
|
| 1 | 31Y3-18560 | Гильза цилиндра атригера | 1 |
TF430
|
|
| 1 | 31Y3-18570 | Гильза цилиндра атригера | 1 |
TF450
|
|
| 1 | 31Y3-18580 | Гильза цилиндра атригера | 1 |
TF470
|
|
| 1 | 31Y3-18590 | Гильза цилиндра атригера | 1 |
TF500
|
|
| 1 | 31Y3-18600 | Гильза цилиндра атригера | 1 |
TF550
|
|
| 1 | 31Y3-18610 | Гильза цилиндра атригера | 1 |
TF600
|
|
| 1 | 31Y3-19240 | Гильза цилиндра атригера | 1 |
TF650
|
|
| 1 | 31Y3-19250 | Гильза цилиндра атригера | 1 |
TF700
|
|
| 12 | Y190-074000 | Кольцо стопорное | 1 | ||
| 2 | 31Y3-18630 | Щуп | 1 |
TF370,HBF30-7
|
|
| 2 | 31Y3-18631 | Щуп | 1 |
TF370,HBF30-7
|
|
| 2 | 31Y3-18630 | Щуп | 1 |
TF370,HBF32-7
|
|
| 2 | 31Y3-18631 | Щуп | 1 |
TF370,HBF32-7
|
|
| 2 | 31Y3-18640 | Щуп | 1 |
TF400,HBF30-7
|
|
| 2 | 31Y3-18641 | Щуп | 1 |
TF400,HBF30-7
|
|
| 2 | 31Y3-18640 | Щуп | 1 |
TF400,HBF32-7
|
|
| 2 | 31Y3-18641 | Щуп | 1 |
TF400,HBF32-7
|
|
| 2 | 31Y3-18650 | Щуп | 1 |
TF430,HBF30-7
|
|
| 2 | 31Y3-18651 | Щуп | 1 |
TF430,HBF30-7
|
|
| 2 | 31Y3-18650 | Щуп | 1 |
TF430,HBF32-7
|
|
| 2 | 31Y3-18651 | Щуп | 1 |
TF430,HBF33-7
|
|
| 2 | 31Y3-18660 | Щуп | 1 |
TF450,HBF30-7
|
|
| 2 | 31Y3-18661 | Щуп | 1 |
TF450,HBF30-7
|
|
| 2 | 31Y3-18660 | Щуп | 1 |
TF450,HBF32-7
|
|
| 2 | 31Y3-18661 | Щуп | 1 |
TF450,HBF32-7
|
|
| 2 | 31Y3-18670 | ROD ASS'Y | 1 |
TF470,HBF30-7
|
|
| 2 | 31Y3-18671 | Щуп | 1 |
TF470,HBF30-7
|
|
| 2 | 31Y3-18670 | ROD ASS'Y | 1 |
TF470,HBF32-7
|
|
| 2 | 31Y3-18671 | Щуп | 1 |
TF470,HBF32-7
|
|
| 2 | 31Y3-18680 | Щуп | 1 |
TF500,HBF30-7
|
|
| 2 | 31Y3-18681 | Щуп | 1 |
TF500,HBF30-7
|
|
| 2 | 31Y3-18680 | Щуп | 1 |
TF500,HBF32-7
|
|
| 2 | 31Y3-18681 | Щуп | 1 |
TF500,HBF32-7
|
|
| 2 | 31Y3-18690 | Щуп | 1 |
TF550,HBF30-7
|
|
| 2 | 31Y3-18691 | Щуп | 1 |
TF550,HBF30-7
|
|
| 2 | 31Y3-18690 | Щуп | 1 |
TF550,HBF32-7
|
|
| 2 | 31Y3-18691 | Щуп | 1 |
TF550,HBF32-7
|
|
| 2 | 31Y3-18700 | Щуп | 1 |
TF600,HBF30-7
|
|
| 2 | 31Y3-18701 | Щуп | 1 |
TF600,HBF30-7
|
|
| 2 | 31Y3-18700 | Щуп | 1 |
TF600,HBF32-7
|
|
| 2 | 31Y3-18701 | Щуп | 1 |
TF600,HBF32-7
|
|
| 2 | 31Y3-19260 | Щуп | 1 |
TF650,HBF30-7
|
|
| 2 | 31Y3-19261 | Щуп | 1 |
TF650,HBF30-7
|
|
| 2 | 31Y3-19260 | Щуп | 1 |
TF650,HBF32-7
|
|
| 2 | 31Y3-19261 | Щуп | 1 |
TF650,HBF32-7
|
|
| 2 | 31Y3-19270 | Щуп | 1 |
TF700,HBF30-7
|
|
| 2 | 31Y3-19271 | Щуп | 1 |
TF700,HBF30-7
|
|
| 2 | 31Y3-19270 | Щуп | 1 |
TF700,HBF32-7
|
|
| 2 | 31Y3-19271 | Щуп | 1 |
TF700,HBF32-7
|
|
| 3 | 31Y3-18720 | Поршень | 1 |
HBF30-7
|
|
| 3 | 31Y3-18721 | Поршень | 1 |
HBF30-7
|
|
| 3 | 31Y3-18720 | Поршень | 1 |
HBF32-7
|
|
| 3 | 31Y3-18721 | Поршень | 1 |
HBF32-7
|
|
| 6 | 31YC-99F80 | Клапан обратный | 1 | ||
| 6 | XKCD-01646 | Клапан обратный | 1 | ||
| 7 | 31YC-99F90 | Кольцо | 1 | ||
| 8 | S113-080084 | Комплект винтов шестигранников | 1 | ||
| 9 | 31Y3-18730 | Сальник | 1 | ||
| K | 31Y3-18740 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| K10 | Y200-060011 | уплотнение штока | 1 | ||
| K11 | Y110-060011 | стеклоочиститель пыли | 1 | ||
| K13 | S632-080004 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| K15 | S642-080003 | Кольцо | 1 | ||
| K4 | Y430-085022 | Уплотнение | 1 | ||
| K5 | Y300-085100 | Кольцо изнашиваемое | 1 |
