Код подсистемы:7010
Наименование:DECAL
Версия:2004. 4.30 REV.5

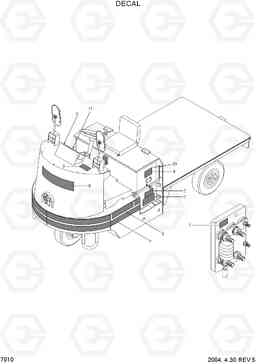

DECAL HBP15/HBT40
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | Y2N337 | DECAL-DRIVE | 1 | ||
| 10 | 9055000309 | RIVET | 4 | ||
| 11 | 2D2001210 | DECAL-LAMP | 1 |
HBP15
|
|
| 11 | 2D2001210 | DECAL-LAMP | 1 |
HBT40
|
|
| 2 | 2D0300030 | CAUTION-BAT HANDLING | 1 | ||
| 3 | 2D0100020 | DANGER-BAT HANDLING | 1 |
DOMESTIC
|
|
| 3 | 2D0100010 | DANGER-BAT HANDLING | 1 |
EXPORT
|
|
| 4 | Y2N6045 | CIRCUIT DIAGRAM | 1 |
HBP15
|
|
| 4 | Y2N6130 | CIRCUIT DIAGRAM | 1 |
HBP15
|
|
| 4 | Y2N6131 | CIRCUIT DIAGRAM | 1 |
HBP15
|
|
| 4 | Y2N6045 | CIRCUIT DIAGRAM | 1 |
HBT40
|
|
| 4 | Y2N6130 | CIRCUIT DIAGRAM | 1 |
HBT40
|
|
| 4 | Y2N6131 | CIRCUIT DIAGRAM | 1 |
HBT40
|
|
| 5 | 2D1000080 | OPERATING PANEL-NP | 1 |
DOMESTIC,HBP15
|
|
| 5 | 2D1000081 | OPERATING PANEL-NP | 1 |
DOMESTIC,HBP15
|
|
| 5 | 2D1000080 | OPERATING PANEL-NP | 1 |
DOMESTIC,HBT40
|
|
| 5 | 2D1000081 | OPERATING PANEL-NP | 1 |
DOMESTIC,HBT40
|
|
| 5 | 2D1000090 | OPERATING PANEL-NP | 1 |
EXPORT,HBP15
|
|
| 5 | 2D1000091 | OPERATING PANEL-NP | 1 |
EXPORT,HBP15
|
|
| 5 | 2D1000090 | OPERATING PANEL-NP | 1 |
EXPORT,HBT40
|
|
| 5 | 2D1000091 | OPERATING PANEL-NP | 1 |
EXPORT,HBT40
|
|
| 6 | 2D2001150 | HYUNDAI LOGO-CWT | 1 | ||
| 7 | 6600077700 | LINE | 6 | ||
| 8 | Y2N6082 | MODEL-NAME HBT40 | 2 |
HBT40
|
|
| 8 | Y2N6084 | DECAL-MODEL HBP15 | 2 |
HBP15
|
|
| 9 | 2D0900100 | NAME PLATE | 1 |
DOMESTIC
|
|
| 9 | 2D0900120 | NAME PLATE | 1 |
EXPORT
|
