CARRIAGE & BACKREST(STD,HOOK) погрузчика электрического Hyundai HBR14/15/18/20II
CARRIAGE & BACKREST(STD,HOOK) погрузчика электрического Hyundai HBR14/15/18/20II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7041
Наименование:CARRIAGE & BACKREST(STD,HOOK)
Версия:2004. 4.30 REV.5

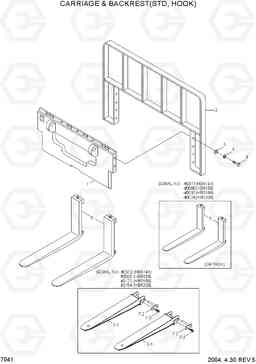

CARRIAGE & BACKREST(STD,HOOK) HBR14/15/18/20II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | B21501300 | CARR & BACKREST ASSY | 1 |
HBR14-2
|
|
| * | B21501300 | CARR & BACKREST ASSY | 1 |
HBR15-2
|
|
| * | B21501300 | CARR & BACKREST ASSY | 1 |
HBR18-2
|
|
| * | B21501300 | CARR & BACKREST ASSY | 1 |
HBR20-2
|
|
| 1 | FMB0201210B | FINGER BAR(HOOK ON) | 1 | ||
| 2 | 6600139100B | BACKREST(HOOK) | 1 | ||
| 3 | S017-140302 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 4 | S411-140002 | Шайба пружинная | 4 | ||
| 5 | S403-141002 | Плоская шайба | 4 | ||
| 6 | K5251051501-04 | FORK ASSY(920) | 2 |
HBR14-2
|
|
| 6 | 64FH-31010 | FORK ASSY(920) | 2 |
HBR14-2
|
|
| 6 | K5251051504-04 | FORK ASSY(1370) | 2 |
HBR14-2
|
|
| 6 | 64FH-31040 | FORK ASSY(1370) | 2 |
HBR14-2
|
|
| 6 | K5251051501-04 | FORK ASSY(920) | 2 |
HBR15-2
|
|
| 6 | 64FH-31010 | FORK ASSY(920) | 2 |
HBR15-2
|
|
| 6 | K5251051504-04 | FORK ASSY(1370) | 2 |
HBR15-2
|
|
| 6 | 64FH-31040 | FORK ASSY(1370) | 2 |
HBR15-2
|
|
| 6 | K5251051501-04 | FORK ASSY(920) | 2 |
HBR18-2
|
|
| 6 | 64FH-31010 | FORK ASSY(920) | 2 |
HBR18-2
|
|
| 6 | K5251051504-04 | FORK ASSY(1370) | 2 |
HBR18-2
|
|
| 6 | 64FH-31040 | FORK ASSY(1370) | 2 |
HBR18-2
|
|
| 6 | K5251051501-04 | FORK ASSY(920) | 2 |
HBR20-2
|
|
| 6 | 64FH-31010 | FORK ASSY(920) | 2 |
HBR20-2
|
|
| 6 | K5251051504-04 | FORK ASSY(1370) | 2 |
HBR20-2
|
|
| 6 | 64FH-31040 | FORK ASSY(1370) | 2 |
HBR20-2
|
|
| 7 | 69FD-81010 | доб вилка в сборе (1300L) | 1 |
HBR14-2
|
|
| 7 | 69FD-81010 | доб вилка в сборе (1300L) | 1 |
HBR15-2
|
|
| 7 | 69FD-81010 | доб вилка в сборе (1300L) | 1 |
HBR18-2
|
|
| 7 | 69FD-81010 | доб вилка в сборе (1300L) | 1 |
HBR20-2
|
|
| 7 | 69FD-81020 | доб вилка в сборе (1500L) | 1 |
HBR14-2
|
|
| 7 | 69FD-81020 | доб вилка в сборе (1500L) | 1 |
HBR15-2
|
|
| 7 | 69FD-81020 | доб вилка в сборе (1500L) | 1 |
HBR18-2
|
|
| 7 | 69FD-81020 | доб вилка в сборе (1500L) | 1 |
HBR20-2
|
|
| 7 | 69FD-81030 | доб вилка в сборе (1700l) | 1 |
HBR14-2
|
|
| 7 | 69FD-81030 | доб вилка в сборе (1700l) | 1 |
HBR15-2
|
|
| 7 | 69FD-81030 | доб вилка в сборе (1700l) | 1 |
HBR18-2
|
|
| 7 | 69FD-81030 | доб вилка в сборе (1700l) | 1 |
HBR20-2
|
|
| 7-1 | 69FD-81100 | доб вилка (1300L) | 1 |
HBR14-2
|
|
| 7-1 | 69FD-81100 | доб вилка (1300L) | 1 |
HBR15-2
|
|
| 7-1 | 69FD-81100 | доб вилка (1300L) | 1 |
HBR18-2
|
|
| 7-1 | 69FD-81100 | доб вилка (1300L) | 1 |
HBR20-2
|
|
| 7-1 | 69FD-81200 | доб вилка (1500L) | 1 |
HBR14-2
|
|
| 7-1 | 69FD-81200 | доб вилка (1500L) | 1 |
HBR15-2
|
|
| 7-1 | 69FD-81200 | доб вилка (1500L) | 1 |
HBR18-2
|
|
| 7-1 | 69FD-81200 | доб вилка (1500L) | 1 |
HBR20-2
|
|
| 7-1 | 69FD-81300 | доб вилка (1700l) | 1 |
HBR14-2
|
|
| 7-1 | 69FD-81300 | доб вилка (1700l) | 1 |
HBR15-2
|
|
| 7-1 | 69FD-81300 | доб вилка (1700l) | 1 |
HBR18-2
|
|
| 7-1 | 69FD-81300 | доб вилка (1700l) | 1 |
HBR20-2
|
|
| 7-2 | 69FJ-81500 | LOCKING PIN | 1 |
HBR14-2
|
|
| 7-2 | 69FJ-81500 | LOCKING PIN | 1 |
HBR15-2
|
|
| 7-2 | 69FJ-81500 | LOCKING PIN | 1 |
HBR18-2
|
|
| 7-2 | 69FJ-81500 | LOCKING PIN | 1 |
HBR20-2
|
|
| 7-3 | S037-102022 | Болт | 1 |
HBR14-2
|
|
| 7-3 | S037-102022 | Болт | 1 |
HBR15-2
|
|
| 7-3 | S037-102022 | Болт | 1 |
HBR18-2
|
|
| 7-3 | S037-102022 | Болт | 1 |
HBR20-2
|
|
| N6 | K5251051502-04 | FORK ASSY(1070) | 2 |
HBR14-2
|
|
| N6 | 64FH-31020 | FORK ASSY(1070) | 2 |
HBR14-2
|
|
| N6 | K5251051503-04 | FORK ASSY(1200) | 2 |
HBR14-2
|
|
| N6 | 64FH-31030 | FORK ASSY(1200) | 2 |
HBR14-2
|
|
| N6 | K5251051505-04 | FORK ASSY(1520) | 2 |
HBR14-2
|
|
| N6 | 64FH-31050 | FORK ASSY(1520) | 2 |
HBR14-2
|
|
| N6 | K5251051502-04 | FORK ASSY(1070) | 2 |
HBR15-2
|
|
| N6 | 64FH-31020 | FORK ASSY(1070) | 2 |
HBR15-2
|
|
| N6 | K5251051503-04 | FORK ASSY(1200) | 2 |
HBR15-2
|
|
| N6 | 64FH-31030 | FORK ASSY(1200) | 2 |
HBR15-2
|
|
| N6 | K5251051505-04 | FORK ASSY(1520) | 2 |
HBR15-2
|
|
| N6 | 64FH-31050 | FORK ASSY(1520) | 2 |
HBR15-2
|
|
| N6 | K5251051502-04 | FORK ASSY(1070) | 2 |
HBR18-2
|
|
| N6 | 64FH-31020 | FORK ASSY(1070) | 2 |
HBR18-2
|
|
| N6 | K5251051503-04 | FORK ASSY(1200) | 2 |
HBR18-2
|
|
| N6 | 64FH-31030 | FORK ASSY(1200) | 2 |
HBR18-2
|
|
| N6 | K5251051505-04 | FORK ASSY(1520) | 2 |
HBR18-2
|
|
| N6 | 64FH-31050 | FORK ASSY(1520) | 2 |
HBR18-2
|
|
| N6 | K5251051502-04 | FORK ASSY(1070) | 2 |
HBR20-2
|
|
| N6 | 64FH-31020 | FORK ASSY(1070) | 2 |
HBR20-2
|
|
| N6 | K5251051503-04 | FORK ASSY(1200) | 2 |
HBR20-2
|
|
| N6 | 64FH-31030 | FORK ASSY(1200) | 2 |
HBR20-2
|
|
| N6 | K5251051505-04 | FORK ASSY(1520) | 2 |
HBR20-2
|
|
| N6 | 64FH-31050 | FORK ASSY(1520) | 2 |
HBR20-2
|
