4-SPOOL HYDRAULIC PIPING погрузчика электрического Hyundai HBR14/15/18/20II
4-SPOOL HYDRAULIC PIPING погрузчика электрического Hyundai HBR14/15/18/20II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7050
Наименование:4-SPOOL HYDRAULIC PIPING
Версия:

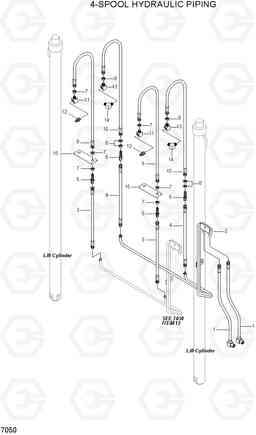

4-SPOOL HYDRAULIC PIPING HBR14/15/18/20II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 5607119507 | HOSE-HP | 2 | ||
| 10 | 5606217006 | HOSE-HP | 2 |
V250
|
|
| 10 | 5606218006 | HOSE-HP | 2 |
V270
|
|
| 10 | 5606219506 | HOSE-HP | 2 |
V300
|
|
| 10 | 5606221006 | HOSE-HP | 2 |
V330
|
|
| 10 | 5606222006 | HOSE-HP | 2 |
V350
|
|
| 10 | 5606223006 | HOSE-HP | 2 |
V370
|
|
| 11 | 6600255600 | Колено 90 | 2 | ||
| 12 | 5621000200 | NIPPLE | 2 | ||
| 13 | 5631013300 | Колено 90 | 2 | ||
| 14 | 56310111900 | ELBOW | 2 | ||
| 15 | 6600255700 | Опора | 2 | ||
| 2 | 6600254700 | Трубка в сборе | 1 | ||
| 3 | 5606105706 | HOSE-HP | 2 |
V250
|
|
| 3 | 5606106706 | HOSE-HP | 2 |
V270
|
|
| 3 | 5606108206 | HOSE-HP | 2 |
V300
|
|
| 3 | 5606109706 | HOSE-HP | 2 |
V330
|
|
| 3 | 5606110706 | HOSE-HP | 2 |
V350
|
|
| 3 | 5606111706 | HOSE-HP | 2 |
V370
|
|
| 3 | 5606138206 | HOSE-HP | 2 |
V400
|
|
| 3 | 5606145206 | HOSE-HP | 2 |
V450
|
|
| 3 | 5606150206 | HOSE-HP | 2 |
V500
|
|
| 3 | 5606155206 | HOSE-HP | 2 |
V550
|
|
| 4 | 5606205706 | HOSE-HP | 2 |
V250
|
|
| 4 | 5606206706 | HOSE-HP | 2 |
V270
|
|
| 4 | 5606208206 | HOSE-HP | 2 |
V300
|
|
| 4 | 5606209706 | HOSE-HP | 2 |
V330
|
|
| 4 | 5606210706 | HOSE-HP | 2 |
V350
|
|
| 4 | 5606211706 | HOSE-HP | 2 |
V370
|
|
| 4 | 5606238206 | HOSE-HP | 2 |
V400
|
|
| 4 | 5606245206 | HOSE-HP | 2 |
V450
|
|
| 4 | 5606250206 | HOSE-HP | 2 |
V500
|
|
| 4 | 5606255206 | HOSE-HP | 2 |
V550
|
|
| 5 | 6600255500 | NIPPLE-LONG | 2 | ||
| 6 | 6600248800 | NIPPLE-LONG | 2 | ||
| 7 | 6600258800 | Гайка | 6 | ||
| 8 | 1131007300 | Гайка | 6 | ||
| 9 | 5606117006 | HOSE-HP | 2 |
V250
|
|
| 9 | 5606118006 | HOSE-HP | 2 |
V270
|
|
| 9 | 5606119506 | HOSE-HP | 2 |
V300
|
|
| 9 | 5606121006 | HOSE-HP | 2 |
V330
|
|
| 9 | 5606122006 | HOSE-HP | 2 |
V350
|
|
| 9 | 5606123006 | HOSE-HP | 2 |
V370
|
