MAST HYDRAULIC PIPING(2 STAGE) погрузчика электрического Hyundai HBR14/15/18/20II
MAST HYDRAULIC PIPING(2 STAGE) погрузчика электрического Hyundai HBR14/15/18/20II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7120
Наименование:MAST HYDRAULIC PIPING(2 STAGE)
Версия:2003. 6.30 REV.4

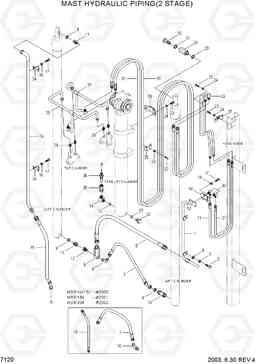

MAST HYDRAULIC PIPING(2 STAGE) HBR14/15/18/20II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 5651042700-01 | Трубка | 1 | ||
| 10 | 28M110002 | Штуцер -90 | 1 |
HBR14/15-2
|
|
| 10 | 28M110002 | Штуцер -90 | 1 |
HBR18-2
|
|
| 10 | 28M110002 | Штуцер -90 | 1 |
HBR20-2
|
|
| 11 | 28K110302 | Соединитель | 2 | ||
| 12 | 5659053600 | ADAPTER-SWIVEL | 1 | ||
| 13 | 2Q1101800 | Кольцо уплотнительное (О-кольцо) | 2 | ||
| 14 | 5632001700 | Колено 90 | 1 | ||
| 15 | 5606303501 | HOSE-HP | 1 |
HBR14/15-2
|
|
| 15 | 29N008505 | HOSE ASSY-THD 0X0 | 1 |
HBR14/15-2
|
|
| 15 | 5606303501 | HOSE-HP | 1 |
HBR18-2
|
|
| 15 | 29N008505 | HOSE ASSY-THD 0X0 | 1 |
HBR18-2
|
|
| 15 | 5606303501 | HOSE-HP | 1 |
HBR20-2
|
|
| 15 | 29N008505 | HOSE ASSY-THD 0X0 | 1 |
HBR20-2
|
|
| 16 | 6600358902-03 | Трубка | 1 |
V300
|
|
| 16 | 6600358903-03 | Трубка | 1 |
V330
|
|
| 17 | 201508025 | Болт с шестигранной головкой (под шестигранник) | 3 | ||
| 18 | 233308000 | Шайба пружинная | 3 | ||
| 19 | 5631024800 | ELBOW ASSY | 1 | ||
| 2 | 201510025 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 20 | 28N450001 | Колено 90 | 2 | ||
| 21 | 5606108504 | HOSE ASSY-THD 0X0 | 2 |
V300
|
|
| 21 | 5606110004 | HOSE ASSY-THD 0X0 | 2 |
V330
|
|
| 22 | FMB0100380-01 | PIPE ASSY-TILT | 1 | ||
| 23 | 201306025 | Болт с шестигранной головкой (под шестигранник) | 5 | ||
| 24 | 233306000 | Шайба пружинная | 5 | ||
| 25 | 5606130004 | HOSE ASSY-THD 0X0 | 2 |
V300
|
|
| 25 | 5606131504 | HOSE ASSY-THD 0X0 | 2 |
V330
|
|
| 26 | FMB0100290-01 | TILT PIPE | 1 | ||
| 27 | FMB0100300-01 | TILT PIPE | 1 | ||
| 28 | 28K440301 | Соединитель | 4 | ||
| 29 | 2Q1101400 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 3 | 233310000 | Шайба пружинная | 2 | ||
| 30 | 5645004000-01 | Пробка (заглушка) | 1 | ||
| 31 | 1331000200 | Упаковка | 1 | ||
| 32 | 201516010 | Болт с шестигранной головкой (под шестигранник) | 1 | ||
| 33 | 5645003800 | Пробка (заглушка) | 1 | ||
| 34 | 5672139000 | Трубный зажим | 2 | ||
| 35 | 5672175500 | Зажим | 1 | ||
| 36 | FMB0000330 | Зажим | 1 | ||
| 37 | 5672031900-01 | Трубный зажим | 1 | ||
| 38 | FMC0002120 | DOWN SAFETY VALVE | 1 |
HBR14-2
|
|
| 38 | FMC0002140 | VALVE-DOWN SAFETY | 1 |
HBR14-2
|
|
| 38 | FMC0002160 | VALVE-DOWN SAFETY | 1 |
HBR14-2
|
|
| 38 | FMC0002120 | DOWN SAFETY VALVE | 1 |
HBR15-2
|
|
| 38 | FMC0002140 | VALVE-DOWN SAFETY | 1 |
HBR15-2
|
|
| 38 | FMC0002160 | VALVE-DOWN SAFETY | 1 |
HBR15-2
|
|
| 38 | FMC0002120 | DOWN SAFETY VALVE | 1 |
HBR18-2
|
|
| 38 | FMC0002140 | VALVE-DOWN SAFETY | 1 |
HBR18-2
|
|
| 38 | FMC0002160 | VALVE-DOWN SAFETY | 1 |
HBR18-2
|
|
| 38 | FMC0002120 | DOWN SAFETY VALVE | 1 |
HBR20-2
|
|
| 38 | FMC0002140 | VALVE-DOWN SAFETY | 1 |
HBR20-2
|
|
| 38 | FMC0002160 | VALVE-DOWN SAFETY | 1 |
HBR20-2
|
|
| 39 | B21610150 | ADAPTOR-SAFETY V/V | 1 |
HBR14/15-2
|
|
| 39 | B21610150 | ADAPTOR-SAFETY V/V | 1 |
HBR18-2
|
|
| 39 | B21610150 | ADAPTOR-SAFETY V/V | 1 |
HBR20-2
|
|
| 4 | 231110000 | Плоская шайба | 2 | ||
| 5 | 5606305501 | HOSE ASSY-THD 0X0 | 1 | ||
| 6 | 5813011300-02 | FLOW REGULATOR VALVE | 1 | ||
| 7 | 5606204501 | HOSE ASSY-THD 0X0 | 1 |
HBR14/15-2
|
|
| 7 | B21610160 | HOSE ASSY-THD 0X45 | 1 |
HBR14/15-2
|
|
| 7 | 5606204501 | HOSE ASSY-THD 0X0 | 1 |
HBR18-2
|
|
| 7 | B21610160 | HOSE ASSY-THD 0X45 | 1 |
HBR18-2
|
|
| 7 | 5606204501 | HOSE ASSY-THD 0X0 | 1 |
HBR20-2
|
|
| 7 | B21610160 | HOSE ASSY-THD 0X45 | 1 |
HBR20-2
|
|
| 8 | 28M450002 | Штуцер -90 | 1 | ||
| 9 | 2Q1101400 | Кольцо уплотнительное (О-кольцо) | 3 | ||
| N10 | 6600254300-01 | VLV-FLOW PROTECT | 1 |
HBR14/15-2
|
|
| N10 | 6600254300-01 | VLV-FLOW PROTECT | 1 |
HBR18-2
|
|
| N10 | 6600254300-01 | VLV-FLOW PROTECT | 1 |
HBR20-2
|
