SIDE SHIFT погрузчика электрического Hyundai HBR14/15/18/20II
SIDE SHIFT погрузчика электрического Hyundai HBR14/15/18/20II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7280
Наименование:SIDE SHIFT
Версия:

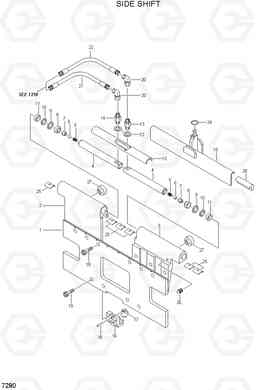

SIDE SHIFT HBR14/15/18/20II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | @ | CARRIAGE | 1 | ||
| 10 | @ | WASHER | 2 | ||
| 11 | @ | RING-GROOVE | 2 | ||
| 12 | @ | PLATE-PROTECTION | 1 | ||
| 13 | @ | SCREW-SET | 1 | ||
| 14 | @ | SCREW-SET | 1 | ||
| 15 | @ | GUIDE | 1 | ||
| 16 | @ | HOOK | 1 | ||
| 17 | @ | ROLLER | 2 | ||
| 18 | @ | PIN-FIXING | 2 | ||
| 19 | @ | ELBOW | 2 | ||
| 2 | @ | HOUSING-RH | 1 | ||
| 20 | @ | SCREW-SET | 10 | ||
| 21 | @ | PIPE | 2 | ||
| 22 | @ | HOSE-LINE | 1 | ||
| 23 | @ | HOSE-LINE | 1 | ||
| 24 | @ | CLUTCH-QUICK | 2 | ||
| 25 | @ | RING-SEAL | 2 | ||
| 26 | @ | O-RING | 1 | ||
| 27 | @ | SLIDING PARTS | 6 | ||
| 28 | @ | NIPPLE-GREASE | 6 | ||
| 29 | @ | PARTITION PARTS | 2 | ||
| 3 | @ | HOUSING-LH | 1 | ||
| 30 | @ | ELEMENT-INTERMEDIATE | 4 | ||
| 4 | @ | ROD-PISTON | 1 | ||
| 5 | @ | RING-PRESSURE | 2 | ||
| 6 | @ | BALL | 2 | ||
| 7 | @ | PLUG-SCREW | 2 | ||
| 8 | @ | STRIPER | 2 | ||
| 9 | @ | CIRCLIP | 2 | ||
| N* | FMC0400160 | SIDE SHIFT ASSY | 1 |
