HARNESS погрузчика электрического Hyundai HBR14/15/18-7
HARNESS погрузчика электрического Hyundai HBR14/15/18-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1030
Наименование:HARNESS
Версия:2007. 7.31 REV.7G

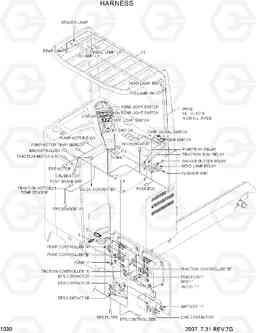

HARNESS HBR14/15/18-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 21FP-75051 | HARNESS-MAIN | 1 |
HBR14-7,UL
|
|
| 1 | 21FP-75052 | HARNESS-MAIN | 1 |
HBR14-7,UL
|
|
| 1 | 21FP-75053 | HARNESS-MAIN | 1 |
HBR14-7,UL
|
|
| 1 | 21FP-75054 | HARNESS-MAIN | 1 |
HBR14-7,UL
|
|
| 1 | 21FP-75051 | HARNESS-MAIN | 1 |
HBR15-7,UL
|
|
| 1 | 21FP-75052 | HARNESS-MAIN | 1 |
HBR15-7,UL
|
|
| 1 | 21FP-75053 | HARNESS-MAIN | 1 |
HBR15-7,UL
|
|
| 1 | 21FP-75054 | HARNESS-MAIN | 1 |
HBR15-7,UL
|
|
| 1 | 21FP-75051 | HARNESS-MAIN | 1 |
HBR18-7,UL
|
|
| 1 | 21FP-75052 | HARNESS-MAIN | 1 |
HBR18-7,UL
|
|
| 1 | 21FP-75053 | HARNESS-MAIN | 1 |
HBR18-7,UL
|
|
| 1 | 21FP-75054 | HARNESS-MAIN | 1 |
HBR18-7,UL
|
|
| 1 | 21FP-75100 | HARNESS-MAIN | 1 |
HBR14-7,NON UL
|
|
| 1 | 21FP-75101 | HARNESS-MAIN | 1 |
HBR14-7,NON UL
|
|
| 1 | 21FP-75102 | HARNESS-MAIN | 1 |
HBR14-7,NON UL
|
|
| 1 | 21FP-75100 | HARNESS-MAIN | 1 |
HBR15-7,NON UL
|
|
| 1 | 21FP-75101 | HARNESS-MAIN | 1 |
HBR15-7,NON UL
|
|
| 1 | 21FP-75102 | HARNESS-MAIN | 1 |
HBR15-7,NON UL
|
|
| 1 | 21FP-75100 | HARNESS-MAIN | 1 |
HBR18-7,NON UL
|
|
| 1 | 21FP-75101 | HARNESS-MAIN | 1 |
HBR18-7,NON UL
|
|
| 1 | 21FP-75102 | HARNESS-MAIN | 1 |
HBR18-7,NON UL
|
|
| 1-1 | B71890030 | поглотитель перенапряжений | 1 | ||
| 11 | @ | HARNESS-ACCESSORY | 1 |
SEE 6030 1-7
|
|
| 2 | S543-200002 | Зажим трубки | 2 | ||
| 3 | S035-081526 | Болт | 2 |
HBR14-7
|
|
| 3 | S035-081522 | Болт | 2 |
HBR14-7
|
|
| 3 | S035-081526 | Болт | 2 |
HBR15-7
|
|
| 3 | S035-081522 | Болт | 2 |
HBR15-7
|
|
| 3 | S035-081526 | Болт | 2 |
HBR18-7
|
|
| 3 | S035-081522 | Болт | 2 |
HBR18-7
|
