PUMP MOTOR погрузчика электрического Hyundai HBR14/15/18-7
PUMP MOTOR погрузчика электрического Hyundai HBR14/15/18-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1060
Наименование:PUMP MOTOR
Версия:2005.12.31 REV.5M

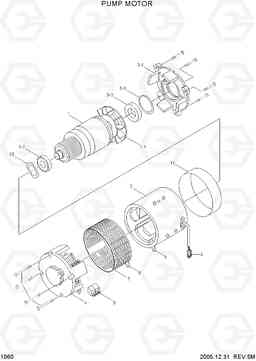

PUMP MOTOR HBR14/15/18-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 21FP-52070 | PUMP MOTOR | 1 |
SEE 1020
|
|
| * | 21FP-52570 | PUMP MOTOR-EE | 1 |
UL-EE,HBR14-7
|
|
| * | 21FP-52570 | PUMP MOTOR-EE | 1 |
UL-EE,HBR15-7
|
|
| * | 21FP-52570 | PUMP MOTOR-EE | 1 |
UL-EE,HBR18-7
|
|
| 1 | 21FP-54010 | арматура в сборе | 1 | ||
| 1-1 | 21FP-53100 | Вентилятор | 1 | ||
| 1-2 | 21FH-79620 | Подшипник | 1 | ||
| 10 | 21FH-79050 | Волнистая шайба | 1 | ||
| 11 | 21FP-52720 | COVER-FAN,EE | 1 |
UL-EE,HBR14-7
|
|
| 11 | 21FP-52720 | COVER-FAN,EE | 1 |
UL-EE,HBR15-7
|
|
| 11 | 21FP-52720 | COVER-FAN,EE | 1 |
UL-EE,HBR18-7
|
|
| 2 | 21FP-54020 | FIELD & FRAME ASSY | 1 | ||
| 3 | 21FP-54030 | DRIVE ENDHEAD ASSY | 1 | ||
| 3-1 | 21FP-54110 | ENDBELL DE | 1 | ||
| 3-2 | 21FP-53120 | Подшипник | 1 | ||
| 3-3 | 21FP-53130 | Кольцо | 1 | ||
| 4 | 21FP-54040 | ENDBELL COMM ASSY | 1 | ||
| 4-1 | 21FP-54140 | ENDBELL-COMM | 1 |
NOT SHWON
|
|
| 4-2 | 21FP-54150 | BRUSH PLATE ASSY | 1 |
NOT SHWON
|
|
| 5 | 21FP-54050 | BRUSH KIT | 1 | ||
| 5-1 | 21FP-54160 | Щетки | 4 |
NOT SHWON
|
|
| 6 | 21FH-79160 | Термостат в сборе | 1 | ||
| 7 | 21FP-54060 | HEADBAND ASSY | 1 | ||
| 7 | 21FP-52710 | COVER-BRUSH,EE | 1 |
UL-EE,HBR14-7
|
|
| 7 | 21FP-52710 | COVER-BRUSH,EE | 1 |
UL-EE,HBR15-7
|
|
| 7 | 21FP-52710 | COVER-BRUSH,EE | 1 |
UL-EE,HBR18-7
|
|
| 8 | 21FP-54070 | TERMINAL | 1 | ||
| 9 | 21FH-79290 | TERMINAL | 1 |
