CONTROLLER(48V, STANDARD) погрузчика электрического Hyundai HBR14/15/18-7
CONTROLLER(48V, STANDARD) погрузчика электрического Hyundai HBR14/15/18-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1070
Наименование:CONTROLLER(48V, STANDARD)
Версия:2006. 6.30 REV.6F

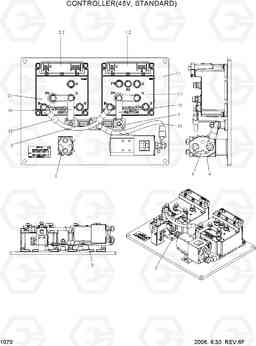

CONTROLLER(48V, STANDARD) HBR14/15/18-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 21FP-78010 | CONTROL PANEL ASSY | 1 |
HBR14-7
|
|
| * | 21FP-78011 | CONTROL PANEL ASSY | 1 |
HBR14-7
|
|
| * | 21FP-78010 | CONTROL PANEL ASSY | 1 |
HBR15-7
|
|
| * | 21FP-78011 | CONTROL PANEL ASSY | 1 |
HBR15-7
|
|
| * | 21FP-78010 | CONTROL PANEL ASSY | 1 |
HBR18-7
|
|
| * | 21FP-78011 | CONTROL PANEL ASSY | 1 |
HBR18-7
|
|
| * | 21FP-78350 | CONTROL PANEL ASSY-EE | 1 |
UL-EE,HBR14-7
|
|
| * | 21FP-78350 | CONTROL PANEL ASSY-EE | 1 |
UL-EE,HBR15-7
|
|
| * | 21FP-78350 | CONTROL PANEL ASSY-EE | 1 |
UL-EE,HBR18-7
|
|
| 1 | 21FP-78020 | SEM-TRACTION(350A) | 1 | ||
| 1-1 | 21FP-78300 | TRACTION FRAME(PP743) | 1 | ||
| 10 | 21FP-78070 | LINK (FUSE-B+) | 2 | ||
| 12 | 21FY-78140 | CABLE ASSY | 1 | ||
| 13 | 21FP-78090 | CABLE ASSY(FUSE-MAIN) | 1 | ||
| 2 | 21FP-78030 | PPK-PUMP(450A) | 1 | ||
| 2-2 | 21FP-78330 | PUMP LOGIC | 1 | ||
| 3 | 21FP-78040 | CONTACTOR SW80B 48V | 1 | ||
| 3 | 21FP-78360 | CONTACTOR SW80 48V | 1 |
UL-EE,HBR14-7
|
|
| 3 | 21FP-78360 | CONTACTOR SW80 48V | 1 |
UL-EE,HBR15-7
|
|
| 3 | 21FP-78360 | CONTACTOR SW80 48V | 1 |
UL-EE,HBR18-7
|
|
| 4 | 21FH-78080 | CONTACTOR (SW200) | 1 | ||
| 4 | 21FP-78370 | CONTACT (SW200N) | 1 |
UL-EE,HBR14-7
|
|
| 4 | 21FP-78370 | CONTACT (SW200N) | 1 |
UL-EE,HBR15-7
|
|
| 4 | 21FP-78370 | CONTACT (SW200N) | 1 |
UL-EE,HBR18-7
|
|
| 5 | 21FP-78050 | BRACKET CONTROL/MTG | 1 | ||
| 6 | 21FP-78140 | RESISTOR SUB-ASSY | 1 | ||
| 7 | 21FP-78060 | TERMINAL SUB-ASSY | 3 | ||
| 8 | 21FP-78120 | FUSE 325A | 1 | ||
| 9 | 21FP-78110 | предохранитель 250а | 1 | ||
| N1-2 | 21FP-78310 | TRACTION LOGIC | 1 | ||
| N11 | 21FP-78080 | BASEPLATE (9.5T) | 1 | ||
| N2-1 | 21FP-78320 | PUMP FRAME(PP344P) | 1 |
