Каталог запчастей
-
Hyundai
-
HBR14/15/18-7
- OVERHEAD GUARD
OVERHEAD GUARD погрузчика электрического Hyundai HBR14/15/18-7
OVERHEAD GUARD погрузчика электрического Hyundai HBR14/15/18-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6030
Наименование:OVERHEAD GUARD
Версия:2008. 4.30 REV.8D

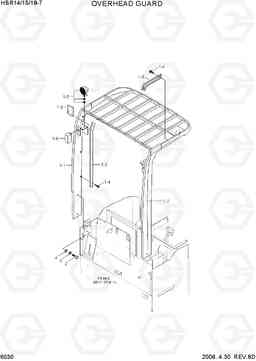

OVERHEAD GUARD HBR14/15/18-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71FP-32000 | HEAD GUARD ASSY | 1 |
HBR14-7
|
|
| 1 | 71FP-32001 | HEAD GUARD ASSY | 1 |
HBR14-7
|
|
| 1 | 71FP-32002 | HEAD GUARD ASSY | 1 |
HBR14-7
|
|
| 1 | 71FP-32000 | HEAD GUARD ASSY | 1 |
HBR15-7
|
|
| 1 | 71FP-32001 | HEAD GUARD ASSY | 1 |
HBR15-7
|
|
| 1 | 71FP-32002 | HEAD GUARD ASSY | 1 |
HBR15-7
|
|
| 1 | 71FP-32000 | HEAD GUARD ASSY | 1 |
HBR18-7
|
|
| 1 | 71FP-32001 | HEAD GUARD ASSY | 1 |
HBR18-7
|
|
| 1 | 71FP-32002 | HEAD GUARD ASSY | 1 |
HBR18-7
|
|
| 1-1 | 71FP-30012 | HEAD GUARD WA | 1 |
HBR14-7
|
|
| 1-1 | 71FP-30013 | HEAD GUARD WA | 1 |
HBR14-7
|
|
| 1-1 | 71FP-30014 | HEAD GUARD WA | 1 |
HBR14-7
|
|
| 1-1 | 71FP-30015 | HEAD GUARD WA | 1 |
HBR14-7
|
|
| 1-1 | 71FP-30012 | HEAD GUARD WA | 1 |
HBR15-7
|
|
| 1-1 | 71FP-30013 | HEAD GUARD WA | 1 |
HBR15-7
|
|
| 1-1 | 71FP-30014 | HEAD GUARD WA | 1 |
HBR15-7
|
|
| 1-1 | 71FP-30015 | HEAD GUARD WA | 1 |
HBR15-7
|
|
| 1-1 | 71FP-30012 | HEAD GUARD WA | 1 |
HBR18-7
|
|
| 1-1 | 71FP-30013 | HEAD GUARD WA | 1 |
HBR18-7
|
|
| 1-1 | 71FP-30014 | HEAD GUARD WA | 1 |
HBR18-7
|
|
| 1-1 | 71FP-30015 | HEAD GUARD WA | 1 |
HBR18-7
|
|
| 1-2 | 71FP-30022 | COVER-WIRE | 1 | ||
| 1-3 | 71FP-30041 | COVER-WIRE | 1 | ||
| 1-4 | S131-051046 | SCREW-W/WASHER | 5 | ||
| 1-5 | F12840010 | LAMP SUB ASSY-WORK | 2 |
HBR14-7
|
|
| 1-5 | F12840011 | LAMP SUB ASSY-WORK | 2 |
HBR14-7
|
|
| 1-5 | F12840010 | LAMP SUB ASSY-WORK | 2 |
HBR15-7
|
|
| 1-5 | F12840011 | LAMP SUB ASSY-WORK | 2 |
HBR15-7
|
|
| 1-5 | F12840010 | LAMP SUB ASSY-WORK | 2 |
HBR18-7
|
|
| 1-5 | F12840011 | LAMP SUB ASSY-WORK | 2 |
HBR18-7
|
|
| 1-5-1 | 21HA-12010 | лампа (12v 55w, h3) | 1 |
NOT SHOWN
|
|
| 1-6 | 21FH-77030 | лампа сигнала поворота | 2 | ||
| 1-61 | S861-072100 | лампа 12В / 21Вт | 2 |
NOT SHOWN
|
|
| 1-7 | 21FP-75040 | HARNESS-ACCESSORY | 1 | ||
| 1-8 | 71FP-30050 | Держатель | 1 |
HBR14-7
|
|
| 1-8 | 71FP-30050 | Держатель | 1 |
HBR15-7
|
|
| 1-8 | 71FP-30050 | Держатель | 1 |
HBR18-7
|
|
| 2 | S017-140306 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 3 | S411-140006 | Шайба пружинная | 4 | ||
| 4 | S403-142006 | Плоская шайба | 4 |
