OUTER MAST(V-MAST) погрузчика электрического Hyundai HBR14/15/18-7
OUTER MAST(V-MAST) погрузчика электрического Hyundai HBR14/15/18-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7010
Наименование:OUTER MAST(V-MAST)
Версия:2005. 7.30 REV.5G

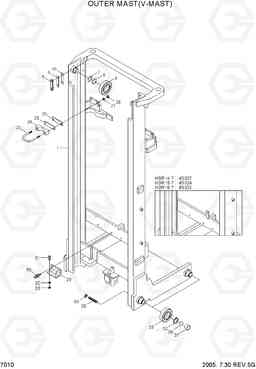

OUTER MAST(V-MAST) HBR14/15/18-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 61FP-11011 | OUTER MAST WA | 1 |
V250,HBR14-7
|
|
| 1 | 61FP-11012 | OUTER MAST WA | 1 |
V250,HBR14-7
|
|
| 1 | 61FP-11011 | OUTER MAST WA | 1 |
V250,HBR15-7
|
|
| 1 | 61FP-11012 | OUTER MAST WA | 1 |
V250,HBR15-7
|
|
| 1 | 61FP-11011 | OUTER MAST WA | 1 |
V250,HBR18-7
|
|
| 1 | 61FP-11012 | OUTER MAST WA | 1 |
V250,HBR18-7
|
|
| 1 | 61FP-11021 | OUTER MAST WA | 1 |
V270,HBR14-7
|
|
| 1 | 61FP-11022 | OUTER MAST WA | 1 |
V270,HBR14-7
|
|
| 1 | 61FP-11021 | OUTER MAST WA | 1 |
V270,HBR15-7
|
|
| 1 | 61FP-11022 | OUTER MAST WA | 1 |
V270,HBR15-7
|
|
| 1 | 61FP-11021 | OUTER MAST WA | 1 |
V270,HBR18-7
|
|
| 1 | 61FP-11022 | OUTER MAST WA | 1 |
V270,HBR18-7
|
|
| 1 | 61FP-11031 | OUTER MAST WA | 1 |
V300,HBR14-7
|
|
| 1 | 61FP-11032 | OUTER MAST WA | 1 |
V300,HBR14-7
|
|
| 1 | 61FP-11031 | OUTER MAST WA | 1 |
V300,HBR15-7
|
|
| 1 | 61FP-11032 | OUTER MAST WA | 1 |
V300,HBR15-7
|
|
| 1 | 61FP-11031 | OUTER MAST WA | 1 |
V300,HBR18-7
|
|
| 1 | 61FP-11032 | OUTER MAST WA | 1 |
V300,HBR18-7
|
|
| 1 | 61FP-11041 | OUTER MAST WA | 1 |
V330,HBR14-7
|
|
| 1 | 61FP-11042 | OUTER MAST WA | 1 |
V330,HBR14-7
|
|
| 1 | 61FP-11041 | OUTER MAST WA | 1 |
V330,HBR15-7
|
|
| 1 | 61FP-11042 | OUTER MAST WA | 1 |
V330,HBR15-7
|
|
| 1 | 61FP-11041 | OUTER MAST WA | 1 |
V330,HBR18-7
|
|
| 1 | 61FP-11042 | OUTER MAST WA | 1 |
V330,HBR18-7
|
|
| 1 | 61FP-11051 | OUTER MAST WA | 1 |
V350,HBR14-7
|
|
| 1 | 61FP-11052 | OUTER MAST WA | 1 |
V350,HBR14-7
|
|
| 1 | 61FP-11051 | OUTER MAST WA | 1 |
V350,HBR15-7
|
|
| 1 | 61FP-11052 | OUTER MAST WA | 1 |
V350,HBR15-7
|
|
| 1 | 61FP-11051 | OUTER MAST WA | 1 |
V350,HBR18-7
|
|
| 1 | 61FP-11052 | OUTER MAST WA | 1 |
V350,HBR18-7
|
|
| 1 | 61FP-11061 | OUTER MAST WA | 1 |
V370,HBR14-7
|
|
| 1 | 61FP-11062 | OUTER MAST WA | 1 |
V370,HBR14-7
|
|
| 1 | 61FP-11061 | OUTER MAST WA | 1 |
V370,HBR15-7
|
|
| 1 | 61FP-11062 | OUTER MAST WA | 1 |
V370,HBR15-7
|
|
| 1 | 61FP-11061 | OUTER MAST WA | 1 |
V370,HBR18-7
|
|
| 1 | 61FP-11062 | OUTER MAST WA | 1 |
V370,HBR18-7
|
|
| 1 | 61FP-11071 | OUTER MAST WA | 1 |
V400,HBR14-7
|
|
| 1 | 61FP-11072 | OUTER MAST WA | 1 |
V400,HBR14-7
|
|
| 1 | 61FP-11071 | OUTER MAST WA | 1 |
V400,HBR15-7
|
|
| 1 | 61FP-11072 | OUTER MAST WA | 1 |
V400,HBR15-7
|
|
| 1 | 61FP-11071 | OUTER MAST WA | 1 |
V400,HBR18-7
|
|
| 1 | 61FP-11072 | OUTER MAST WA | 1 |
V400,HBR18-7
|
|
| 1 | 61FP-11081 | OUTER MAST WA | 1 |
V450,HBR14-7
|
|
| 1 | 61FP-11082 | OUTER MAST WA | 1 |
V450,HBR14-7
|
|
| 1 | 61FP-11081 | OUTER MAST WA | 1 |
V450,HBR15-7
|
|
| 1 | 61FP-11082 | OUTER MAST WA | 1 |
V450,HBR15-7
|
|
| 1 | 61FP-11081 | OUTER MAST WA | 1 |
V450,HBR18-7
|
|
| 1 | 61FP-11082 | OUTER MAST WA | 1 |
V450,HBR18-7
|
|
| 1 | 61FP-11091 | OUTER MAST WA | 1 |
V500,HBR14-7
|
|
| 1 | 61FP-11092 | OUTER MAST WA | 1 |
V500,HBR14-7
|
|
| 1 | 61FP-11091 | OUTER MAST WA | 1 |
V500,HBR15-7
|
|
| 1 | 61FP-11092 | OUTER MAST WA | 1 |
V500,HBR15-7
|
|
| 1 | 61FP-11091 | OUTER MAST WA | 1 |
V500,HBR18-7
|
|
| 1 | 61FP-11092 | OUTER MAST WA | 1 |
V500,HBR18-7
|
|
| 1 | 61FP-11101 | OUTER MAST WA | 1 |
V550,HBR14-7
|
|
| 1 | 61FP-11102 | OUTER MAST WA | 1 |
V550,HBR14-7
|
|
| 1 | 61FP-11101 | OUTER MAST WA | 1 |
V550,HBR15-7
|
|
| 1 | 61FP-11102 | OUTER MAST WA | 1 |
V550,HBR15-7
|
|
| 1 | 61FP-11101 | OUTER MAST WA | 1 |
V550,HBR18-7
|
|
| 1 | 61FP-11102 | OUTER MAST WA | 1 |
V550,HBR18-7
|
|
| 10 | FMD0000110 | прокладка (0.5T) | 4 | ||
| 10 | FMC0000160 | прокладка (0.5T) | 4 | ||
| 12 | S601-040004 | Кольцо стопорное | 4 | ||
| 23 | 63FN-18010 | U-образный болт (скоба, П образный) / хомут | 2 | ||
| 24 | 63FN-18020 | Держатель | 2 | ||
| 25 | 63FN-18030 | прокладка (0.5T) | 2 | ||
| 26 | 63FN-18040 | Прокладка регулировочная | 2 | ||
| 27 | S403-081002 | Плоская шайба | 4 | ||
| 28 | S275-080002 | Гайка самоблокирующаяся | 4 | ||
| 29 | 5223031100B-02 | Стопор внутренний | 1 | ||
| 30 | S037-122522 | Болт | 2 | ||
| 31 | 5223018700 | Резиновая подушка | 2 | ||
| 32 | S411-080002 | Шайба пружинная | 2 | ||
| 33 | S203-081002 | Гайка | 2 | ||
| 35 | B12500010 | Подшипник роликовый | 4 | ||
| 36 | 5223031400 | Задняя панель | 4 | ||
| 37 | 5223031300-01 | втулка боковое усилие | 4 | ||
| 38 | S111-160502 | Комплект винтов шестигранников (торцевой ключ) | 4 | ||
| 39 | S205-161002 | Гайка | 4 | ||
| 5 | 6600181000-01 | BEARING-LIFT ROLLER | 2 | ||
| 6 | 5261101800 | прокладка (0.5T) | 2 | ||
| 7 | 5261101900 | Прокладка регулировочная | 2 | ||
| 8 | 6600354700 | лайнер резервного копирования | 2 | ||
| 9 | FMC0000150 | Прокладка регулировочная | 4 |
