CARR & BACKREST(TF-MAST,HOOK) погрузчика электрического Hyundai HBR14/15/18-7
CARR & BACKREST(TF-MAST,HOOK) погрузчика электрического Hyundai HBR14/15/18-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7141
Наименование:CARR & BACKREST(TF-MAST,HOOK)
Версия:2006. 7.31 REV.6G

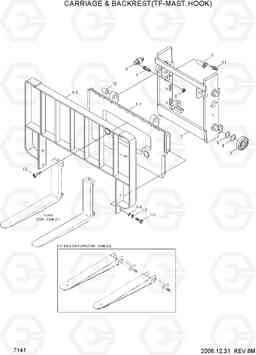

CARR & BACKREST(TF-MAST,HOOK) HBR14/15/18-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 63FP-27020 | CARR & BACKREST ASSY | 1 |
HBR14-7
|
|
| * | 63FP-27021 | CARR & BACKREST ASSY | 1 |
HBR14-7
|
|
| * | 63FP-27020 | CARR & BACKREST ASSY | 1 |
HBR15-7
|
|
| * | 63FP-27021 | CARR & BACKREST ASSY | 1 |
HBR15-7
|
|
| * | 63FP-27020 | CARR & BACKREST ASSY | 1 |
HBR18-7
|
|
| * | 63FP-27021 | CARR & BACKREST ASSY | 1 |
HBR18-7
|
|
| 1 | 61FP-25020 | FINGER BAR/BKREST SUB | 1 |
HBR14-7
|
|
| 1 | 63FP-25020 | FINGER BAR/BKREST SUB ASS'Y | 1 |
HBR14-7
|
|
| 1 | 63FP-25021 | FINGER BAR/BKREST SUB ASS'Y | 1 | ||
| 1 | 61FP-25020 | FINGER BAR/BKREST SUB | 1 |
HBR15-7
|
|
| 1 | 63FP-25020 | FINGER BAR/BKREST SUB ASS'Y | 1 |
HBR15-7
|
|
| 1 | 63FP-25021 | FINGER BAR/BKREST SUB ASS'Y | 1 | ||
| 1 | 61FP-25020 | FINGER BAR/BKREST SUB | 1 |
HBR18-7
|
|
| 1 | 63FP-25020 | FINGER BAR/BKREST SUB ASS'Y | 1 |
HBR18-7
|
|
| 1 | 63FP-25021 | FINGER BAR/BKREST SUB ASS'Y | 1 | ||
| 1-1 | 61FP-22020 | FINGER BAR(HOOK) | 1 |
HBR14-7
|
|
| 1-1 | 63FP-22020 | FINGER BAR(HOOK TYPE) | 1 |
HBR14-7
|
|
| 1-1 | 63FP-22020 | FINGER BAR(HOOK TYPE) | 1 | ||
| 1-1 | 61FP-22020 | FINGER BAR(HOOK) | 1 |
HBR15-7
|
|
| 1-1 | 63FP-22020 | FINGER BAR(HOOK TYPE) | 1 |
HBR15-7
|
|
| 1-1 | 63FP-22020 | FINGER BAR(HOOK TYPE) | 1 | ||
| 1-1 | 61FP-22020 | FINGER BAR(HOOK) | 1 |
HBR18-7
|
|
| 1-1 | 63FP-22020 | FINGER BAR(HOOK TYPE) | 1 |
HBR18-7
|
|
| 1-1 | 63FP-22020 | FINGER BAR(HOOK TYPE) | 1 | ||
| 1-2 | 61FP-23330 | спинка ва | 1 | ||
| 1-3 | S017-160352 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 1-4 | S403-161002 | Плоская шайба | 4 | ||
| 1-5 | S411-160002 | Шайба пружинная | 4 | ||
| 10 | S731-025030 | Втулка | 2 | ||
| 11 | S035-082022 | Болт | 2 | ||
| 12 | S109-120306 | Болт с шестигранной головкой (под шестигранник) | 1 |
HBR14-7
|
|
| 12 | S109-120306 | Болт с шестигранной головкой (под шестигранник) | 1 |
HBR15-7
|
|
| 12 | S109-120306 | Болт с шестигранной головкой (под шестигранник) | 1 |
HBR18-7
|
|
| 2 | 63FP-21020 | CARRIAGE WA(HOOK) | 1 | ||
| 3 | 6600181000-01 | BEARING-LIFT ROLLER | 4 | ||
| 4 | 5261101800 | прокладка (0.5T) | 4 | ||
| 5 | 5261101900 | Прокладка регулировочная | 4 | ||
| 6 | 6600207000 | подшипник сторона ролик | 2 | ||
| 7 | F11500660 | Регулировочный болт | 4 | ||
| 8 | S205-161002 | Гайка | 4 | ||
| 9 | 1223018300 | контактный бар палец | 2 |
