FRAME погрузчика электрического Hyundai HBR20/25-7
FRAME погрузчика электрического Hyundai HBR20/25-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6010
Наименование:FRAME
Версия:2010.11.30 REV.10L

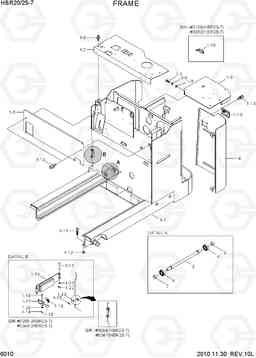

FRAME HBR20/25-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | @ | FRAME | 1 | ||
| 1 | 41FS-11001 | FRAME ASSY | 1 |
HBR20-7,STD
|
|
| 1 | 41FS-11002 | FRAME ASSY | 1 |
HBR20-7,STD
|
|
| 1 | 41FS-11003 | FRAME ASSY | 1 |
HBR20-7,STD
|
|
| 1 | 41FS-12001 | FRAME ASSY | 1 |
HBR20-7,WIDE
|
|
| 1 | 41FS-12002 | FRAME ASSY | 1 |
HBR20-7,WIDE
|
|
| 1 | 41FS-12003 | FRAME ASSY | 1 |
HBR20-7,WIDE
|
|
| 1 | 41FS-21001 | FRAME ASSY | 1 |
HBR25-7,STD
|
|
| 1 | 41FS-21002 | FRAME ASSY | 1 |
HBR25-7,STD
|
|
| 1 | 41FS-21003 | FRAME ASSY | 1 |
HBR25-7,STD
|
|
| 1 | 41FS-22001 | FRAME ASSY | 1 |
HBR25-7,WIDE
|
|
| 1 | 41FS-22002 | FRAME ASSY | 1 |
HBR25-7,WIDE
|
|
| 1 | 41FS-22003 | FRAME ASSY | 1 |
HBR25-7,WIDE
|
|
| 1 | 41FS-23000 | FRAME ASSY | 1 |
HBR25-7/TF750
|
|
| 1 | 41FS-24000 | FRAME ASSY | 1 |
KIA-GEORGIA
|
|
| 1-1 | 41FS-10012 | FRAME WA | 1 |
HBR20-7,STD
|
|
| 1-1 | 41FS-10013 | FRAME WA | 1 |
HBR20-7,STD
|
|
| 1-1 | 41FS-10014 | FRAME WA | 1 |
HBR20-7,STD
|
|
| 1-1 | 41FS-10015 | FRAME WA | 1 |
HBR20-7,STD
|
|
| 1-1 | 41FS-10022 | FRAME WA | 1 |
HBR20-7,WIDE
|
|
| 1-1 | 41FS-10023 | FRAME WA | 1 |
HBR20-7,WIDE
|
|
| 1-1 | 41FS-10024 | FRAME WA | 1 |
HBR20-7,WIDE
|
|
| 1-1 | 41FS-10025 | FRAME WA | 1 |
HBR20-7,WIDE
|
|
| 1-1 | 41FS-20014 | FRAME WA | 1 |
HBR25-7,STD
|
|
| 1-1 | 41FS-20015 | FRAME WA | 1 |
HBR20-7
|
|
| 1-1 | 41FS-20022 | FRAME WA | 1 |
HBR25-7,WIDE
|
|
| 1-1 | 41FS-20023 | FRAME WA | 1 |
HBR25-7,WIDE
|
|
| 1-1 | 41FS-20024 | FRAME WA | 1 |
HBR25-7,WIDE
|
|
| 1-1 | 41FS-20025 | FRAME WA | 1 |
HBR25-7,WIDE
|
|
| 1-1 | 41FS-20035 | FRAME WA | 1 |
KIA-GOERGIA
|
|
| 1-10 | B52110200 | LATCH | 1 |
HBR20-7
|
|
| 1-10 | 71FP-10410 | защелки передней | 1 |
HBR20-7
|
|
| 1-10 | B52110200 | LATCH | 1 |
HBR25-7
|
|
| 1-10 | 71FP-10410 | защелки передней | 1 |
HBR25-7
|
|
| 1-11 | 206512045 | Болт с полной резьбой | 1 | ||
| 1-12 | 221312000 | Гайка | 2 | ||
| 1-13 | S035-082056 | Болт | 2 |
HBR20-7
|
|
| 1-13 | S035-082056 | Болт | 4 |
HBR20-7
|
|
| 1-13 | S035-082056 | Болт | 2 |
HBR25-7
|
|
| 1-13 | S035-082056 | Болт | 4 |
HBR25-7
|
|
| 1-15 | 71FP-10370 | LATCH | 1 |
HBR20-7
|
|
| 1-15 | 71FP-10370 | LATCH | 1 |
HBR25-7
|
|
| 1-16 | 71FP-10380 | PLATE-SAFETY | 1 |
HBR20-7
|
|
| 1-16 | 71FP-10380 | PLATE-SAFETY | 1 |
HBR25-7
|
|
| 1-17 | 71FP-10390 | Пружина | 1 |
HBR20-7
|
|
| 1-17 | 71FP-10390 | Пружина | 1 |
HBR25-7
|
|
| 1-18 | S491-080452 | Палец | 1 |
HBR20-7
|
|
| 1-18 | S491-080452 | Палец | 1 |
HBR25-7
|
|
| 1-19 | S461-200152 | Палец | 1 |
HBR20-7
|
|
| 1-19 | S461-200152 | Палец | 1 |
HBR25-7
|
|
| 1-2 | 71FS-10022 | MAIN COVER | 1 |
HBR20-7
|
|
| 1-2 | 71FS-10023 | MAIN COVER | 1 |
HBR20-7
|
|
| 1-2 | 71FS-10022 | MAIN COVER | 1 |
HBR25-7
|
|
| 1-2 | 71FS-10023 | MAIN COVER | 1 |
HBR25-7
|
|
| 1-20 | S403-082002 | Плоская шайба | 1 |
HBR20-7
|
|
| 1-20 | S403-082002 | Плоская шайба | 1 |
HBR25-7
|
|
| 1-21 | S491-100952 | Палец | 1 |
HBR20-7
|
|
| 1-21 | S491-100952 | Палец | 1 |
HBR25-7
|
|
| 1-22 | S461-320152 | Палец | 1 |
HBR20-7
|
|
| 1-22 | S461-320152 | Палец | 1 |
HBR25-7
|
|
| 1-23 | S403-102002 | Плоская шайба | 1 |
HBR20-7
|
|
| 1-23 | S403-102002 | Плоская шайба | 1 |
HBR25-7
|
|
| 1-24 | 71FP-10400 | Кронштейн | 1 |
HBR20-7
|
|
| 1-24 | 71FP-10400 | Кронштейн | 1 |
HBR25-7
|
|
| 1-3 | 71FS-10031 | COVER WA | 1 |
HBR20-7
|
|
| 1-3 | 71FS-10032 | COVER WA | 1 |
HBR20-7
|
|
| 1-3 | 71FS-10033 | COVER WA | 1 |
HBR20-7
|
|
| 1-3 | 71FS-10031 | COVER WA | 1 |
HBR25-7
|
|
| 1-3 | 71FS-10032 | COVER WA | 1 |
HBR25-7
|
|
| 1-3 | 71FS-10033 | COVER WA | 1 |
HBR25-7
|
|
| 1-4 | 71FS-10011 | SIDE DOOR ASSY | 1 |
HBR20-7
|
|
| 1-4 | 71FP-10011 | SIDE DOOR ASSY | 1 |
HBR20-7
|
|
| 1-4 | 71FP-10012 | SIDE DOOR WA | 1 |
HBR20-7
|
|
| 1-4 | 71FS-10011 | SIDE DOOR ASSY | 1 |
HBR25-7
|
|
| 1-4 | 71FP-10011 | SIDE DOOR ASSY | 1 |
HBR25-7
|
|
| 1-4 | 71FP-10012 | SIDE DOOR WA | 1 |
HBR25-7
|
|
| 1-5 | 71FS-10102 | COVER-FRONT | 1 |
HBR20-7
|
|
| 1-5 | 71FS-10103 | COVER-FRONT | 1 |
HBR20-7
|
|
| 1-5 | 71FS-10102 | COVER-FRONT | 1 |
HBR25-7
|
|
| 1-5 | 71FS-10103 | COVER-FRONT | 1 |
HBR25-7
|
|
| 1-6 | S035-082056 | Болт | 5 | ||
| 1-7 | S179-080206 | Винт (торцевой ключ) | 4 | ||
| 1-8 | S411-080006 | Шайба пружинная | 4 | ||
| 1-9 | S403-082006 | Плоская шайба | 4 | ||
| 2 | 41FP-00580 | Фланец | 6 | ||
| 3 | 41FP-00590 | вал ролик | 3 | ||
| 4 | 9021051304 | Подшипник | 6 | ||
| N1 | 41FS-11004 | FRAME ASSY | 1 |
HBR20-7,STD
|
|
| N1 | 41FS-12004 | FRAME ASSY | 1 |
HBR20-7,WIDE
|
|
| N1 | 41FS-21004 | FRAME ASSY | 1 |
HBR25-7,STD
|
|
| N1 | 41FS-22004 | FRAME ASSY | 1 |
TF750
|
|
| N1-1 | 41FS-20012 | FRAME WA | 1 |
HBR25-7,STD
|
|
| N1-1 | 41FS-20013 | FRAME WA | 1 |
HBR25-7,STD
|
|
| N1-14 | 71FP-10360 | STOPPER-BATTERY | 1 |
HBR20-7
|
|
| N1-14 | 71FP-10360 | STOPPER-BATTERY | 1 |
HBR25-7
|
