OUTER MAST(STD) погрузчика дизельного Hyundai HDF20/25/30II
OUTER MAST(STD) погрузчика дизельного Hyundai HDF20/25/30II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7010
Наименование:OUTER MAST(STD)
Версия:2002.10.31 REV.3

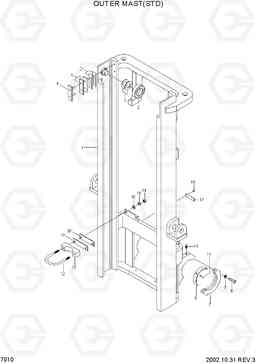

OUTER MAST(STD) HDF20/25/30II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | F12504012B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504013B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504012B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504013B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504022B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504023B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504022B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504023B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504032B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504033B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504032B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504033B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504042B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504043B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504042B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504043B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504052B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504053B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504052B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504053B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504062B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504063B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504062B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504063B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504072B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504073B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504072B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504073B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504082B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504083B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504082B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504083B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504092B | MAST WA-OUTER | 1 |
HDF20/25-2
|
|
| 1 | F12504093B | OUTER MAST WA | 1 |
HDF20/25-2
|
|
| 1 | F12504092B | MAST WA-OUTER | 1 |
HDF30-2
|
|
| 1 | F12504093B | OUTER MAST WA | 1 |
HDF30-2
|
|
| 10 | 2G1110000 | Масленка | 2 | ||
| 11 | 245310016 | Палец | 2 | ||
| 12 | F12500551 | U-образный болт (скоба, П образный) / хомут | 2 | ||
| 13 | F12500590 | Держатель | 2 | ||
| 14 | 221308001 | Гайка | 4 | ||
| 15 | 233308000 | Шайба пружинная | 4 | ||
| 16 | 231108000 | Плоская шайба | 4 | ||
| 17 | 2D0900010 | NAME PLATE-MAST | 1 |
HDF20/25-2
|
|
| 17 | 2D0900130 | NAME PLATE-MAST | 1 |
HDF20-2
|
|
| 17 | 2D0900130 | NAME PLATE-MAST | 1 |
HDF25-2
|
|
| 17 | 2D0900010 | NAME PLATE-MAST | 1 |
HDF30-2
|
|
| 17 | 2D0900130 | NAME PLATE-MAST | 1 |
HDF30-2
|
|
| 18 | F020606 | RIVET | 2 |
HDF20-2
|
|
| 18 | F020606 | RIVET | 2 |
HDF25-2
|
|
| 18 | F020606 | RIVET | 2 |
HDF30-2
|
|
| 19 | F12500530 | Прокладка регулировочная | AR | ||
| 2 | 6600181100-01 | Подшипник роликовый | 2 | ||
| 20 | F12500540 | прокладка (0.5T) | AR | ||
| 21 | FMD0000110 | прокладка (0.5T) | AR | ||
| 21 | FMC0000160 | прокладка (0.5T) | AR | ||
| 21 | FMD0000111 | SHIM(0.3T) | AR | ||
| 3 | 6600187900 | прокладка (0.5T) | AR | ||
| 3 | 6600188000 | Прокладка регулировочная | AR | ||
| 4 | F12500370 | лайнер резервного копирования | 2 | ||
| 5 | FMC0000150 | Прокладка регулировочная | AR | ||
| 5 | FMC0000160 | прокладка (0.5T) | AR | ||
| 6 | FMC0000180 | Втулка | 2 | ||
| 7 | FMC0000170B | CAP | 2 | ||
| 8 | 201516085 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 9 | 233316000 | Шайба пружинная | 4 |
