GOVERNOR погрузчика дизельного Hyundai HDF20/25/30II
GOVERNOR погрузчика дизельного Hyundai HDF20/25/30II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:9280
Наименование:GOVERNOR
Версия:2004. 4.30 REV.5

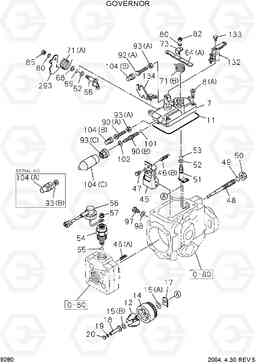

GOVERNOR HDF20/25/30II
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | @ | INJECTION PUMP ASSY | 1 |
SEE 9270
|
|
| 101 | 894227-5980 | Прокладка | 1 | ||
| 102 | 894227-5930 | Шайба | 1 | ||
| 104A | 894316-2620 | CAP | AR |
L=16.5
|
|
| 104B | 894316-2630 | CAP | AR |
L=18.0
|
|
| 104B | 894316-2640 | CAP | AR |
L=21.0
|
|
| 104B | 894316-2650 | CAP | AR |
L=24.0
|
|
| 104B | 894316-2660 | CAP | AR |
L=27.0
|
|
| 104C | 897214-4880 | CAP | AR | ||
| 11 | 897136-4130 | Прокладка | 1 | ||
| 12 | 894408-5420 | FLYWEIGHT ASSY | 1 | ||
| 132 | 894317-5080 | Кронштейн | 1 | ||
| 133 | 894313-2670 | Болт | 2 | ||
| 134 | 894317-5090 | Кронштейн | 1 | ||
| 14 | 894227-6130 | HOLDER | 1 | ||
| 15A | 894227-6120 | Шайба | 1 | ||
| 15B | 894408-5170 | Шайба | 1 | ||
| 17 | 894227-6070 | SHIM(1.05T) | AR | ||
| 17 | 894227-6080 | SHIM(1.25T) | AR | ||
| 17 | 894227-6090 | SHIM(1.45T) | AR | ||
| 17 | 894227-6100 | SHIM(1.65T) | AR | ||
| 17 | 894227-6110 | SHIM(1.85T) | AR | ||
| 17 | 894231-1230 | SHIM(1.15T) | AR | ||
| 17 | 894231-1240 | SHIM(1.35T) | AR | ||
| 17 | 894231-1250 | SHIM(1.55T) | AR | ||
| 17 | 894231-1260 | SHIM(1.75T) | AR | ||
| 18 | 897144-3550 | Втулка (распорная) | 1 | ||
| 18 | 897332-3260 | Втулка (распорная) | 1 | ||
| 19 | 897144-3560 | CAP | 1 | ||
| 20 | 897144-3570 | PLUG(5.00L) | AR | ||
| 20 | 897144-3580 | PLUG(5.10L) | AR | ||
| 20 | 897144-3590 | PLUG(5.20L) | AR | ||
| 20 | 897144-3600 | PLUG(5.30L) | AR | ||
| 20 | 897144-3610 | PLUG(5.40L) | AR | ||
| 20 | 897144-3620 | PLUG(5.50L) | AR | ||
| 20 | 897144-3630 | PLUG(5.60L) | AR | ||
| 20 | 897144-3640 | PLUG(5.70L) | AR | ||
| 20 | 897144-3650 | PLUG(5.80L) | AR | ||
| 20 | 897144-3660 | PLUG(5.90L) | AR | ||
| 20 | 897144-3670 | PLUG(6.00L) | AR | ||
| 20 | 897144-3680 | PLUG(6.10L) | AR | ||
| 20 | 897144-3690 | PLUG(6.20L) | AR | ||
| 20 | 897144-3700 | PLUG(6.30L) | AR | ||
| 20 | 897144-3710 | PLUG(6.40L) | AR | ||
| 20 | 897144-3720 | PLUG(6.50L) | AR | ||
| 20 | 897144-3730 | PLUG(6.60L) | AR | ||
| 20 | 897144-3740 | PLUG(6.70L) | AR | ||
| 20 | 897144-3750 | PLUG(6.80L) | AR | ||
| 20 | 897144-3760 | PLUG(6.90L) | AR | ||
| 20 | 897144-3770 | PLUG(7.00L) | AR | ||
| 20 | 897144-3780 | PLUG(7.10L) | AR | ||
| 20 | 897144-3790 | PLUG(7.20L) | AR | ||
| 20 | 897144-3800 | PLUG(7.30L) | AR | ||
| 20 | 897144-3810 | PLUG(7.40L) | AR | ||
| 20 | 897144-3820 | PLUG(7.50L) | AR | ||
| 20 | 897144-3830 | PLUG(7.60L) | AR | ||
| 20 | 897144-3840 | PLUG(7.70L) | AR | ||
| 20 | 897144-3850 | PLUG(7.80L) | AR | ||
| 20 | 897144-3860 | PLUG(7.90L) | AR | ||
| 20 | 897144-3870 | PLUG(8.00L) | AR | ||
| 20 | 897144-3880 | PLUG(8.10L) | AR | ||
| 20 | 897144-3890 | PLUG(8.20L) | AR | ||
| 20 | 897144-3900 | PLUG(8.30L) | AR | ||
| 20 | 897144-3910 | PLUG(8.40L) | AR | ||
| 293 | 894317-5060 | LEVER-CONTROL | AR | ||
| 293 | 894317-5050 | LEVER-CONTROL | AR | ||
| 45 | 897119-3460 | LEVER ASSY | 1 | ||
| 45 | 897214-4730 | LEVER ASSY | 1 | ||
| 46A | 894473-1280 | Пружина | 2 | ||
| 46B | 897128-6940 | Пружина | 1 | ||
| 46B | 897024-2440 | Пружина | 1 | ||
| 47 | 897062-2410 | Палец | 1 | ||
| 48 | 894248-0020 | Вал | 1 | ||
| 49 | 894227-6060 | Прокладка | 1 | ||
| 50 | 894473-1290 | Гайка | 1 | ||
| 51 | 894174-8280 | Вал | 1 | ||
| 52 | 894227-5900 | Шайба | 2 | ||
| 53 | 894227-5850 | Прокладка | 1 | ||
| 54 | 894242-2750 | Клапан | 1 | ||
| 55 | 894239-3730 | Прокладка | 1 | ||
| 56 | 894470-5820 | WIRE | 1 | ||
| 57 | 894473-1350 | Гайка | 1 | ||
| 57 | 897138-0421 | Гайка | 1 | ||
| 64A | 894317-5010 | LEVER-LOAD CONT | 1 | ||
| 64A | 894317-5020 | LEVER-LOAD CONT | 1 | ||
| 64A | 897214-4690 | LEVER-LOAD CONT | 1 | ||
| 64A | 897214-4700 | LEVER-LOAD CONT | 1 | ||
| 66 | 897047-2020 | SHAFT-LEVER | 1 | ||
| 68 | 894433-2170 | WASHER-LEVER SHAFT | 1 | ||
| 69 | 894433-2160 | Прокладка | 1 | ||
| 7 | 894386-5930 | COVER ASSY | 1 | ||
| 71A | 894317-5040 | Пружина | 1 | ||
| 71B | 894317-5070 | Пружина | 1 | ||
| 73 | 894122-7130 | ANGLE | 1 | ||
| 80 | 909150-5060 | Шайба пружинная | 2 | ||
| 82 | 909110-4060 | Гайка | 1 | ||
| 82 | 115729-0060 | Гайка | 1 | ||
| 85 | 909110-4060 | Гайка | 1 | ||
| 8A | 894227-6360 | Болт | 4 | ||
| 90A | 894426-0490 | Болт | 1 | ||
| 90B | 894316-2740 | Болт | AR |
L=53.0
|
|
| 90B | 897214-4790 | Болт | AR | ||
| 90B | 894316-2750 | Болт | AR |
L=55.0
|
|
| 90B | 897214-4800 | Болт | AR | ||
| 90B | 894316-2760 | Болт | AR |
L=57.0
|
|
| 90B | 897214-4810 | Болт | AR | ||
| 92A | 894426-0490 | Болт | 1 | ||
| 93A | 894426-0471 | Гайка | 2 | ||
| 93B | 894316-2770 | Гайка | 1 | ||
| 93C | 897214-4820 | Гайка | 1 | ||
| 97 | 894227-6010 | Болт | 2 | ||
| 98 | 894227-6020 | Прокладка | 2 |
