Каталог запчастей
-
Hyundai
-
HDF20/25/30-5
- OUTER PANEL 1
OUTER PANEL 1 погрузчика дизельного Hyundai HDF20/25/30-5
OUTER PANEL 1 погрузчика дизельного Hyundai HDF20/25/30-5 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6020
Наименование:OUTER PANEL 1
Версия:2005.11.30 REV.5L

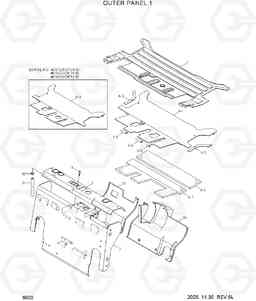

OUTER PANEL 1 HDF20/25/30-5
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 2 | 71FG-10023 | DASH BOARD WA | 1 |
HDF20-5
|
|
| 2 | 71FG-10024 | DASH BOARD WA | 1 |
HDF20-5
|
|
| 2 | 71FG-10023 | DASH BOARD WA | 1 |
HDF25-5
|
|
| 2 | 71FG-10024 | DASH BOARD WA | 1 |
HDF25-5
|
|
| 2 | 71FG-10023 | DASH BOARD WA | 1 |
HDF30-5
|
|
| 2 | 71FG-10024 | DASH BOARD WA | 1 |
HDF30-5
|
|
| 29 | 71FG-10080 | COVER FRONT-LH | 1 | ||
| 3 | 71FG-10032 | COVER-DASH BOARD | 1 | ||
| 30 | 71FG-10090 | COVER FRONT-RH | 1 | ||
| 31 | P760-011050 | HOSE-RUBBER LOW | 2 | ||
| 32 | S520-015000 | Зажим | 2 | ||
| 4 | S131-061546 | SCREW-W/WASHER | 14 | ||
| 6 | 71FG-10041 | FLOOR SUB ASSY | 1 |
HDF20-5
|
|
| 6 | 71FG-10042 | FLOOR SUB ASSY | 1 |
HDF20-5
|
|
| 6 | 71FG-10041 | FLOOR SUB ASSY | 1 |
HDF25-5
|
|
| 6 | 71FG-10042 | FLOOR SUB ASSY | 1 |
HDF25-5
|
|
| 6 | 71FG-10041 | FLOOR SUB ASSY | 1 |
HDF30-5
|
|
| 6 | 71FG-10042 | FLOOR SUB ASSY | 1 |
HDF30-5
|
|
| 6-1 | 71FG-10141 | FLOOR PLATE WA | 1 |
HDF20-5
|
|
| 6-1 | 71FG-10142 | FLOOR PLATE WA | 1 |
HDF20-5
|
|
| 6-1 | 71FG-10141 | FLOOR PLATE WA | 1 |
HDF25-5
|
|
| 6-1 | 71FG-10142 | FLOOR PLATE WA | 1 |
HDF25-5
|
|
| 6-1 | 71FG-10141 | FLOOR PLATE WA | 1 |
HDF30-5
|
|
| 6-1 | 71FG-10142 | FLOOR PLATE WA | 1 |
HDF30-5
|
|
| 6-2 | 71FG-10150 | Держатель | 1 | ||
| 6-3 | 71FG-10160 | Держатель | 1 | ||
| 6-4 | 71FG-10170 | Держатель | 2 | ||
| 6-5 | 71FG-10180 | Держатель | 1 | ||
| 6-6 | 71FG-10330 | SPONGE | 1 | ||
| 6-7 | 71FG-10340 | SPONGE | 1 | ||
| 7 | 71FG-10051 | MAT-FLOOR | 1 |
STD, OHG
|
