BRAKE VALVE(50-3:-#0121,70-3:-#0146) погрузчика дизельного Hyundai HDF50/70III
BRAKE VALVE(50-3:-#0121,70-3:-#0146) погрузчика дизельного Hyundai HDF50/70III со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4130
Наименование:BRAKE VALVE(50-3:-#0121,70-3:-#0146)
Версия:2004. 4.30 REV.3

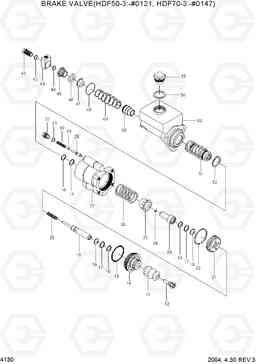

BRAKE VALVE(50-3:-#0121,70-3:-#0146) HDF50/70III
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 81FF-40150 | BRAKE VALVE | 1 |
HDF50-3
|
|
| * | 81FF-40150 | BRAKE VALVE | 1 |
HDF70-3
|
|
| *-1 | 20-100-116 | BOOSTER SECTION | 1 | ||
| *-2 | 20-100-704 | MASTER SECTION | 1 | ||
| K | 02-400-076 | Ремкомплект | 1 | ||
| K | 02-400-253 | REPAR KIT(42,44,46,47,48 | 1 | ||
| KN15 | @ | O-RING | 1 | ||
| KN16 | @ | RING-BACK UP | 3 | ||
| KN17 | @ | CUP | 2 | ||
| KN18 | @ | RING-RETAINING | 2 | ||
| KN22 | @ | RING-PISTON | 1 | ||
| KN24 | @ | RING-RETAINING | 1 | ||
| KN3 | @ | BOOT | 1 | ||
| KN31 | @ | O-RING | 1 | ||
| KN42 | @ | WASHER-LOCK | 3 | ||
| KN44 | @ | WASHER-LOCK | 3 | ||
| KN46 | @ | SEAT | 1 | ||
| KN47 | @ | CHECK VALVE | 1 | ||
| KN48 | @ | O-RING | 1 | ||
| KN50 | @ | PISTON | 1 | ||
| KN51 | @ | PISTON ASSY | 1 | ||
| KN54 | @ | SEAL | 1 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| N12 | @ | PLUG | 1 | ||
| N14 | @ | PLUG | 1 | ||
| N19 | @ | PISTON | 1 | ||
| N20 | @ | SPRING | 1 | ||
| N21 | @ | PISTON | 1 | ||
| N23 | @ | PISTON | 1 | ||
| N25 | @ | RETAINER | 1 | ||
| N26 | @ | SPRING | 1 | ||
| N27 | @ | HOUSING | 1 | ||
| N28 | @ | STEM-VALVE | 1 | ||
| N29 | @ | SHIM | 1 | ||
| N30 | @ | SPRING | 1 | ||
| N32 | @ | PLUG | 1 | ||
| N41 | @ | LINE BOLT | 1 | ||
| N43 | @ | FITTING BOLT | 1 | ||
| N45 | @ | PLUG | 1 | ||
| N49 | @ | SPRING | 1 | ||
| N52 | @ | RING-RETAINING | 1 | ||
| N53 | @ | HOUSING | 1 | ||
| N55 | @ | PLUG | 1 |
