Каталог запчастей
-
Hyundai
-
HDF50/70III
- POWER TAKE-OFF
POWER TAKE-OFF погрузчика дизельного Hyundai HDF50/70III
POWER TAKE-OFF погрузчика дизельного Hyundai HDF50/70III со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6100
Наименование:POWER TAKE-OFF
Версия:2004. 4.30 REV.3

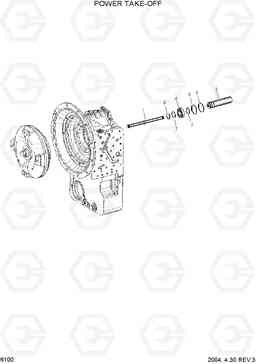

POWER TAKE-OFF HDF50/70III
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 4651-154-010 | POWER TAKE-OFF ASSY | 1 | ||
| 1 | 4651-319-001 | SHAFT-CENTRAL | 1 | ||
| 2 | 4651-319-014 | Втулка | 1 | ||
| 3 | 0734-401-267 | Кольцо поршневое | 1 | ||
| 4 | 0750-116-303 | Подшипник | 1 | ||
| 5 | 0730-107-441 | SHIM(1.T) | 1 | ||
| 5 | 0730-107-442 | SHIM(1.05T) | 1 | ||
| 5 | 0730-107-443 | SHIM(1.1T) | 1 | ||
| 5 | 0730-107-444 | SHIM(1.15T) | 1 | ||
| 5 | 0730-107-445 | SHIM(1.2T) | 1 | ||
| 5 | 0730-107-446 | SHIM(1.25T) | 1 | ||
| 5 | 0730-107-447 | SHIM(1.3) | 1 | ||
| 5 | 0730-107-448 | SHIM(1.35T) | 1 | ||
| 5 | 0730-107-449 | SHIM(1.4T) | 1 | ||
| 5 | 0730-107-450 | SHIM(1.45T) | 1 | ||
| 5 | 0730-107-451 | SHIM(1.5T) | 1 | ||
| 5 | 0730-107-452 | SHIM(1.55T) | 1 | ||
| 5 | 0730-107-453 | SHIM(1.6T) | 1 | ||
| 5 | 0730-109-910 | SHIM(1.65T) | 1 | ||
| 5 | 0730-107-900 | SHIM(1.7T) | 1 | ||
| 5 | 0730-109-911 | SHIM(1.75T) | 1 | ||
| 5 | 0730-108-599 | SHIM(1.8T) | 1 | ||
| 5 | 0730-107-901 | SHIM(1.85T) | 1 | ||
| 5 | 0730-108-600 | SHIM(1.9T) | 1 | ||
| 5 | 0730-108-601 | SHIM(1.95T) | 1 | ||
| 5 | 0730-107-902 | SHIM(2.T) | 1 | ||
| 5 | 0730-108-602 | SHIM(2.05T) | 1 | ||
| 5 | 0730-108-603 | SHIM(2.1T) | 1 | ||
| 5 | 0730-107-903 | SHIM(2.15T) | 1 | ||
| 5 | 0730-108-604 | SHIM(2.2T) | 1 | ||
| 6 | 0630-502-034 | Кольцо | 1 | ||
| 7 | 0630-501-031 | Кольцо | 2 |
