HEAD GUARD TOTAL SUB(#1001-) погрузчика дизельного Hyundai HDF50/70-7
HEAD GUARD TOTAL SUB(#1001-) погрузчика дизельного Hyundai HDF50/70-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6043
Наименование:HEAD GUARD TOTAL SUB(#1001-)
Версия:2007.11.30 REV.7L

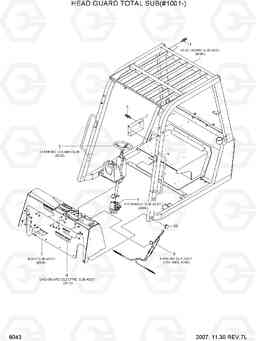

HEAD GUARD TOTAL SUB(#1001-) HDF50/70-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 77FQ-35000 | HEAD GUARD TOTAL SUB | 1 |
HDF50-7, WET
|
|
| * | 77FQ-35001 | HEAD GUARD TOTAL SUB | 1 |
HDF50-7, WET
|
|
| * | 77FQ-35002 | HEAD GUARD TOTAL SUB | 1 |
HDF50-7, WET
|
|
| * | 77FQ-35000 | HEAD GUARD TOTAL SUB | 1 |
HDF70-7, WET
|
|
| * | 77FQ-35001 | HEAD GUARD TOTAL SUB | 1 |
HDF70-7, WET
|
|
| * | 77FQ-35002 | HEAD GUARD TOTAL SUB | 1 |
HDF70-7, WET
|
|
| * | 77FQ-35010 | HEAD GUARD TOTAL SUB | 1 |
HDF50-7, DRY
|
|
| * | 77FQ-35011 | HEAD GUARD TOTAL SUB | 1 |
HDF50-7, DRY
|
|
| * | 77FQ-35012 | HEAD GUARD TOTAL SUB | 1 |
HDF50-7, DRY
|
|
| * | 77FQ-35010 | HEAD GUARD TOTAL SUB | 1 |
HDF70-7, DRY
|
|
| * | 77FQ-35011 | HEAD GUARD TOTAL SUB | 1 |
HDF70-7, DRY
|
|
| * | 77FQ-35012 | HEAD GUARD TOTAL SUB | 1 |
HDF70-7, DRY
|
|
| 1 | 77FQ-30001 | HEAD GUARD SUB ASSY | 1 |
6041, HDF50-7
|
|
| 1 | 77FQ-30002 | Глава охранник югу сборе | 1 |
6041, HDF50-7
|
|
| 1 | 77FQ-30003 | Глава охранник югу сборе | 1 |
6041, HDF50-7
|
|
| 1 | 77FQ-30001 | HEAD GUARD SUB ASSY | 1 |
6041, HDF70-7
|
|
| 1 | 77FQ-30002 | Глава охранник югу сборе | 1 |
6041, HDF70-7
|
|
| 1 | 77FQ-30003 | Глава охранник югу сборе | 1 |
6041, HDF70-7
|
|
| 10 | FHC0904100 | резиновая пребывание | 6 | ||
| 11 | S037-101526 | Болт | 2 |
HDF50-7
|
|
| 11 | S037-101526 | Болт | 2 |
HDF70-7
|
|
| 2 | 77FQ-15010 | BODY SUB ASSY | 1 |
SEE 6035
|
|
| 4 | 20FQ-07020 | DASHBOARD ELEC SUB | 1 |
SEE 2015
|
|
| 5 | 37FQ-10100 | HYD STEER SUB ASSY | 1 |
SEE 3066
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7, WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7, WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7, WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7, WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7, WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7, WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7, DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7, DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7, DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7, DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7, DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7, DRY
|
|
| 7 | 77FQ-30910 | Кронштейн ЭБУ | 1 | ||
| 8 | S035-082026 | Болт | 3 | ||
| N3 | 70FQ-20102 | Рулевая колонка | 1 |
SEE 5030
|
