Каталог запчастей
-
Hyundai
-
HDF50/70-7
- CABIN TOTAL SUB ASSY(#1001-)
CABIN TOTAL SUB ASSY(#1001-) погрузчика дизельного Hyundai HDF50/70-7
CABIN TOTAL SUB ASSY(#1001-) погрузчика дизельного Hyundai HDF50/70-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6130
Наименование:CABIN TOTAL SUB ASSY(#1001-)
Версия:2010. 4.30 REV.10D

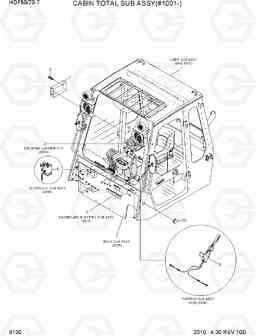

CABIN TOTAL SUB ASSY(#1001-) HDF50/70-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 77FQ-35040 | CABIN TOTAL SUB ASSY | 1 |
5.0,WET,SINWHA
|
|
| * | 77FQ-35041 | CABIN TOTAL SUB ASSY | 1 |
5.0,WET,SINWHA
|
|
| * | 77FQ-35040 | CABIN TOTAL SUB ASSY | 1 |
7.0,WET,SINWHA
|
|
| * | 77FQ-35041 | CABIN TOTAL SUB ASSY | 1 |
7.0,WET,SINWHA
|
|
| * | 77FQ-35050 | CABIN TOTAL SUB ASSY | 1 |
5.0,DRY,SINWHA
|
|
| * | 77FQ-35051 | CABIN TOTAL SUB ASSY | 1 |
5.0,DRY,SINWHA
|
|
| * | 77FQ-35050 | CABIN TOTAL SUB ASSY | 1 |
7.0,DRY,SINWHA
|
|
| * | 77FQ-35051 | CABIN TOTAL SUB ASSY | 1 |
7.0,DRY,SINWHA
|
|
| * | 77FQ-55011 | CABIN TOTAL SUB ASSY | 1 |
5.0,WET,SAMW00
|
|
| * | 77FQ-55012 | CABIN TOTAL SUB ASSY | 1 |
5.0,WET,SAMW00
|
|
| * | 77FQ-55011 | CABIN TOTAL SUB ASSY | 1 |
7.0,WET,SAMW00
|
|
| * | 77FQ-55012 | CABIN TOTAL SUB ASSY | 1 |
7.0,WET,SAMW00
|
|
| * | 77FQ-55021 | CABIN TOTAL SUB ASSY | 1 |
5.0,DRY,SAMW00
|
|
| * | 77FQ-55022 | CABIN TOTAL SUB ASSY | 1 |
5.0,DRY,SAMW00
|
|
| * | 77FQ-55021 | CABIN TOTAL SUB ASSY | 1 |
7.0,DRY,SAMW00
|
|
| * | 77FQ-55022 | CABIN TOTAL SUB ASSY | 1 |
7.0,DRY,SAMW00
|
|
| 1 | 71FQ-50010 | Кабина в сборе | 1 |
5.0,SINWHA,6050
|
|
| 1 | 71FQ-50010 | Кабина в сборе | 1 |
7.0,SINWHA,6050
|
|
| 1 | 75FQ-50013 | Кабина в сборе | 1 |
5.0,SAMW00,6051
|
|
| 1 | 75FQ-50014 | Кабина в сборе | 1 |
5.0,SAMW00,6051
|
|
| 1 | 75FQ-50013 | Кабина в сборе | 1 |
7.0,SAMW00,6051
|
|
| 1 | 75FQ-50014 | Кабина в сборе | 1 |
7.0,SAMW00,6051
|
|
| 10 | FHC0904100 | резиновая пребывание | 6 | ||
| 2 | 77FQ-15010 | BODY SUB ASSY | 1 | ||
| 4 | 20FQ-07020 | DASHBOARD ELEC SUB | 1 | ||
| 5 | 37FQ-10100 | HYD STEER SUB ASSY | 1 | ||
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7,WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7,WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7,WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7,WET
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7,DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF50-7,DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7,DRY
|
|
| 6 | @ | PARKING SUB ASSY | 1 |
HDF70-7,DRY
|
|
| 7 | 77FQ-30910 | Кронштейн ЭБУ | 1 | ||
| 8 | S035-082026 | Болт | 3 | ||
| N3 | 70FQ-20102 | Рулевая колонка | 1 |
