RCV LEVER фронтального погрузчика колесного Hyundai HL17C
RCV LEVER фронтального погрузчика колесного Hyundai HL17C со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2090
Наименование:RCV LEVER
Версия:

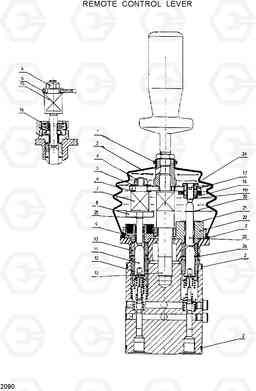

RCV LEVER HL17C
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| @ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
| * | 31L1-1002 | RCV | 0 | ||
| 1 | @ | CLAMP-CABLE | 1 | ||
| 10 | @ | BUSHING-PROTECTION | 4 | ||
| 11,12 | @ | PLUNGER KIT | 4 | ||
| 13 | @ | SCREW | 1 | ||
| 15 | @ | CARDAN | 1 | ||
| 16 | @ | DETENT KIT | 1 | ||
| 17 | @ | NUT-COUNTER | 3 | ||
| 18 | @ | NUT | 3 | ||
| 19 | @ | SCREW-PRESS | 3 | ||
| 2 | @ | CLAMP-FITTING | 3 | ||
| 20 | @ | CIRCLIP | 3 | ||
| 21 | @ | SHIM | 3 | ||
| 22 | @ | RING KIT | 3 | ||
| 23 | @ | PLUNGER | 3 | ||
| 24 | @ | SCREW | 3 | ||
| 25 | @ | RING-SPRING | 1 | ||
| 26 | @ | O-RING | 8 | ||
| 3 | @ | BELLOW | 1 | ||
| 4 | @ | NUT-BRAKE | 1 | ||
| 5 | @ | WASHER-FRICTTON | 1 | ||
| 6 | @ | WASHER-FRICTTON | 1 | ||
| 7 | @ | CARDAN | 1 | ||
| 8 | @ | SEAT | 1 | ||
| 9 | @ | MAGNET-ELECTRO | 1 |
