DECALS фронтального погрузчика колесного Hyundai HL25C
DECALS фронтального погрузчика колесного Hyundai HL25C со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS
Версия:

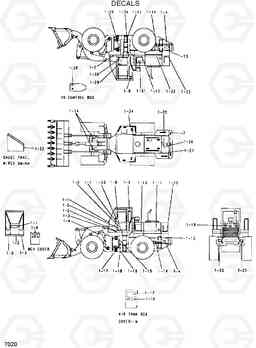

DECALS HL25C
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 91L2-2200 | DECAL ASSY | 1 | ||
| 1-1 | 91E1-1222 | TRADE MARK | 1 | ||
| 1-10 | 91L1-1071 | SIDE CHARACTER(C)-LH | 1 | ||
| 1-11 | 91E7-1002 | Батарея аккумуляторная | 2 | ||
| 1-12 | 91L1-1025 | SLINGING POINT | 4 | ||
| 1-13 | 91L1-2222 | GREASE | 2 | ||
| 1-14 | 91L1-2223 | STEERING | 1 | ||
| 1-15 | 91L1-2225 | SERVICE INSTRUCTION | 1 | ||
| 1-16 | 91L1-2226 | AIR TANK | 1 | ||
| 1-17 | 91L1-1091 | SYMBOL MARK | 1 | ||
| 1-18 | 91L1-1106 | TRACFFIC RULES(A) | 1 | ||
| 1-19 | 91L1-1116 | TRACFFIC RULES(B) | 1 | ||
| 1-2 | 91L1-1051 | CHARACTER-CAB(A) | 1 | ||
| 1-20 | 91L1-2227 | W/WIPER SWITCH | 1 | ||
| 1-21 | 91L1-2228 | ETHER SWITCH | 1 | ||
| 1-22 | 91E7-1003 | HYD OIL LUB | 1 | ||
| 1-23 | 91E7-1008 | ANTIFREEZE | 1 | ||
| 1-24 | 91L1-1031 | Крышка радиатора | 1 | ||
| 1-25 | 91E7-1018 | FUELING | 1 | ||
| 1-26 | 91L1-1014 | CONTROL IDEOGRAM | 1 | ||
| 1-27 | 91E7-1009 | AIR VENT | 1 | ||
| 1-28 | 91E7-1024 | SAFETY INSTRUCTION | 1 | ||
| 1-29 | 91E7-1005 | AIR CLEANER | 1 | ||
| 1-3 | 91L1-1052 | CHARACTER-CAB(B) | 2 | ||
| 1-30 | 91L2-2222 | SIDE CHARACTER(B)-RH | 1 | ||
| 1-31 | 91L1-1081 | SIDE CHARACTER(C)-RH | 1 | ||
| 1-32 | 91L1-2231 | Указатель уровня масла | 1 | ||
| 1-33 | 91E1-1071 | NAME PLATE | 1 | ||
| 1-34 | 91E7-1027 | MAX HEIGHT REACH | 1 | ||
| 1-35 | 91L1-2234 | SEAT BELT | 1 | ||
| 1-36 | 91L1-2235 | ROPS CAB | 1 | ||
| 1-37 | 91L1-2236 | ROPS S/NO PLATE | 1 | ||
| 1-38 | 91L1-2237 | BOLT SPEC PLATE | 1 | ||
| 1-4 | 91L1-2232 | Двигатель в сборе | 1 | ||
| 1-5 | 91L1-2214 | SPECIFICATION | 1 | ||
| 1-6 | 91L1-2221 | ANGLE OF BUCKET | 1 | ||
| 1-7 | 91E1-1221 | TRADE MARK (CAB) | 2 | ||
| 1-8 | 91L1-1065 | SIDE CHARACTER(A) | 2 | ||
| 1-9 | 91L2-2221 | SIDE CHARACTER(B)-LH | 1 | ||
| 2 | E191-1171 | STEP TREAD | 15 | ||
| 3 | E171-1246 | RIVET | 12 |
