Гидронасос (основной насос) фронтального погрузчика колесного Hyundai HL35C
Гидронасос (основной насос) фронтального погрузчика колесного Hyundai HL35C со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2030
Наименование:MAIN PUMP
Версия:

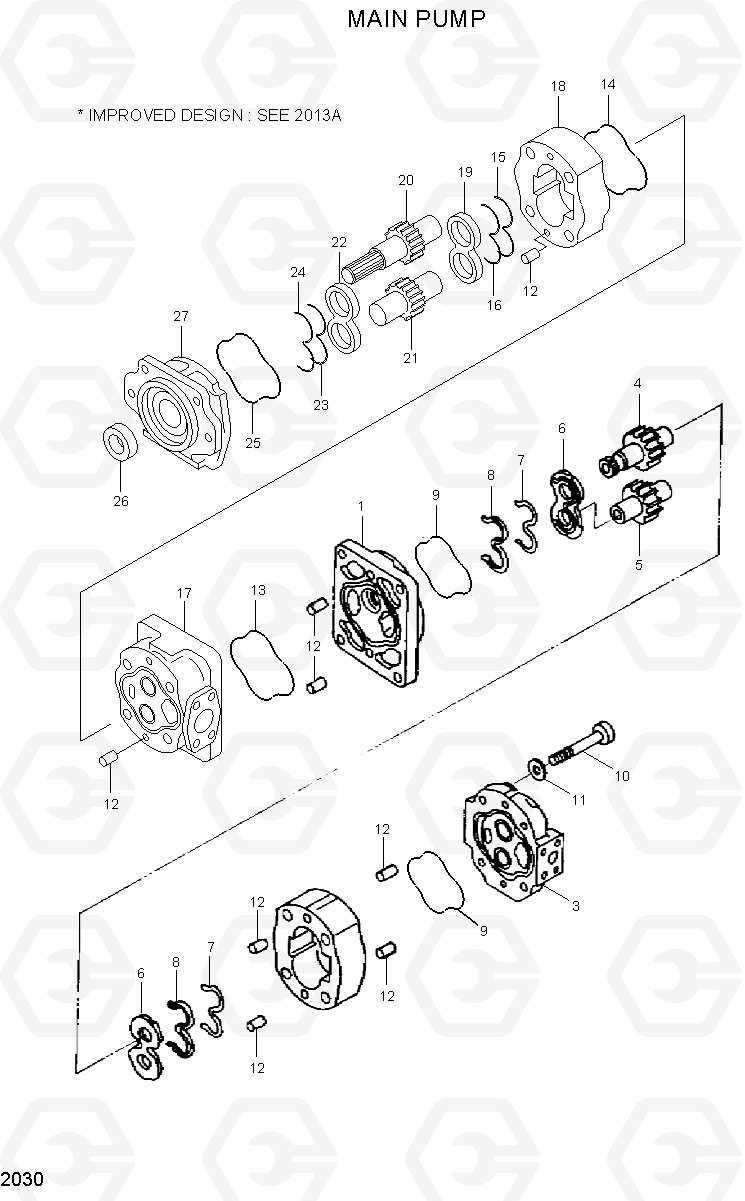

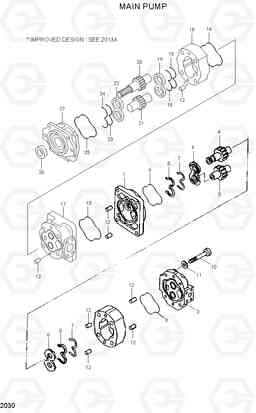

MAIN PUMP HL35C
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| @ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
| *-2 | 705-22-40080 | PUMP ASSY | 1 | ||
| 1 | @ | BRACKET | 1 | ||
| 10 | @ | BOLT | 4 | ||
| 11 | @ | WASHER | 4 | ||
| 12 | @ | PIN-DOWEL | 10 | ||
| 17 | @ | BRACKET | 1 | ||
| 18 | @ | CASE-GEAR | 1 | ||
| 19 | @ | PLATE-SIDE | 1 | ||
| 2 | @ | CASE-GEAR | 1 | ||
| 20 | @ | GEAR-DRIVE | 1 | ||
| 21 | @ | GEAR-DRIVEN | 1 | ||
| 22 | @ | PLATE-SIDE | 1 | ||
| 27 | @ | COVER | 1 | ||
| 3 | @ | COVER | 1 | ||
| 4 | @ | GEAR-DRIVE | 1 | ||
| 5 | @ | GEAR-DRIVEN | 1 | ||
| 6 | @ | PLATE-SIDE | 2 | ||
| K13 | @ | O-RING | 1 | ||
| K14 | @ | O-RING | 1 | ||
| K15 | @ | SEAL | 1 | ||
| K16 | @ | SEAL | 1 | ||
| K23 | @ | SEAL | 1 | ||
| K24 | @ | SEAL | 1 | ||
| K25 | @ | O-RING | 1 | ||
| K26 | @ | SEAL-SHAFT | 1 | ||
| K7 | @ | SEAL | 2 | ||
| K8 | @ | SEAL | 2 | ||
| K9 | @ | O-RING | 2 | ||
| N* | 705-52-32050 | PUMP ASSY | 1 | ||
| N*-1 | 705-12-38530 | PUMP ASSY | 1 | ||
| NK | 705-90-01050 | Ремкомплект / комплект уплотнений (7-9,13-16,23-26) | 1 |
