Каталог запчастей
-
Hyundai
-
HL730-7A
- CONSOLE BOX
CONSOLE BOX фронтального погрузчика колесного Hyundai HL730-7A
CONSOLE BOX фронтального погрузчика колесного Hyundai HL730-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5130
Наименование:CONSOLE BOX
Версия:2008. 3.31 REV.8C

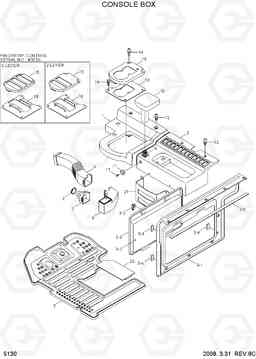

CONSOLE BOX HL730-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71LF-20011 | CONSOLE BOX-RH/FR | 1 | ||
| 10 | 71LF-20120 | WRIST REST ASSY | 1 | ||
| 11 | 61S1-1037 | HANDLE | 1 | ||
| 12 | S132-081526 | SCREW-W/WASHER | 21 | ||
| 14 | S131-051546 | SCREW-W/WASHER | 2 | ||
| 15 | 71LF-20091 | COVER-J/LEVER/3S/2L | 1 |
2-SPOOL,1-LEVER
|
|
| 15 | 71LF-20200 | COVER-J/LEVER/2S/1L | 1 |
3-SPOOL,2-LEVER
|
|
| 15 | 71LF-20210 | COVER-J/LEVER/2S/2L | 1 |
2-SPOOL,2-LEVER
|
|
| 15 | 71LF-21041 | COVER-J/LEVER/2S/2L | 1 |
2-SPOOL,2-LEVER
|
|
| 15 | 71LF-20220 | COVER-J/LEVER/3S/3L | 1 |
3-SPOOL,3-LEVER
|
|
| 15 | 71LF-21051 | COVER-J/LEVER/3S/3L | 1 |
3-SPOOL,3-LEVER
|
|
| 15 | 71LF-20091 | COVER-J/LEVER/3S/2L | 1 | ||
| 15 | 71LF-20200 | COVER-J/LEVER/2S/1L | 1 | ||
| 16 | 71LB-20190 | Пружина | 1 | ||
| 17 | S015-080356 | Болт с шестигранной головкой (под шестигранник) | 1 | ||
| 18 | 71LF-20230 | PLATE-RCV/2S/1L | 1 |
2-SPOOL,1-LEVER
|
|
| 18 | 71LF-20240 | PLATE-RCV/3S/2L | 1 |
3-SPOOL,2-LEVER
|
|
| 18 | 71LF-20250 | PLATE-RCV/2S/2L | 1 |
2-SPOOL,2-LEVER
|
|
| 18 | 71LF-21031 | PLATE-RCV | 1 |
2-SPOOL,2-LEVER
|
|
| 18 | 71LF-20260 | PLATE-RCV/3S/3L | 1 |
3-SPOOL,3-LEVER
|
|
| 18 | 71LF-21031 | PLATE-RCV | 1 |
3-SPOOL,3-LEVER
|
|
| 18 | 71LF-20230 | PLATE-RCV/2S/1L | 1 | ||
| 18 | 71LF-20240 | PLATE-RCV/3S/2L | 1 | ||
| 19 | S035-082056 | Болт | 4 | ||
| 2 | 71LF-20021 | CONSOLE BOX-RH/RR | 1 | ||
| 20 | 71LF-20180 | MAT-RH | 1 | ||
| 21 | 71LF-20190 | BOOK BOX | 1 | ||
| 3 | 71LF-20032 | COVER-REAR ASSY | 1 | ||
| 3-1 | 71LF-20041 | COVER-REAR | 1 | ||
| 3-2 | 71LF-20051 | COVER-REAR/COVER | 1 | ||
| 3-3 | 71EM-20150 | LATCH ASSY | 2 | ||
| 3-4 | 71LF-20110 | RUBBER PAD | 4 | ||
| 3-5 | 71LF-20130 | RUBBER PAD | 1 | ||
| 3-6 | 71LF-20140 | SPONGE | 1 | ||
| 3-7 | 71N6-03300 | вентиляционное отверстие | 1 | ||
| 4 | 71LF-10012 | DUCT-FRONT(1) | 1 | ||
| 5 | 71LF-21011 | MAT-FLOOR | 1 |
STD
|
|
| 5 | 71LF-21070 | MAT-FLOOR | 1 |
OPT, DUAL PEDAL
|
|
| 6 | 71LF-10041 | DUCT-REAR | 1 | ||
| 7 | 71LF-10051 | DUCT-DEF(1) | 1 | ||
| 9 | S520-055000 | Зажим | 1 |
