BRAKE VALVE(1/2,-#1060) фронтального погрузчика колесного Hyundai HL730-3(#1001-)
BRAKE VALVE(1/2,-#1060) фронтального погрузчика колесного Hyundai HL730-3(#1001-) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2150
Наименование:BRAKE VALVE(1/2,-#1060)
Версия:2003. 6.30 REV.3

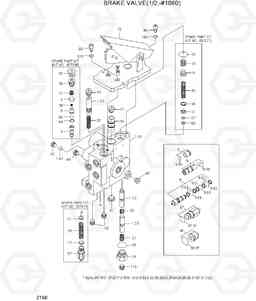

BRAKE VALVE(1/2,-#1060) HL730-3(#1001-)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| K | 313077 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| * | 31L7-40010 | BRAKE VALVE | 1 | ||
| 1.00 | @ | HOUSING | 1 | ||
| 1.22 | @ | SPOOL | 1 | ||
| 1.23 | @ | SPOOL | 1 | ||
| 1.25 | 189381 | Золотник | 1 | ||
| 1.47 | @ | SPOOL | 1 | ||
| 105 | @ | WASHER-RETAINING | 3 | ||
| 115 | 023400 | SCREW-LOCKING | 1 | ||
| 12 | 683301 | стопорная пружина | 2 | ||
| 14 | 838873 | стопорная пружина | 1 | ||
| 18 | 543884 | UNIT WVI | 1 | ||
| 21 | 817718 | стопорная пружина | 1 | ||
| 24 | 817719 | REDUCER | 1 | ||
| 26 | 075094 | Пружина | 1 | ||
| 27 | 004178 | Пружина | 1 | ||
| 28 | 014196 | Пружина | 1 | ||
| 29 | 014321 | Пружина | 1 | ||
| 30 | 025322 | Пружина | 1 | ||
| 31 | 025321 | Пружина | 1 | ||
| 32 | 014197 | Пружина | 1 | ||
| 36 | @ | CIRCLIP | 1 | ||
| 37 | @ | CIRCLIP | 1 | ||
| 4 | 683298 | Втулка (распорная) | 1 | ||
| 40 | 012413 | SCREW-LOCKING | 4 | ||
| 41 | 024740 | SCREW-LOCKING | 3 | ||
| 42 | 024746 | SCREW-LOCKING | 1 | ||
| 43 | 024738 | SCREW-LOCKING | 2 | ||
| 5 | 543881 | SLEEVE LV | 1 | ||
| 72 | 545537 | PEDAL UNIT | 1 |
SEE 2151
|
|
| 82 | 075095 | Пружина | 1 | ||
| 83 | @ | SCREW | 2 | ||
| 84 | @ | SCREW | 1 | ||
| 86 | 543878 | UNIT RV | 1 | ||
| 87 | 543879 | SLEEVE LV | 1 | ||
| 9 | 543882 | SLEEVE LV | 1 | ||
| K18.58 | @ | O-RING | 2 | ||
| K5.55 | @ | O-RING | 1 | ||
| K55 | @ | O-RING | 1 | ||
| K59 | @ | O-RING | 1 | ||
| K64 | @ | RING-THRUST | 1 | ||
| K65 | @ | SEAL-SHAFT | 1 | ||
| K80 | @ | O-RING | 1 | ||
| K86.57 | @ | O-RING | 1 | ||
| K87.51 | @ | O-RING | 1 | ||
| K9.52 | @ | O-RING | 1 | ||
| K9.53 | @ | O-RING | 1 | ||
| K9.54 | @ | O-RING | 1 | ||
| K9.61 | @ | RING-THRUST | 2 | ||
| K9.62 | @ | RING-THRUST | 1 | ||
| K9.63 | @ | RING-THRUST | 2 |
