Каталог запчастей
-
Hyundai
-
HL740-3(-#0847)
- DECALS(KOREA)

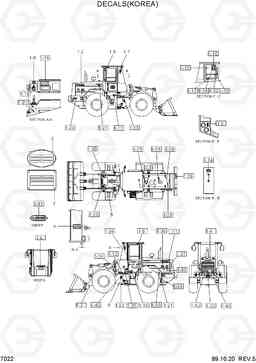

DECALS(KOREA) фронтального погрузчика колесного Hyundai HL740-3(-#0847)
DECALS(KOREA) фронтального погрузчика колесного Hyundai HL740-3(-#0847) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7022
Наименование:DECALS(KOREA)
Версия:
DECALS(KOREA) HL740-3(-#0847)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91L7-00100 | KIT-DECAL | 1 |
KOREA
|
|
| 1 | 91L7-00102 | KIT-DECAL | 1 |
KOREA
|
|
| 1 | 91L7-00103 | KIT-DECAL | 1 |
KOREA
|
|
| 1-1 | 91L7-00030 | SIDE CHARACTER-LH | 1 | ||
| 1-10 | 94L3-00730 | HYD PRESSURE | 1 | ||
| 1-10 | 91L7-00280 | HYD PRESSURE | 1 | ||
| 1-11 | 94L3-00522 | GREASE(A) | 1 | ||
| 1-12 | 94L3-00531 | GREASE(B) | 1 | ||
| 1-13 | 94L3-00541 | GREASE(C) | 1 | ||
| 1-14 | 94L3-00601 | HYD OIL LEVEL | 1 | ||
| 1-15 | 94L3-00920 | ENG/AIR VENT/BRAKE | 1 | ||
| 1-16 | 94L3-00940 | SAFETY/MAX H/REACH | 1 | ||
| 1-17 | 94L3-00560 | ANGLE OF BUCKET | 1 | ||
| 1-18 | 94L3-00231 | SEAT BELT | 1 | ||
| 1-19 | 91L7-00120 | SPECIFICATION | 1 | ||
| 1-2 | 91L7-00040 | SIDE CHARACTER-RH | 1 | ||
| 1-20 | 94L3-00611 | FUELING | 1 | ||
| 1-21 | 91L7-00130 | DRAIN-REMOTE | 1 | ||
| 1-22 | 94L3-00581 | STEERING | 2 | ||
| 1-23 | 91L7-00140 | OVERALL WIDTH | 2 | ||
| 1-24 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-25 | 91E1-15020 | HYD OIL LUB | 1 | ||
| 1-26 | 91E1-16010 | ELECTROLYTE | 1 | ||
| 1-27 | 91E1-16020 | AIR CLEANER | 1 | ||
| 1-28 | 91E1-16030 | Крышка радиатора | 1 | ||
| 1-29 | 91E1-16040 | ANTIFREEZE | 1 | ||
| 1-3 | 94L3-00720 | BUCKET SUPPORTER | 2 | ||
| 1-30 | 94L3-00420 | SLINGING IDEOGRAM | 4 | ||
| 1-31 | 94L3-00860 | SAFETY IDEOGRAM | 1 | ||
| 1-32 | 94L3-01010 | LOGO-FIRE | 1 | ||
| 1-33 | 94L3-01000 | LOGO-HAMMER | 1 | ||
| 1-34 | 91E1-18080 | Наклейка общественного разрешение | 1 | ||
| 1-35 | 91L7-00220 | EXHAUST PIPE | 1 | ||
| 1-36 | 94L3-00690 | SIDE DOOR(A) | 2 | ||
| 1-37 | 94L3-00700 | SIDE DOOR(B) | 2 | ||
| 1-38 | 94L3-00930 | ROPS CAB | 1 | ||
| 1-38 | 91L7-00250 | ROPS CAB | 1 | ||
| 1-39 | 91L7-00080 | ROPS S/NO | 1 | ||
| 1-4 | 94L3-01070 | TRADE MARK-RAD DOOR | 1 | ||
| 1-40 | 94L3-00410 | STEERING WARNING | 2 | ||
| 1-41 | 21L7-00240 | FUSE BOX | 1 | ||
| 1-42 | 91L7-00170 | TRAFFIC RULES-LH | 1 | ||
| 1-43 | 91L7-00180 | TRAFFIC RULES-RH | 1 | ||
| 1-44 | 91L7-00190 | DRAIN-REMOTE | 1 | ||
| 1-45 | 91L7-00210 | DECAL-LOWER DOOR | 2 | ||
| 1-45 | 91L7-00211 | DECAL-LOWER DOOR | 2 | ||
| 1-5 | 94L3-01050 | TRADE MARK-CAB,UP | 2 | ||
| 1-5 | 91L7-00230 | TRADE MARK-CAB,UP | 2 | ||
| 1-6 | 94L3-01060 | TRADE MARK-CAB,FR | 1 | ||
| 1-7 | 91L7-00110 | SERVICE & LUB INST | 1 | ||
| 1-8 | 94L3-00091 | CONTROL IDEOGRAM | 1 | ||
| 1-9 | 94L3-00760 | SERVICE SOCKET | 1 | ||
| 2 | E171-1246 | RIVET | 8 | ||
| 3 | 91E1-26300 | Наклейка шаг протектора | 6 | ||
| R4 | 94L1-00660 | DECAL-SHUT OFF VALVE | 1 |
RIDE CONTROL
|
