REMOTE CONTROL LEVER(3-SPOOL) фронтального погрузчика колесного Hyundai HL740-7S
REMOTE CONTROL LEVER(3-SPOOL) фронтального погрузчика колесного Hyundai HL740-7S со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4071
Наименование:REMOTE CONTROL LEVER(3-SPOOL)
Версия:

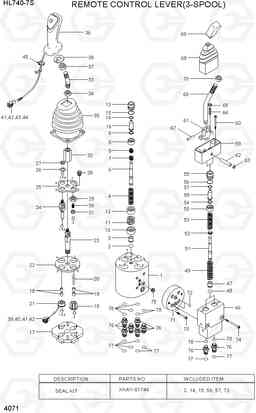

REMOTE CONTROL LEVER(3-SPOOL) HL740-7S
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 31LF-10130 | RCV джойстик 3spool | 1 | ||
| *-1 | XKAY-01726 | SPOOL KIT | 1 |
PORT 1
|
|
| *-2 | XKAY-01939 | SPOOL KIT | 3 |
PORT 2,3,4
|
|
| *-3 | XKAY-01689 | PLUG KIT | 1 | ||
| *-6 | XKAY-01695 | PLATE KIT | 1 | ||
| *-7 | XKAY-01697 | HANDLE KIT | 1 | ||
| *-8 | XKAY-01735 | SPOOL KIT | 1 | ||
| *-9 | XKAY-01736 | PLUG KIT | 1 | ||
| 1 | XKAY-01686 | BODY | 1 | ||
| 10 | XKAY-01727 | SPRING SEAT | 3 | ||
| 11 | XKAY-01728 | Пружина | 3 | ||
| 12 | XKAY-01729 | SPRING SEAT | 3 | ||
| 20 | XKAY-01692 | Щуп | 1 | ||
| 20 | XKAY-01692 | Щуп | 1 | ||
| 22 | XKAY-01693 | Пластина | 1 | ||
| 23 | XKAY-01694 | Совместное сборе | 1 | ||
| 3 | XKAY-00727 | Пробка (заглушка) | 4 | ||
| 32 | XKAY-01730 | Гайка | 1 | ||
| 39 | XKAY-01731 | Картер (корпус) | 1 | ||
| 4 | XKAY-01725 | Пружина | 4 | ||
| 43 | XKAY-01732 | Картер (корпус) | 1 | ||
| 46 | XKAY-01733 | BODY | 1 | ||
| 50 | @ | SPRING SEAT | 2 | ||
| 59 | XKAY-01737 | Крышка | 1 | ||
| 60 | XKAY-00758 | Болт барашек | 2 | ||
| 61 | XKAY-01738 | GUIDE | 1 | ||
| 62 | XKAY-00760 | Палец | 1 | ||
| 63 | XKAY-00763 | Кольцо стопорное | 2 | ||
| 64 | XKAY-01461 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 65 | XKAY-00762 | Гайка | 2 | ||
| 66 | XKAY-01739 | LEVER | 1 | ||
| 67 | XKAY-01463 | Палец | 1 | ||
| 68 | XKAY-01464 | BELLOWS | 1 | ||
| 69 | XKAY-01740 | HANDLE | 1 | ||
| 70 | XKAY-01741 | Гайка | 1 | ||
| 71 | XKAY-01742 | пространство | 1 | ||
| 73 | XKAY-00758 | Болт барашек | 4 | ||
| 74 | XKAY-00743 | комплекта рукоятки RH | 2 | ||
| 75 | XKAY-00880 | Пробка (заглушка) | 6 | ||
| 76 | X500-110001 | Разъем | 8 | ||
| 77 | S621-011001 | Кольцо уплотнительное (О-кольцо) | 8 | ||
| 78 | S631-011004 | Кольцо уплотнительное (О-кольцо) | 8 | ||
| K | XKAY-01744 | Ремкомплект / комплект уплотнений (ремкомплект) | 2 |
SEE ILLUST
|
|
| KN2 | XKAY-00750 | Кольцо уплотнительное (О-кольцо) | 4 | ||
| N*-4 | XKAY-01690 | Комплект стопоров | 1 | ||
| N*-5 | XKAY-01691 | MAGNET KIT | 1 | ||
| N13 | @ | PLUG | 4 | ||
| N14 | @ | ROD SEAL | 4 | ||
| N15 | @ | O-RING | 4 | ||
| N16 | @ | PUSH ROD | 4 | ||
| N17 | XKAY-01940 | Пластина | 1 | ||
| N18 | @ | ROD STOPPER | 1 | ||
| N19 | @ | BUSHING | 8 | ||
| N19 | @ | BUSHING | 8 | ||
| N21 | @ | MAGNET | 3 | ||
| N24 | @ | JOINT ASSY | 3 | ||
| N25 | @ | PLATE | 1 | ||
| N26 | @ | WASHER | AR | ||
| N27 | @ | NUT | 3 | ||
| N28 | @ | PLUG | 1 | ||
| N29 | @ | NUT | 1 | ||
| N30 | @ | SET SCREW | 1 | ||
| N31 | @ | NUT | 1 | ||
| N33 | @ | HANDLE BAR | 1 | ||
| N34 | @ | NUT | 1 | ||
| N35 | @ | BOOT | 1 | ||
| N36 | @ | HANDLE ASSY | 1 | ||
| N37 | @ | NUT | 1 | ||
| N38 | @ | SPRING WASHER | 1 | ||
| N40 | @ | HOLDER-REAR | 1 | ||
| N41 | @ | TERMINAL | 8 | ||
| N42 | @ | SEAL WIRE | 8 | ||
| N44 | @ | HOLDER-REAR | 1 | ||
| N45 | @ | CLIP BAND | 2 | ||
| N5 | @ | SPRING SEAT | 4 | ||
| N51 | XJDH-03741 | Золотник | 2 | ||
| N52 | @ | SPRING SEAT | 2 | ||
| N53 | @ | SPRING | 2 | ||
| N54 | @ | STOPPER | 2 | ||
| N55 | @ | PLUG | 2 | ||
| N56 | @ | O-RING | 2 | ||
| N57 | @ | ROD SEAL | 2 | ||
| N58 | @ | PUSH ROD | 2 | ||
| N6 | XJDH-03741 | Золотник | 4 | ||
| N7 | @ | SPRING SEAT | 4 | ||
| N72 | @ | O-RING | 4 | ||
| N8 | @ | STOPPER | 4 | ||
| N9 | @ | SPRING | 4 |
