STEERING UNIT фронтального погрузчика колесного Hyundai HL740-9
STEERING UNIT фронтального погрузчика колесного Hyundai HL740-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4050
Наименование:STEERING UNIT
Версия:2010.10.31 REV.10K

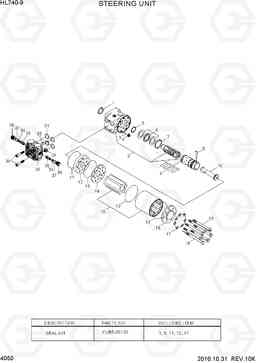

STEERING UNIT HL740-9
Поз. | Код | Наименование | Кол | Прим. | |
---|---|---|---|---|---|
* | 31LN-30010 | STEERING UNIT | 1 | ||
10 | @ | CARDAN SHAFT | 1 | ||
12 | @ | INTERMEDIATE PLATE | 1 | ||
14 | @ | DISTRIBUTOR PLATE | 1 | ||
15 | @ | GEARWHEEL SET | 1 | ||
16 | @ | END COVER | 1 | ||
18 | @ | SCREW WITH PIN | 1 | ||
19 | @ | SCREW | 6 | ||
2 | @ | HOUSING, SPOOL | 1 | ||
3 | @ | BALL | 1 | ||
31 | YUBS-00117 | О комплект колец | 4 | ||
33 | @ | ROLLED PIN | 1 | ||
34 | @ | SCREW | 2 | ||
35 | @ | SHOCK VALVE | 2 | ||
36 | @ | SPRING | 2 | ||
37 | @ | O-RING | 2 | ||
38 | @ | PLUG | 2 | ||
39 | @ | HOUSING, CHECK VALVE | 1 | ||
4 | @ | THREAD BUSHING | 1 | ||
6 | @ | BEARING ASSEMBLY | 1 | ||
7 | @ | RING | 1 | ||
8 | @ | CROSS PIN | 1 | ||
9 | @ | SET OF SPRINGS | 1 | ||
K | YUBS-00102 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
K1 | @ | DUST SEAL RING | 1 | ||
K11 | @ | O-RING | 3 | ||
K13 | @ | O-RING | 1 | ||
K17 | @ | WASHER | 7 | ||
K5 | @ | ROTO RING | 1 |
