DECALS фронтального погрузчика колесного Hyundai HL740TM-3(-#0250)
DECALS фронтального погрузчика колесного Hyundai HL740TM-3(-#0250) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS
Версия:2002. 7.31 REV.7

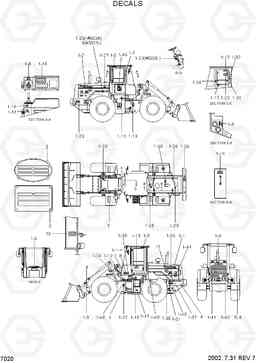

DECALS HL740TM-3(-#0250)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91L7-40010 | DECAL(A)-KIT | 1 | ||
| 1 | 91L7-40011 | DECAL(A)-KIT | 1 | ||
| 1 | 91L7-40012 | DECAL(A)-KIT | 1 | ||
| 1 | 91L7-40013 | DECAL(A)-KIT | 1 | ||
| 1 | 91L7-40014 | DECAL(A)-KIT | 1 | ||
| 1 | 91L7-40015 | DECAL(A)-KIT | 1 | ||
| 1-1 | 91L7-40030 | SIDE CHARACTER-LH | 1 | ||
| 1-10 | 94L3-00450 | HYD PRESSURE | 1 | ||
| 1-10 | 91L7-00270 | HYD PRESSURE | 1 | ||
| 1-11 | 94L3-00122 | GREASE(A) | 1 | ||
| 1-12 | 94L3-00131 | GREASE(B) | 1 | ||
| 1-12 | 91L7-40080 | GREASE(B) | 1 | ||
| 1-13 | 94L3-00141 | GREASE(C) | 1 | ||
| 1-13 | 91L7-40090 | GREASE(C) | 1 | ||
| 1-14 | 94L3-00152 | HYD OIL LEVEL | 1 | ||
| 1-15 | 94L3-00890 | ENGINE AIR VENT-BRAKE | 1 | ||
| 1-16 | 94L3-00900 | SAFETY/MAX H/REACH | 1 | ||
| 1-17 | 94L3-00190 | ANGLE OF BUCKET | 1 | ||
| 1-17 | 91L7-40100 | ANGLE OF BUCKET | 1 | ||
| 1-18 | 94L3-00231 | SEAT BELT | 1 | ||
| 1-19 | 91L7-40060 | SPECIFICATION | 1 | ||
| 1-19 | 91L7-40061 | SPECIFICATION | 1 | ||
| 1-2 | 91L7-40040 | SIDE CHARACTER-RH | 1 | ||
| 1-20 | 94L3-00251 | FUELING | 1 | ||
| 1-21 | 91L7-00070 | REMOTE DRAIN | 1 | ||
| 1-22 | 94L3-00271 | STEERING | 2 | ||
| 1-23 | 94L3-00460 | MUD GUARD | 2 | ||
| 1-23 | 91L7-00290 | STEER COLUMN TILT | 1 | ||
| 1-24 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-25 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-26 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 1-27 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-28 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-29 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-3 | 94L3-00380 | BUCKET SUPPORTER | 2 | ||
| 1-30 | 94L3-00420 | SLINGING IDEOGRAM | 4 | ||
| 1-31 | 94L3-00860 | SAFETY IDEOGRAM | 1 | ||
| 1-32 | 94L3-01030 | LOGO-FIRE | 1 | ||
| 1-33 | 94L3-01020 | LOGO-HAMMER | 1 | ||
| 1-34 | 94L3-00990 | EME ESCAPE | 1 | ||
| 1-34 | 94L3-00991 | EME ESCAPE | 1 | ||
| 1-35 | 94L3-01120 | DECAL-EXHAUST | 1 | ||
| 1-36 | 94L3-00350 | SIDE DOOR(A) | 2 | ||
| 1-37 | 94L3-00360 | SIDE DOOR(B) | 2 | ||
| 1-37 | 94L3-00361 | SIDE DOOR(B) | 2 | ||
| 1-38 | 91L7-00260 | ROPS CAB | 1 | ||
| 1-39 | 91L7-40070 | ROPS S/NO | 1 | ||
| 1-4 | 94L3-01070 | TRADE MARK-RAD DOOR | 1 | ||
| 1-40 | 94L3-00410 | STEERING WARNING | 2 | ||
| 1-41 | 91L7-00150 | TRAFFIC RULES-LH | 1 | ||
| 1-42 | 91L7-00160 | TRAFFIC RULES-RH | 1 | ||
| 1-43 | 91L7-00090 | DRAIN-REMOTE | 1 | ||
| 1-44 | 91L7-00200 | DECAL-LOWER DOOR | 2 | ||
| 1-45 | 94L3-01301 | STEP | 4 | ||
| 1-46 | 94L3-01350 | Фильтр кондиционера | 1 | ||
| 1-5 | 91L7-00230 | TRADE MARK-CAB,UP | 2 | ||
| 1-6 | 94L3-01060 | TRADE MARK-CAB,FR | 1 | ||
| 1-7 | 91L7-40050 | SERVICE & LUB INST | 1 | ||
| 1-8 | 94L3-00091 | CONTROL IDEOGRAM | 1 | ||
| 1-9 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 11 | 91E1-14110 | NAME PLATE | 1 | ||
| 12 | 91E1-14130 | NAME PLATE | 1 |
EUROPE
|
|
| 13 | 91L7-00360 | Наклейка ограничение скорости | 4 |
EUROPE
|
|
| 2 | E171-1246 | RIVET | 8 | ||
| 3 | 91E1-26300 | Наклейка шаг протектора | 6 | ||
| 4 | 21EK-10150 | Светоотражатель (отражатель) боковой | 6 | ||
| 5 | 51EK-52990 | Светоотражатель (отражатель) задний | 2 |
STD
|
|
| 5 | 51EK-52990 | Светоотражатель (отражатель) задний | 2 |
F/MUD GUARD
|
|
| 6 | S401-052002 | Плоская шайба | 2 |
STD
|
|
| 6 | S401-052002 | Плоская шайба | 2 |
F/MUD GUARD
|
|
| 7 | 91E1-23670 | NOISE LEVEL-LWA | 1 | ||
| 8 | 91E1-23110 | NOISE LEVEL-LPA | 1 | ||
| 9 | 94L3-00460 | MUD GUARD | 1 |
OPT
|
|
| R10 | 94L1-00650 | DECAL-SHUT OFF VALVE | 1 |
RIDE CONTROL
|
