Каталог запчастей
-
Hyundai
-
HL740TM-3(#0251-)
- REMOTE CONTROL LEVER(1/2)
REMOTE CONTROL LEVER(1/2) фронтального погрузчика колесного Hyundai HL740TM-3(#0251-)
REMOTE CONTROL LEVER(1/2) фронтального погрузчика колесного Hyundai HL740TM-3(#0251-) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2140
Наименование:REMOTE CONTROL LEVER(1/2)
Версия:

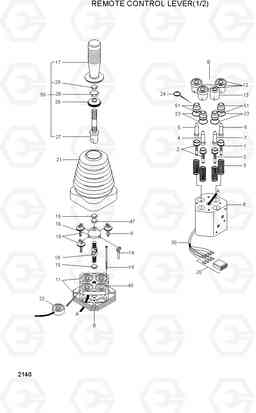

REMOTE CONTROL LEVER(1/2) HL740TM-3(#0251-)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| K | K7200023000 | Ремкомплект / комплект уплотнений (5,23,24) | 1 | ||
| * | 31L7-10141 | REMOTE CONTROL LEVER | 1 | ||
| 1 | G7200022210 | Пружина | 2 | ||
| 10 | G7200004040 | PREFEEL KIT | 2 | ||
| 12 | G7200026001 | PREFEEL CAGE ASSY | 3 | ||
| 13 | P7470000001 | RETAINER-SPINDLE | 1 | ||
| 14 | K7200004110 | SPINDLE | 1 | ||
| 15 | P9298000241 | NUT | 2 | ||
| 16 | P7430000181 | LEVER ASSY | 1 | ||
| 17 | G7750000131 | HANDLE ASSY | 1 | ||
| 18 | P9393000011 | UNIVERSAL JOINT ASSY | 1 | ||
| 19 | P9372000141 | SCREW-SOCKET,HD | 4 | ||
| 2 | G7200022220 | Пружина | 2 | ||
| 20 | G9999800031 | CONNECTOR ASSY | 1 | ||
| 21 | P9258000361 | RUBBER BOOT | 1 | ||
| 22 | P7745000371 | SOLENOID-HOLD | 3 | ||
| 26 | SP6411 | COLLAR-BOOT RETAINER | 1 | ||
| 27 | P7450000211 | HANDLE ADAPTOR | 1 | ||
| 28 | P9298000261 | Гайка | 1 | ||
| 29 | P9298000271 | Гайка | 1 | ||
| 3 | P8501008541 | Пружина | 4 | ||
| 30 | P9687000061 | INSULATION TUBE | 1 | ||
| 4 | G7200023020 | PLUNGER ASSY | 1 | ||
| 47 | P9550000071 | Гайка | 1 | ||
| 49 | P7460000061 | SPACER | 1 | ||
| 50 | K8020610003 | HANDLE ASSY | 1 | ||
| 51 | K7200023160 | PLUNGER GUIDE & SEAL | 1 | ||
| 6 | G7200023040 | PLUNGER ASSY | 1 | ||
| 7 | G7200023040 | PLUNGER ASSY | 1 | ||
| 9 | G7200004040 | PREFEEL KIT | 1 | ||
| K23 | P9101000291 | Кольцо уплотнительное (О-кольцо) | 4 | ||
| K24 | P9658000001 | SEAL-WIPER | 4 | ||
| K5 | G7200023020 | PLUNGER ASSY | 1 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| N11 | @ | KIT-DETENT | 1 | ||
| N8 | @ | BODY KIT | 1 |
