PILOT SUPPLY UNIT(-#0122) фронтального погрузчика колесного Hyundai HL750(-#1000)
PILOT SUPPLY UNIT(-#0122) фронтального погрузчика колесного Hyundai HL750(-#1000) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2060
Наименование:PILOT SUPPLY UNIT(-#0122)
Версия:

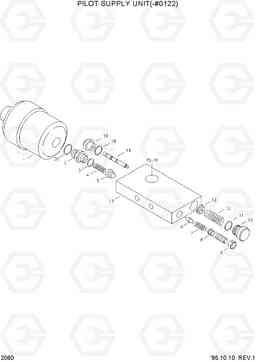

PILOT SUPPLY UNIT(-#0122) HL750(-#1000)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| N* | 31L1-1003 | PILOT SUPPLY UNIT | 1 | ||
| N1 | @ | ACCUMULATOR | 1 | ||
| N10 | @ | PLUG | 1 | ||
| N11 | @ | O-RING | 1 | ||
| N12 | @ | SPRING | 1 | ||
| N13 | @ | RETAINER-SPRING | 1 | ||
| N14 | @ | SPOOL | 1 | ||
| N15 | @ | SPRING | 1 | ||
| N16 | @ | VALVE | 1 | ||
| N17 | @ | HOUSING | 1 | ||
| N18 | @ | O-RING | 1 | ||
| N19 | @ | PLUG | 1 | ||
| N2 | @ | CONNECTOR | 1 | ||
| N20 | @ | O-RING | 1 | ||
| N3 | @ | O-RING | 1 | ||
| N4 | @ | SPRING | 1 | ||
| N5 | @ | VALVE | 1 | ||
| N6 | @ | VALVE | 1 | ||
| N7 | @ | SPRING | 1 | ||
| N8 | @ | PLUG | 1 | ||
| N9 | @ | NUT | 1 |
