REMOTE CONTROL LEVER(2-SPOOL) фронтального погрузчика колесного Hyundai HL750TM
REMOTE CONTROL LEVER(2-SPOOL) фронтального погрузчика колесного Hyundai HL750TM со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2100
Наименование:REMOTE CONTROL LEVER(2-SPOOL)
Версия:

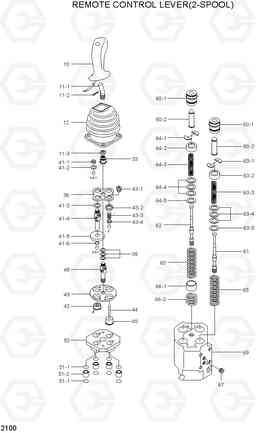

REMOTE CONTROL LEVER(2-SPOOL) HL750TM
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| @ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
| 10 | 21332500 | HANDLE | 1 | ||
| 11 | 21321300 | LEVER KIT | 1 | ||
| 11-1 | @ | LEVER-VENT | 1 | ||
| 11-2 | @ | PIN-LOCKING | 1 | ||
| 11-3 | @ | NUT-HEX | 1 | ||
| 12 | 25920200 | BELLOWS | 1 | ||
| 33 | 19873000 | Гайка | 1 | ||
| 35 | 21329600 | SHIM KIT(0.1,0.2,0.5) | 1 |
0.1,2,5mm
|
|
| 36 | 19954400 | Кронштейн | 1 | ||
| 41 | 21318500 | JOINT KIT | 3 | ||
| 41-1 | @ | NUT-SELF LOCKING | 1 | ||
| 41-2 | @ | WASHER-FRICTION | 1 | ||
| 41-3 | @ | WASHER-FRICTION | 1 | ||
| 41-4 | @ | JOINT | 1 | ||
| 41-5 | @ | ARMATURE | 1 | ||
| 41-6 | @ | RING-SPRING | 1 | ||
| 42 | 39815800 | SOLENOID COMPLETE | 3 | ||
| 43 | 21329700 | PLUNGER KIT | 1 | ||
| 43-1 | @ | SCREW | 1 | ||
| 43-2 | @ | NUT-COUNTER | 1 | ||
| 43-3 | @ | SCREW-PRESS | 1 | ||
| 43-4 | @ | NUT | 1 | ||
| 44 | 25808800 | INTERMEDIARY PLUNGER | 1 | ||
| 45 | 21329900 | PLUNGER GUIDE ASSY | 1 | ||
| 48 | 19952600 | JOINT | 1 | ||
| 49 | 25867900 | Фланец | 1 | ||
| 50 | 25868000 | ELECTRIC BRACKET | 1 | ||
| 51 | 21318700 | BUSHING KIT | 1 | ||
| 51-1 | @ | O-RING | 8 | ||
| 51-2 | @ | BUSHING | 4 | ||
| 60-1 | @ | GUIDE-PLUNGER | 1 | ||
| 60-2 | @ | PLUNGER-FULL | 1 | ||
| 61 | @ | SPOOL | 1 | ||
| 62 | @ | SPOOL | 1 | ||
| 63 | 21317500 | REGULATING SUB ASSY | 1 | ||
| 63-1 | @ | HALF-WASHER | 2 | ||
| 63-2 | @ | PLATE | 1 | ||
| 63-3 | @ | SPRING | 1 | ||
| 63-4 | @ | SHIM(0.1) | 4 |
0.1mm
|
|
| 63-4 | @ | SHIM(0.1) | 3 |
0.2mm
|
|
| 63-4 | @ | SHIM(0.1) | 2 |
0.5mm
|
|
| 63-5 | @ | WASHER | 1 | ||
| 64 | 21317600 | REGULATING SUB ASSY | 3 | ||
| 64-1 | @ | HALF-WASHER | 2 | ||
| 64-2 | @ | PLATE | 1 | ||
| 64-3 | @ | SPRING | 1 | ||
| 64-4 | @ | SHIM(0.1) | 4 |
0.1mm
|
|
| 64-4 | @ | SHIM(0.1) | 3 |
0.2mm
|
|
| 64-4 | @ | SHIM(0.1) | 2 |
0.5mm
|
|
| 64-5 | @ | WASHER | 1 | ||
| 65 | 21319700 | SPRING SET(4 SPRING) | 1 |
4 SPRING
|
|
| 66 | 21319100 | FREFEEL POINT KIT | 1 | ||
| 66-1 | @ | SOCKET | 1 | ||
| 66-2 | @ | SPRING | 1 | ||
| 67 | 21319800 | PLUG KIT(2 PLUG) | 1 |
2 PLUG
|
|
| 69 | @ | BODY | 1 | ||
| N* | 34L3-01760 | RCV | 1 | ||
| N60 | 21333400 | PLUNGER KIT | 4 |
