ELECTRIC GEAR SELECTOR фронтального погрузчика колесного Hyundai HL750TM
ELECTRIC GEAR SELECTOR фронтального погрузчика колесного Hyundai HL750TM со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4032
Наименование:ELECTRIC GEAR SELECTOR
Версия:

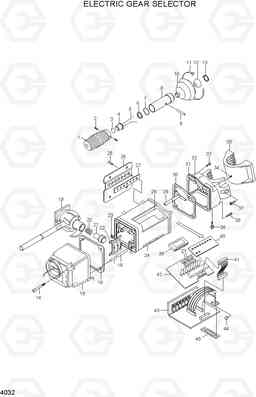

ELECTRIC GEAR SELECTOR HL750TM
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 24L3-20090 | SELECTOR-GEAR | 1 | ||
| 1 | 4202245 | COVER-GRIP LEVER | 1 | ||
| 10 | 4201696 | GAITER | 1 | ||
| 11 | 4202198 | STRAP | 1 | ||
| 12 | 4202448 | RETAINER-BOOT | 1 | ||
| 13 | 5JM-10 | Кольцо стопорное | 1 | ||
| 14 | 4201697 | Болт | 4 | ||
| 15 | 4202494 | HOUSING-GRIP LEVER | 1 | ||
| 16 | 4202498 | SEAL-HSG LVL DISPLAY | 1 | ||
| 18 | 814911 | SHAFT ASSY-FWD REV | 1 | ||
| 19 | 814912 | SHAFT LEVEL ASSY | 1 | ||
| 2 | 4202405 | Болт | 2 | ||
| 20 | 4201634 | SPRING-DETENT | 1 | ||
| 21 | 4201691 | DETENT | 1 | ||
| 22 | 4201619 | PLATE-DETENT | 1 | ||
| 23 | 9JM-32 | RETAINER-SHAFT | 1 | ||
| 24 | 814914 | HSG & FR STICKER ASSY | 1 | ||
| 25 | 4201674 | Болт | 7 | ||
| 26 | 4201651 | SINK-HEAT | 1 | ||
| 27 | 4201679 | Сальник | 1 | ||
| 29 | 814917 | SHAFT ASSY | 1 | ||
| 3 | 4202453 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 30 | 4202499 | SEAL-RR CVR DISPLAY | 1 | ||
| 31 | 4202493 | COVER-GRIP RR | 1 | ||
| 33 | 4201699 | Болт | 1 | ||
| 34 | 4201654 | Болт | 1 | ||
| 35 | 4201625 | ADAPTOR | 1 | ||
| 36 | 4201324 | LOCK-FEMALE SCREW | 2 | ||
| 37 | 4201717 | SCREW-ADAPTOR | 2 | ||
| 38 | 4201698 | Болт | 2 | ||
| 4 | 4202387 | Переключатель | 1 | ||
| 45 | 4202070 | GASKET-D15 CONN | 1 | ||
| 6 | 4202406 | RING-SHIM | 1 | ||
| 7 | 25K-30024 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 8 | 4202246 | BODY-GRIP LEVER | 1 | ||
| 9 | 4201684 | Палец | 1 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | 1 | ||
| N28 | @ | STICKER-FRONT | 1 | ||
| N32 | @ | SPACER-RUBBER | 1 | ||
| N39 | @ | PROGRAM ASSY | 1 | ||
| N40 | @ | SCREEN-LIGHT | 1 | ||
| N41 | @ | CABLE-FLAT | 1 | ||
| N42 | @ | CPU BOARD ASSY | 1 | ||
| N43 | @ | IO BOARD ASSY | 1 | ||
| N44 | @ | SPACER-RUBBER | 1 | ||
| N5 | @ | WIRE | 1 |
