FAN & BRAKE PUMP(-#0487) фронтального погрузчика колесного Hyundai HL760-7A
FAN & BRAKE PUMP(-#0487) фронтального погрузчика колесного Hyundai HL760-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4150
Наименование:FAN & BRAKE PUMP(-#0487)
Версия:2013. 6.30 REV.13F

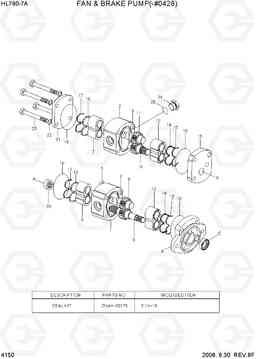

FAN & BRAKE PUMP(-#0487) HL760-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31LC-40400 | Вентиятор и тормозной насос в сборе | 1 | ||
| 1 | @ | BODY | 1 | ||
| 10 | @ | GEAR-DRIVE | 1 | ||
| 11 | @ | GEAR-DRIVEN | 1 | ||
| 12 | @ | BUSHING | 1 | ||
| 13 | @ | BUSHING | 1 | ||
| 19 | @ | PLATE-INTERMEDIATE | 1 | ||
| 2 | @ | BODY | 1 | ||
| 20 | @ | COUPLING | 1 | ||
| 21 | @ | COVER-REAR | 1 | ||
| 22 | @ | WASHER-SPRING | 4 | ||
| 23 | @ | SCREW | 4 | ||
| 24 | @ | PLUG | 1 | ||
| 25 | @ | O-RING | 1 | ||
| 3 | @ | PIN-DOWEL | 6 | ||
| 4 | @ | COVER-FRONT | 1 | ||
| 6 | @ | BUSHING | 1 | ||
| 7 | @ | BUSHING | 1 | ||
| 8 | @ | GEAR-DRIVE | 1 | ||
| 9 | @ | GEAR-DRIVEN | 1 | ||
| K | ZUAH-00175 | Ремкомплект / комплект уплотнений (ремкомплект) | 2 |
SEE ILLUST
|
|
| K14 | @ | SEAL-BUSH LOBE | 2 | ||
| K15 | @ | RING-BACKING | 2 | ||
| K16 | @ | SEAL-BUSH LOBE | 2 | ||
| K17 | @ | RING-BACKING | 2 | ||
| K18 | @ | BODY SEAL | 4 | ||
| K5 | @ | SEAL-SHAFT | 1 |
