TURBOCHARGER PLUMBING фронтального погрузчика колесного Hyundai HL760-9
TURBOCHARGER PLUMBING фронтального погрузчика колесного Hyundai HL760-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:A630
Наименование:TURBOCHARGER PLUMBING
Версия:

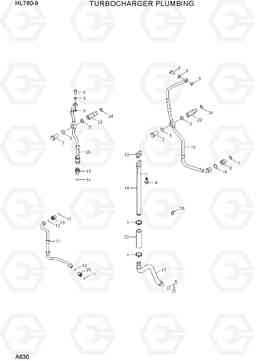

TURBOCHARGER PLUMBING HL760-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| *-1 | XKDE-02121 | CONNECTOR-FEMALE | 1 | ||
| *-2 | XKDE-00477 | UNION-MALE | 1 | ||
| *-3 | XKDE-02125 | UNION-MALE | 1 | ||
| 1 | XKDE-02117 | Зажим | 2 |
TP97505
|
|
| 10 | XKDE-02124 | Прокладка | 1 | ||
| 11 | XKDE-00478 | Кольцо | 1 | ||
| 11 | XKDE-00478 | Кольцо | 1 | ||
| 12 | XKDE-00479 | Кольцо | 1 | ||
| 12 | XKDE-00479 | Кольцо | 1 | ||
| 13 | XKDE-00480 | UNION-MALE | 1 | ||
| 14 | XKDE-02126 | Кольцо | 1 | ||
| 15 | XKDE-02127 | UNION-MALE | 1 | ||
| 16 | XKDE-02128 | Шайба | 1 | ||
| 19 | XKDE-02131 | TUBE-TURBO C/SUPPLY | 1 | ||
| 2 | XKDE-02118 | SCREW-BANJO CONNECTOR | 2 | ||
| 20 | XKDE-02132 | TUBE-TURBO C/DRAIN | 1 | ||
| 24 | XKDE-02137 | SEAL-RECTANGULAR RING | 1 | ||
| 26 | XKDE-00294 | PLUG-EXPANSION | 1 | ||
| 3 | XKDE-02119 | Шайба | 4 | ||
| 4 | XKDE-00322 | Винт шестигранник | 2 | ||
| 5 | XKDE-01418 | Кольцо | 2 | ||
| 6 | XKDE-02120 | SCREW-BANJO CONNECTOR | 2 | ||
| 7 | XKDE-01409 | Кольцо | 1 | ||
| 8 | XKDE-02122 | CONNECTOR-FEMALE | 1 | ||
| 9 | XKDE-02123 | Шайба | 4 | ||
| N*-4 | XKDE-02135 | CONNECTOR-FEMALE | 2 | ||
| N*-5 | XKDE-02138 | UNION-MALE | 1 | ||
| N17 | XKDE-02129 | TUBE-TURBO OIL DRAIN | 1 | ||
| N18 | XKDE-02130 | TUBE-TURBO OIL DRAIN | 1 | ||
| N21 | XKDE-02133 | TUBE-TURBO OIL SUPPLY | 1 | ||
| N22 | XKDE-02134 | HOSE-PLAIN | 1 | ||
| N23 | XKDE-02136 | CONNECTOR-FEMALE | 1 | ||
| N25 | XKDE-00479 | Кольцо | 1 |
