HEATER & EVAPORATOR UNIT(#0154-) фронтального погрузчика колесного Hyundai HL760(-#1000)
HEATER & EVAPORATOR UNIT(#0154-) фронтального погрузчика колесного Hyundai HL760(-#1000) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4097
Наименование:HEATER & EVAPORATOR UNIT(#0154-)
Версия:2007. 4.30 REV.7D

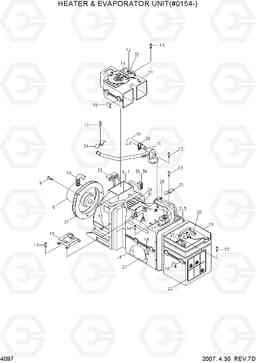

HEATER & EVAPORATOR UNIT(#0154-) HL760(-#1000)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 14L1-01230 | EVAP & HEATER UNIT | 1 | ||
| 1 | AM12100400-0 | CASE-LOW | 1 | ||
| 10 | 3AH-0771 | HOSE-COOLING | 1 | ||
| 11 | AM14001000-1 | DAMP UNIT ASSY | 1 | ||
| 12 | AM50200200-1 | MOTOR ACT-MODE | 1 | ||
| 13 | K500531 | Болт | 18 | ||
| 14 | AM53300200-4 | ROD-CAM | 1 | ||
| 15 | AM50300100-1 | TEMP D/ACT ASSY | 1 | ||
| 16 | AM30000600-2 | Клапан в сборе | 1 | ||
| 17 | A110350101-3 | Термостат | 1 | ||
| 18 | 4AH-0688 | Клип дело | 8 | ||
| 19 | AM13000200-1 | INTAKE UNIT ASSY | 1 | ||
| 2 | AM11100401-0 | CASE-UPPER | 1 | ||
| 20 | AM50400100-1 | INTAKE D/ACT ASSY | 1 | ||
| 21 | AM86000400-2 | RESISTOR ASSY | 1 | ||
| 22 | AM88000300-2 | AIR FILTER-REFRESH | 1 | ||
| 23 | K500533 | Болт | 2 | ||
| 24 | 3AH-0770 | Трубный зажим | 1 | ||
| 25 | AM81400200-3 | CLAMP-EVAP PIPE | 1 | ||
| 26 | AM20002100-2 | HEATER RAD SET | 1 | ||
| 27 | A110055001-0 | EVAP CORE ASSY | 1 | ||
| 29 | 4AH-0929 | CLAMP ASSY-HOSE | 1 | ||
| 30 | 3AH-1007 | HOSE-WATER | 1 | ||
| 31 | A840003301-4 | SENSOR-CLIP TEMP | 1 | ||
| 32 | 3AH-0705 | CLAMP-ROD | 2 | ||
| 33 | A810001001-3 | Реле | 2 | ||
| 34 | K500523 | Болт | 2 | ||
| 35 | AM83301500-1 | HARNESS-JUMP WIRE | 1 | ||
| 36 | 4AH-0643 | Держатель провода | 6 | ||
| 37 | 3AH-0774 | PACKING-MOTOR | 1 | ||
| 4 | AM75000800-1 | INSULATION-LOW | 1 | ||
| 5 | AM75000700-1 | INSULATION-UPPER | 1 | ||
| 6 | AM13100100-0 | Дело вентилятор | 1 | ||
| 7 | AM75000900-0 | INSULATION-BLOWER | 1 | ||
| 8 | AM60001700-2 | Мотор отопителя и вентилятор в сборе | 1 | ||
| 9 | 4AH-0886 | Болт | 3 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| N28 | A113055401-2 | PIPE ASSY-OUTLET | 1 |
